Product Overview

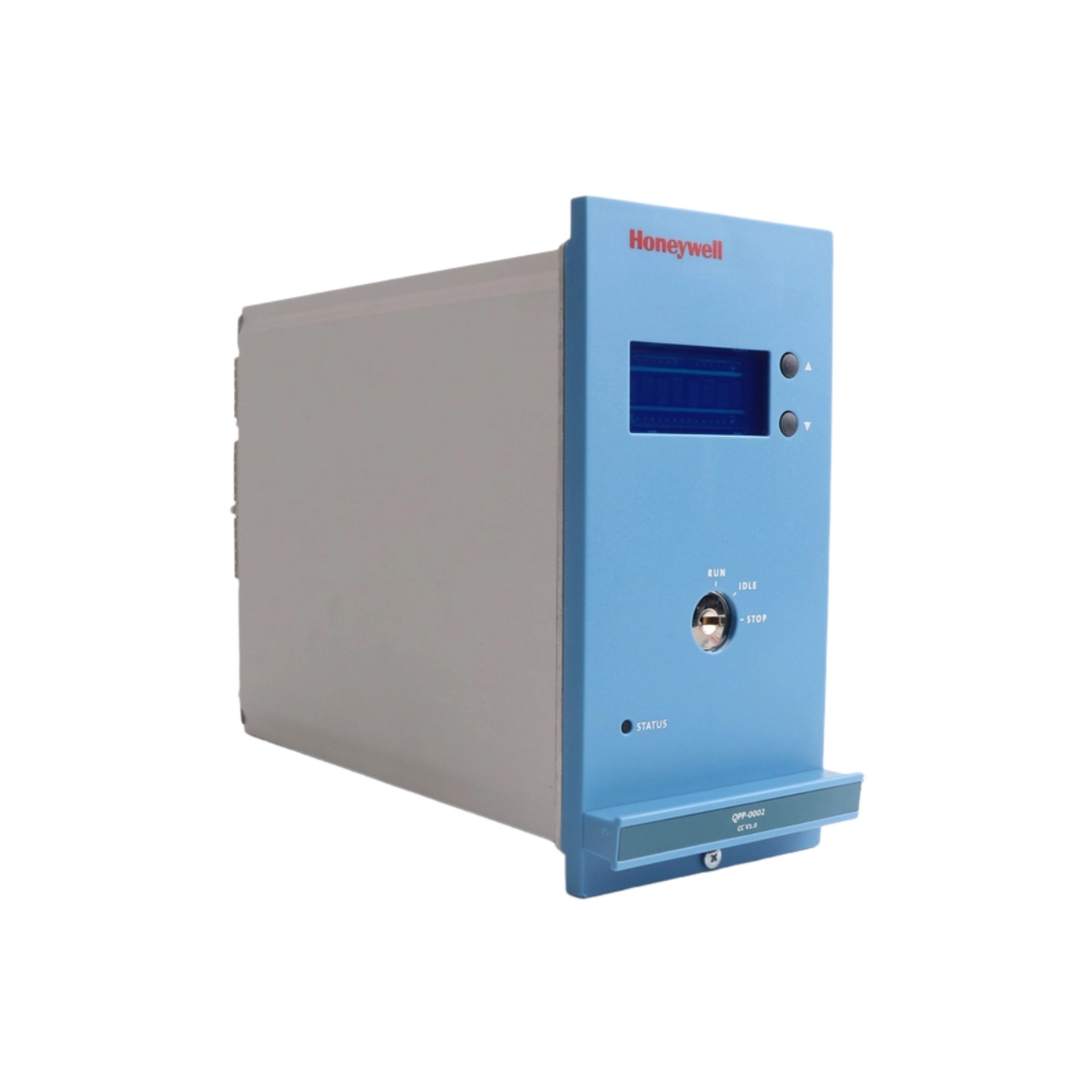

The Honeywell FC-QPP-0002 CC V1.0 is a Quad Processor Pack with conformal coating, designed for high-reliability industrial control systems.
It provides stable performance under wide temperature and humidity ranges and meets multiple safety and quality standards.

Key Features

• Type Number: FC-QPP-0002 CC V1.0
• Conformal Coated Module: Protects against moisture and contaminants.
• Operating Temperature: -5°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 10% to 95% (non-condensing)
• Approvals: CE, UL, CSA, TUV, FM
• Power Supply: 24 VDC and 5 VDC compatible

Electrical Specifications

• 24 V Supply: 24 VDC ±15–30%, max. current 25 mA
• 5 V Supply: 5 VDC ±5%, max. current 1.2 A
• +24 V_sd Output: 15–31 VDC, approx. 1.1 kΩ output resistance, short-circuit proof
• SD Input: High 15–32 VDC, Low <4 V, approx. 8 mA at 24 VDC
• WDout Output: 750 mA per output

Physical Dimensions & Weight

• Dimensions (H × W × D): 176 × 88.5 × 212 mm (6.93 × 3.48 × 8.35 in)
• Weight: 1.3 kg

The FC-QPP-0002 CC V1.0 ensures robust and reliable operation for mission-critical applications, offering protection, flexibility, and compliance with international industrial standards.
