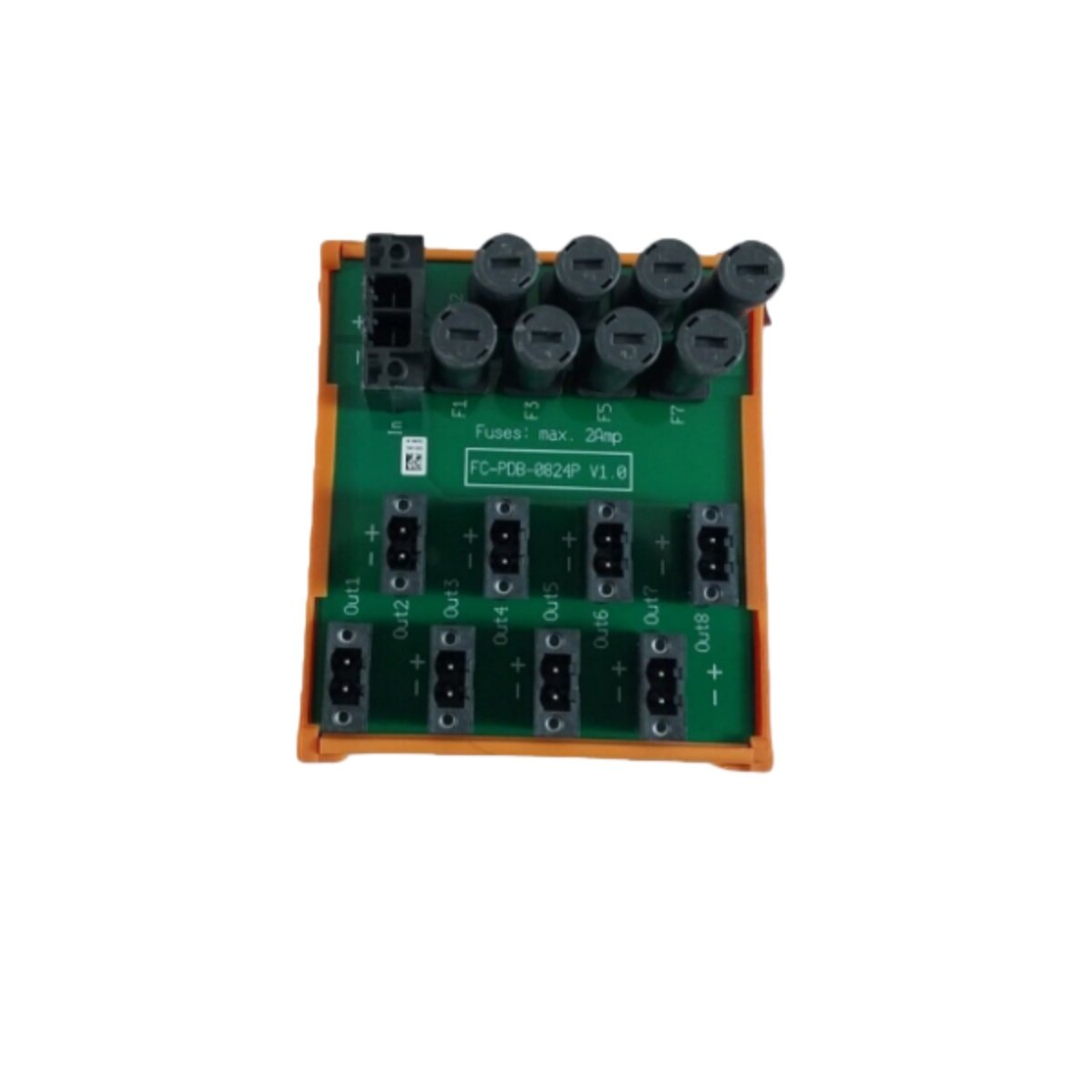

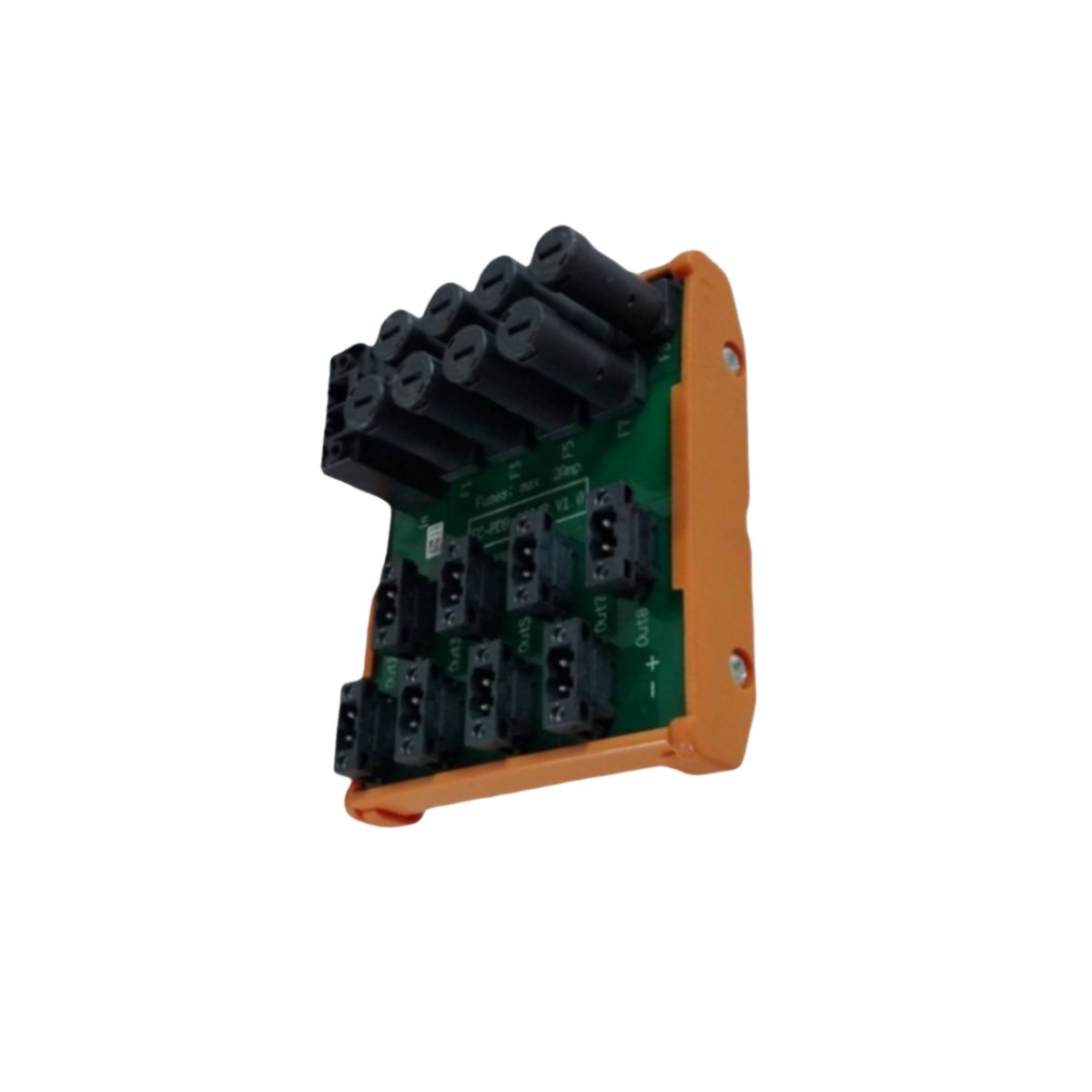

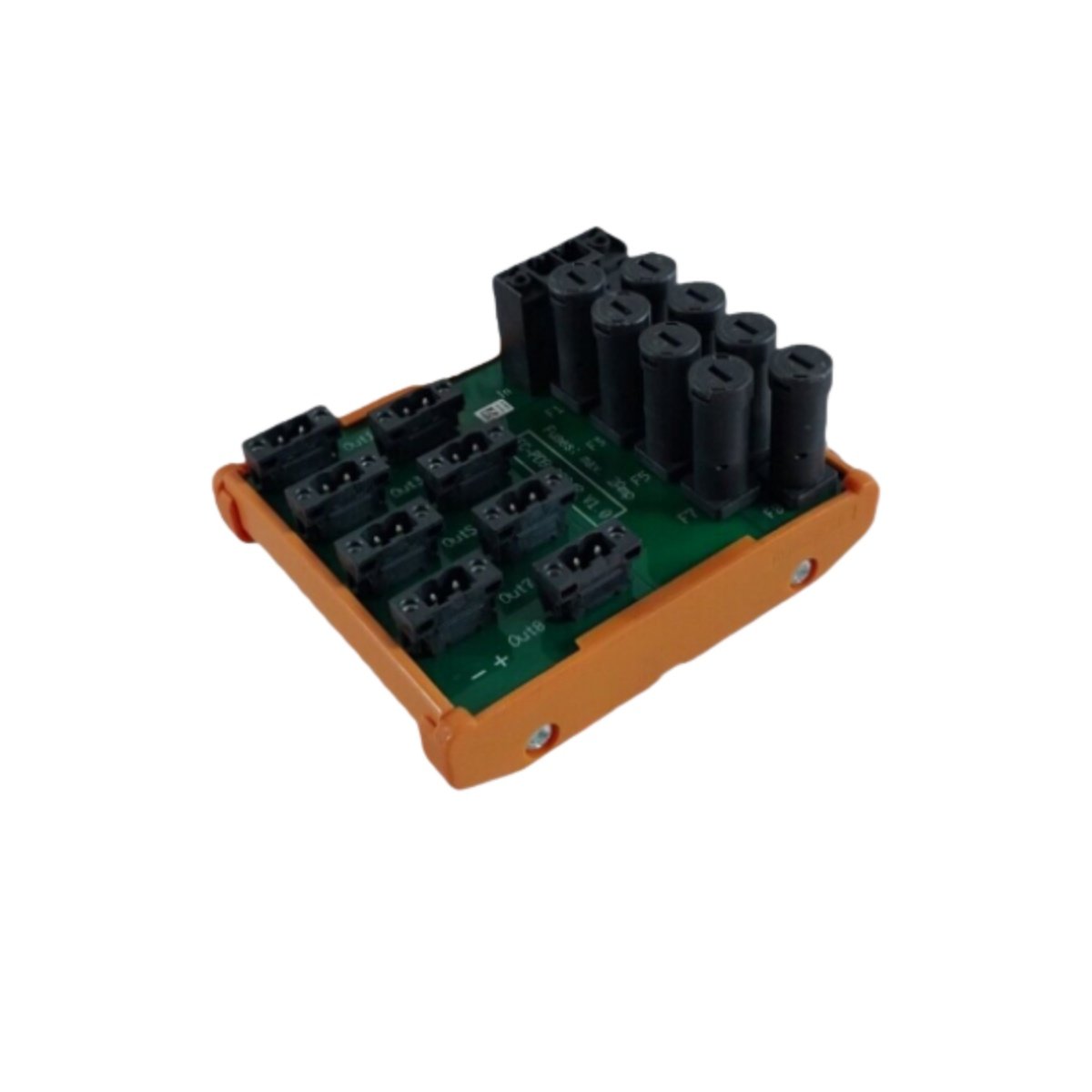

The Honeywell FC-PDB-0824P provides centralized and protected 24VDC power for automation systems. This dedicated power distribution board efficiently routes power to multiple sensors, relays, and I/O modules. Consequently, it streamines cabinet wiring and enhances overall system reliability.
Core Functionality and Electrical Protection
This board accepts a single 24VDC input and distributes it across eight individually fused outputs. Moreover, each output channel features a dedicated slow-acting fuse rated for a maximum of 2 amps. Therefore, it provides essential overcurrent protection for sensitive field devices and downstream circuits. The board’s robust design ensures stable operation across a wide temperature range.
Detailed Technical Specifications
The table below details the electrical, mechanical, and safety parameters of this distribution board.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FC-PDB-0824P |
| Product Type | Power Distribution Board |
| Primary Input Voltage | 24 V DC |
| Regulated Output Voltage | 24 V DC |
| Number of Output Channels | 8 |
| Current Rating per Output | 2 A |
| Total Maximum Output Current | 16 A (Theoretical, fused per channel) |
| Fuse Type per Channel | Slow-Acting (T), 5 x 20 mm cartridge |
| Maximum Fuse Rating | 2 A T (Per channel) |
| Input Connector | 2-pole header, Weidmuller BVZ 7.62/02F SW |
| Field Output Connector | 2-pole socket block, Weidmuller BLZ 5.08/2F SN SW |
| Operating Temperature | -40°C to +70°C |
| Mounting Style | DIN Rail (35mm) |
| Safety Approvals | CE, UL, TÜV, CSA (Pending) |
| Typical Applications | Distributing power to valve solenoids, sensor loops, relay coils |
| Isolation | Input-to-output isolation (standard in design) |
| Board Dimensions | Compact DIN-rail form factor (est. ~80mm W) |
| Board Weight | Approx. 0.2 kg |
Integration and Application Benefits
The modular DIN-rail mounting allows for flexible and organized cabinet layouts. Furthermore, the use of standard Weidmuller connectors ensures reliable and secure wiring connections. This board is ideal for creating clean and protected power branches within a control panel. It complements safety systems by providing reliable power to monitoring devices like the RMS-TSG-TZ-C Static Trip.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 30 × 313 × 278 mm |
