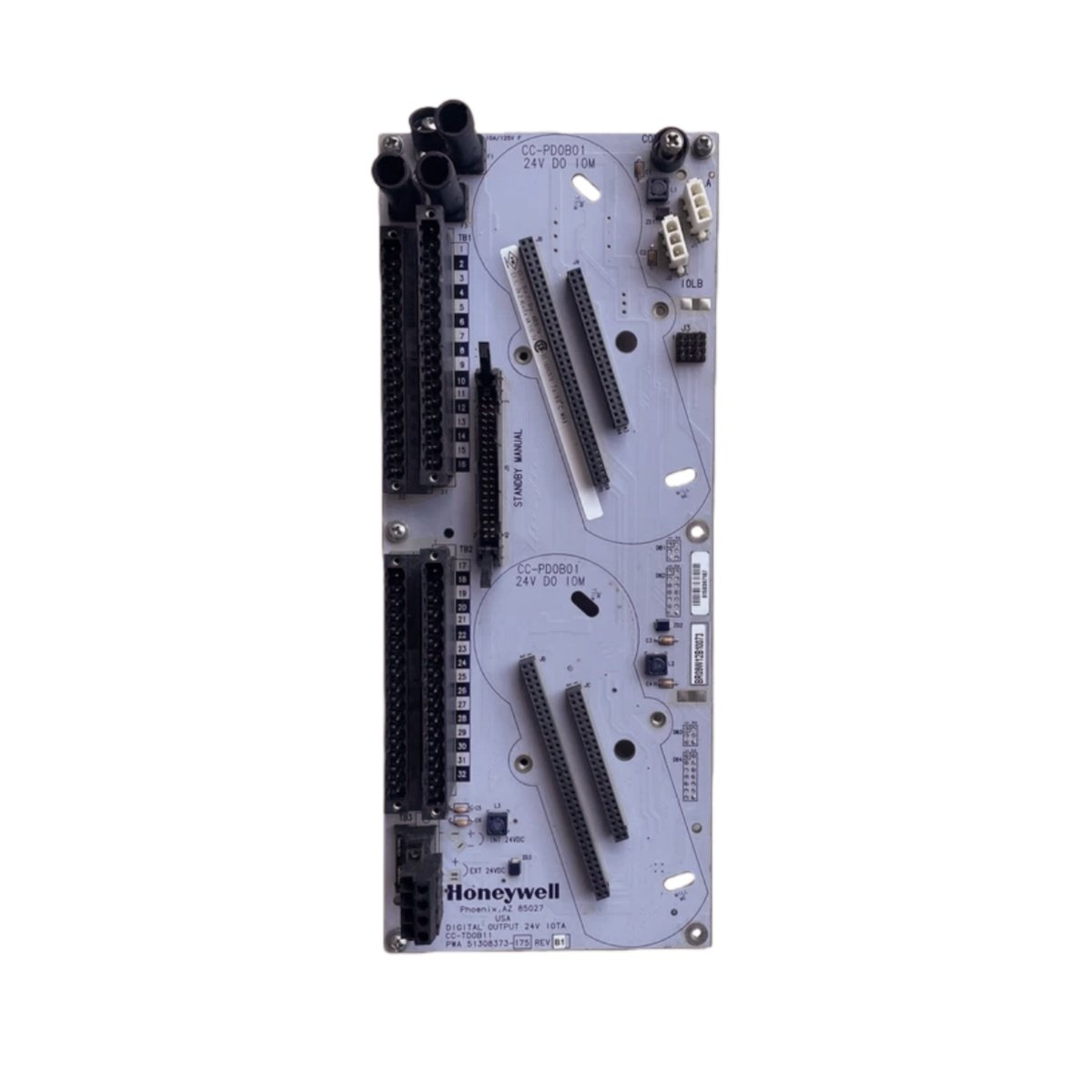

The Honeywell CC-TDOB11 functions as a high-density digital output module within the Honeywell Series C I/O family. This unit provides 32 channels of 24V DC output for controlling field devices in industrial automation applications. Consequently, it delivers reliable and high-performance switching for solenoids, indicators, and actuator control.

Core Technical Specifications

We engineered the Honeywell CC-TDOB11 with redundant configuration support for critical applications requiring maximum uptime. The table below details its essential physical and electronic parameters:

High-Density 32-Channel Output Capability

This module provides 32 independent digital output channels in a single, compact Series C form factor. You can directly control a wide array of 24V DC field devices without external relay banks. Therefore, the Honeywell CC-TDOB11 maximizes I/O density while minimizing cabinet space requirements.

Redundant Configuration for Critical Applications

The CC-TDOB11 supports redundant I/O configurations, allowing two modules to operate in parallel. If the primary module fails, the secondary automatically maintains control without process interruption. Consequently, this redundancy feature ensures continuous operation in high-availability applications.

Seamless Series C and Experion Integration

You can install this digital output module directly into any Honeywell Series C I/O rack alongside other modules. It communicates seamlessly with Experion PKS controllers via the Series C backplane. As a result, system engineers can configure and monitor all 32 channels through standard engineering tools.

Robust 24V DC Outputs for Industrial Control

Each of the 32 channels provides a regulated 24V DC output suitable for driving industrial loads. The outputs feature built-in protection against short circuits and overcurrent conditions. Hence, the module protects both itself and field wiring from damage during fault events.

Visual Status Indication for Quick Diagnostics

Front-panel LED indicators provide immediate visual feedback on the status of each output channel. Technicians can quickly verify which outputs are active without needing a programming terminal. This feature greatly speeds up troubleshooting during commissioning and maintenance.

Compact Design for Space-Constrained Cabinets

The Honeywell CC-TDOB11 features a compact footprint consistent with the Series C modular design. It occupies a single slot position, allowing high channel counts in a small area. Therefore, it suits both new installations and system expansions where cabinet space is limited.

Reliable Performance in Industrial Environments

Honeywell designed this output module for long-term reliability in typical industrial control room environments. It operates within standard Series C temperature ranges and withstands industrial vibration. Its rugged construction ensures consistent performance for years of continuous operation.
