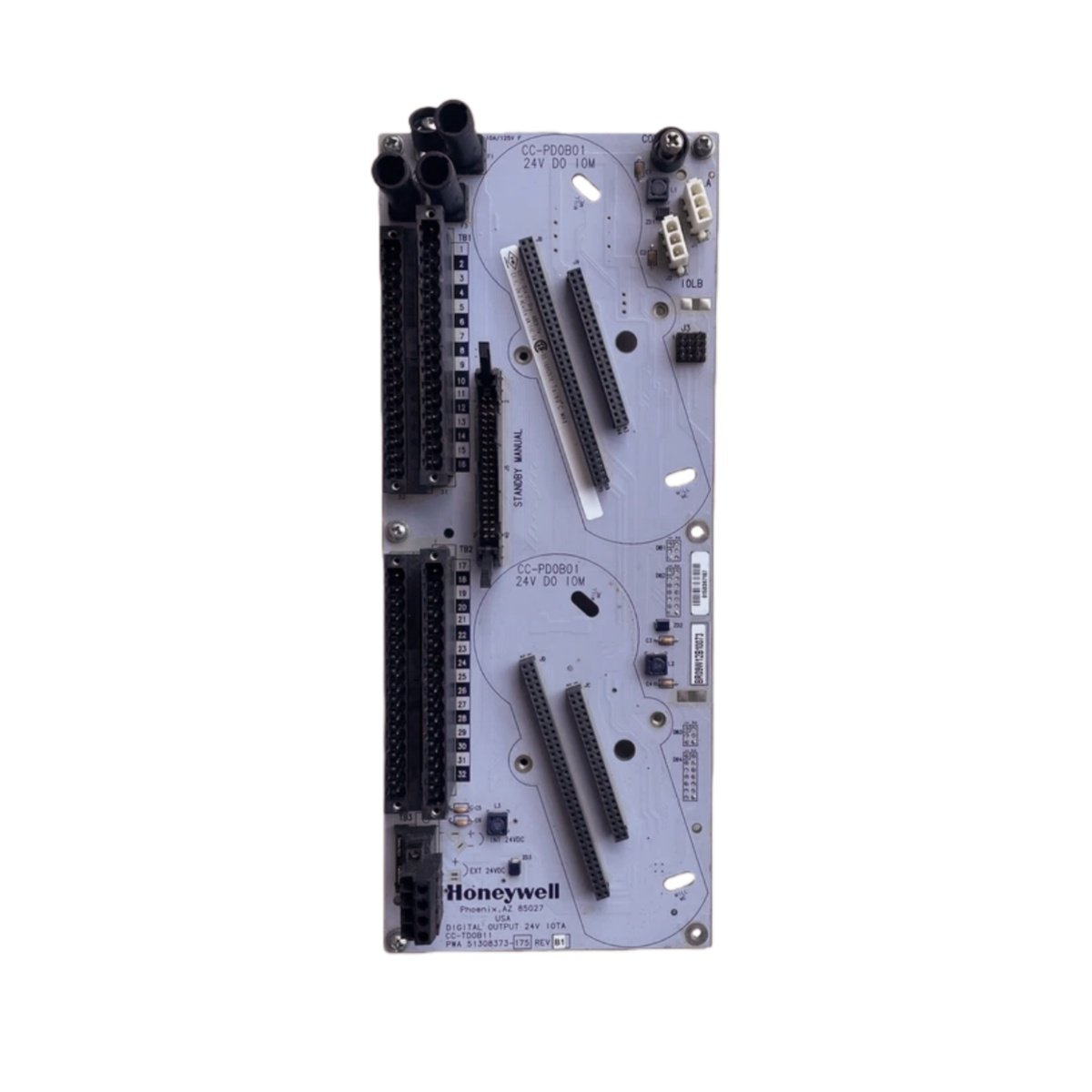

The Honeywell CC-TDOB11 51308373-175 serves as a fundamental mounting and interconnection platform for control system I/O modules. We engineer this baseplate board to provide mechanical support and electrical connectivity for multiple plug-in units. Its robust construction ensures reliable signal transmission between field wiring and processor interfaces. This component forms the physical backbone for organizing and securing your automation system’s input/output infrastructure.

Key Features and Functional Benefits

This baseplate board delivers exceptional value through its precision-machined card guides and gold-plated connector contacts. The Honeywell CC-TDOB11 51308373-175 accepts standard Honeywell series I/O modules in a compact, space-saving arrangement. Consequently, system integrators can achieve high channel density while maintaining organized wiring and easy module access. Furthermore, the board’s rigid construction minimizes vibration effects on sensitive electronic connections in industrial environments.

Detailed Technical Specifications

Manufacturers construct the Honeywell CC-TDOB11 51308373-175 using flame-retardant PCB material with heavy copper traces for reliability. The baseplate measures approximately 300 millimeters in width, 200 millimeters in depth, and 50 millimeters in height including connectors. Its integrated mounting holes accept standard DIN rail clips or direct panel mounting hardware for installation flexibility. Additionally, the board incorporates keying features to prevent incorrect module insertion during field replacement.

Mechanical Design and Physical Attributes

The CC-TDOB11 51308373-175 baseplate features a robust mechanical design suitable for continuous industrial use. Its rigid PCB construction resists flexing during module insertion and removal cycles over many years. The board includes integrated card guides that align each module precisely with its mating connector. Therefore, this design ensures consistent contact pressure and reliable electrical connections throughout the system’s operational life.

Electrical Interface and Signal Routing

Engineers designed the Honeywell CC-TDOB11 51308373-175 with carefully routed traces for clean signal transmission. The backplane distributes power and communication buses to all connected I/O modules simultaneously. Each module position connects to a dedicated field wiring terminal block for direct sensor and actuator connections. Consequently, this architecture separates field wiring from control logic while maintaining signal integrity.

Module Compatibility and System Integration

The CC-TDOB11 51308373-175 accepts a wide range of Honeywell series digital and analog I/O modules. You can mix input and output modules in any configuration to match your specific application requirements. The baseplate automatically routes appropriate backplane signals to each module based on its type. This flexibility allows system designers to optimize I/O allocation without hardware limitations.

Installation Guidelines and Best Practices

Proper installation of the Honeywell CC-TDOB11 51308373-175 ensures long-term reliability for your control system. First, mount the baseplate securely on DIN rail or panel using all provided mounting points. Next, install I/O modules by sliding them gently into the card guides until fully seated. Finally, connect field wiring to the appropriate terminal blocks following your system documentation and wiring diagrams.

Maintain System Integrity with Genuine Honeywell Components

Choosing the genuine Honeywell CC-TDOB11 51308373-175 guarantees proper fit and function for your I/O system. Aftermarket baseplates may have incorrect keying or inferior connector plating affecting long-term reliability. Therefore, always source this baseplate board from authorized Honeywell distributors and partners. For complete automation solutions, explore our selection of Honeywell controllers and I/O modules similar to the RMS-TSG-TZ-C Static Trip Unit.
