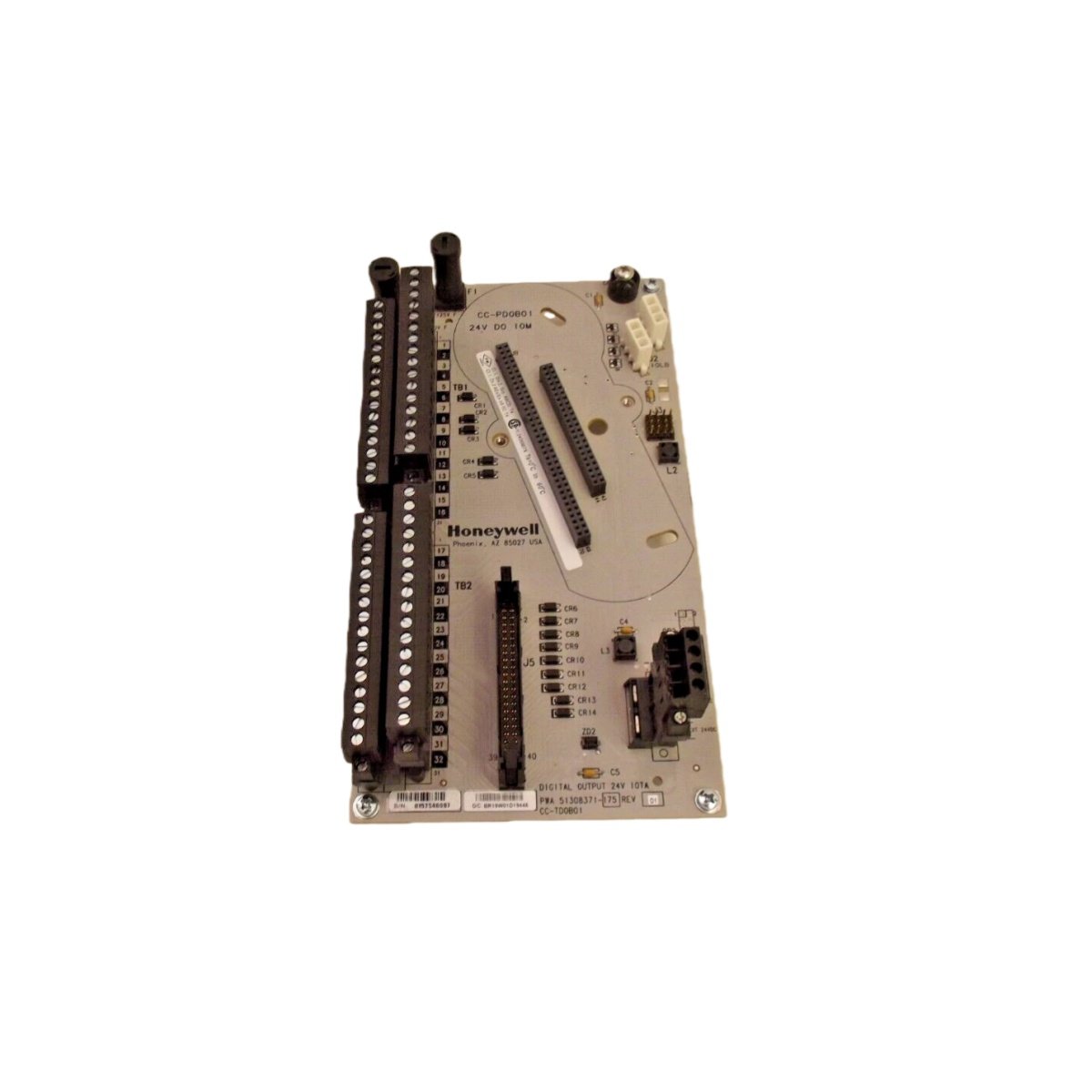

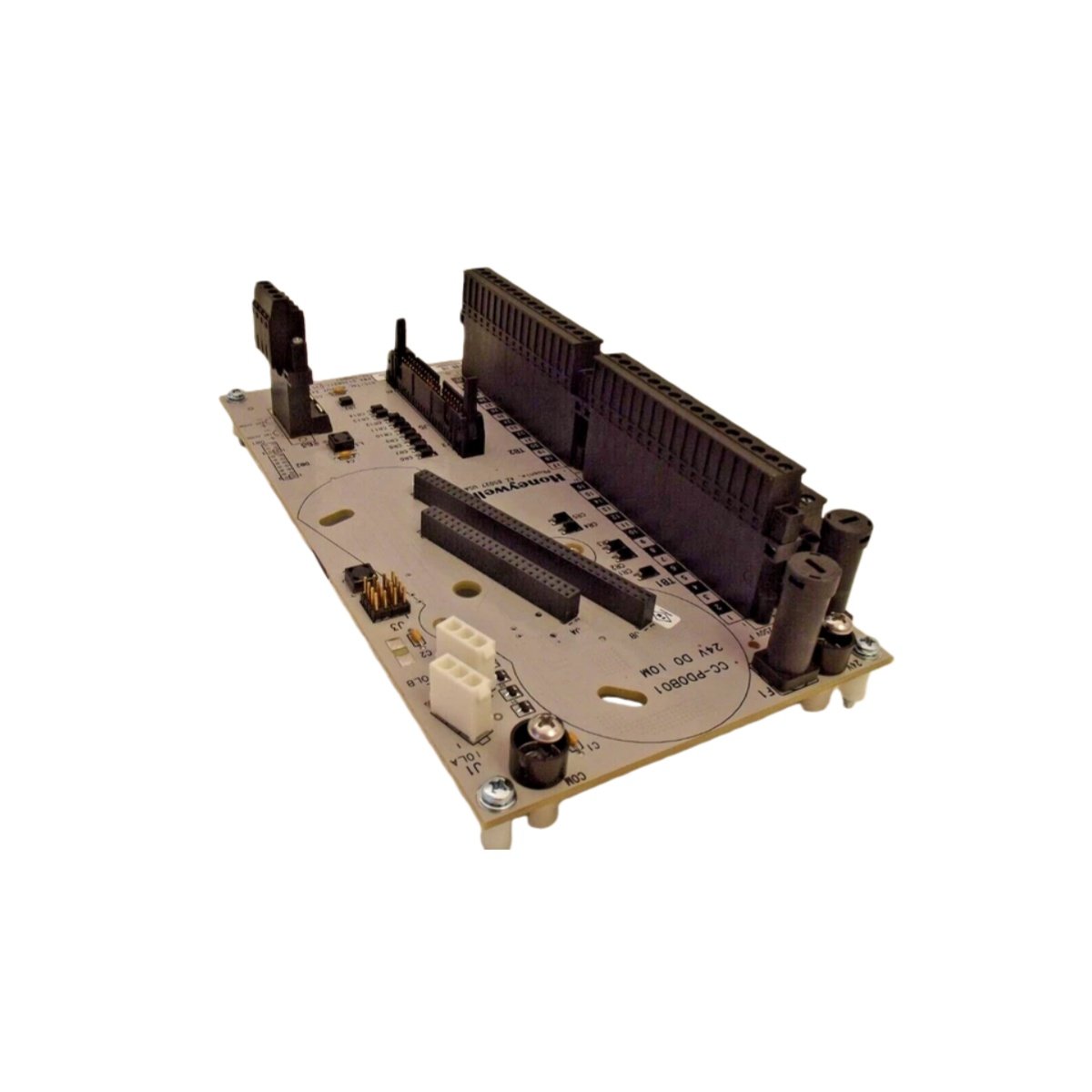

The Honeywell CC-TDOB01 51308371-175 delivers high-density discrete control for demanding automation systems. As a core component, it integrates directly into the Honeywell Experion Series C I/O backplane. This module reliably operates industrial devices like solenoid valves, pumps, and alarm indicators. Consequently, it provides a robust and unified control solution for complex process environments.
Core Design and Electrical Specifications
Engineers select this module for its compact, DIN-rail mountable form factor, saving valuable panel space. Specifically, it offers 32 independent Form C (SPDT) dry contact relay outputs for maximum flexibility. Each channel supports a nominal 24VDC output with a 0.5A maximum current rating per point. Furthermore, 1500V isolation between channels and the internal logic enhances system safety and reliability.
Comprehensive Technical Parameters
The table below details the critical specifications for the Honeywell CC-TDOB01 module.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | CC-TDOB01 51308371-175 |
| Product Type | Digital Output Module (DOM) with Backplane |
| Compatible System | Honeywell Experion Series C I/O |
| Number of Channels | 32 |
| Output Type | Form C Dry Contact (SPDT Relay) |
| Output Voltage | 24 VDC Nominal |
| Output Current | 0.5 A Maximum per Channel |
| Isolation Rating | 1500 V (Channels to Power Supply) |
| Mounting | DIN Rail |
| Key Feature | Seamless Backplane Integration |
Targeted Industrial Applications
This Honeywell module is ideal for applications requiring numerous precise on/off commands. It is commonly deployed in manufacturing assembly lines, utility control panels, and batch processing. Moreover, its reliability makes it suitable for harsh environments in oil & gas and chemical plants. System integrators consistently choose it to consolidate control points and streamline cabinet design.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 120 × 80 × 50 mm |
