Product Description:

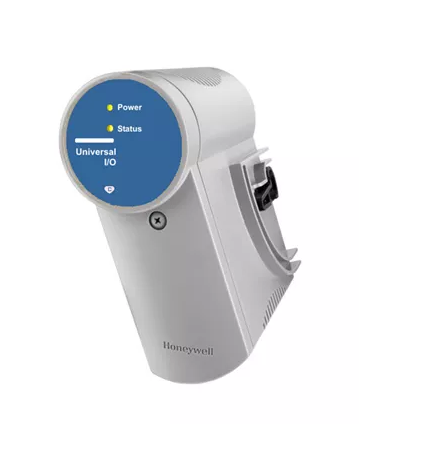

The Honeywell CC-TDIL01 51308386-175 Digital Input Module interfaces 24VDC digital input signals to control systems, supporting high-performance operations in industrial environments. This module is equipped with extensive diagnostics to ensure data integrity, with Open Wire Detection (OWD) for added reliability.

Key Features:

• Diagnostics: Extensive internal diagnostics for data integrity, including Open Wire Detection (OWD) capability.
• Redundancy: Optional redundancy for enhanced reliability.
• Power: Internal or external field power selection with onboard excitation power—no additional marshalling power required.
• Signal Indication: Supports both direct and reverse input indication.
• Isolation: Provides galvanic isolation to protect against electrical faults.

Technical Specifications:

Applications:

The CC-TDIL01 module is designed for a range of industrial automation applications, offering precise and reliable integration of digital input signals in control systems.

FAQ

• Is the Honeywell CC-TDIL01 module compatible with all industrial control systems?
  Yes, this module is compatible with systems requiring a 24VDC input signal and supports both non-redundant and redundant configurations.
• What is the recommended operating voltage for the CC-TDIL01?
  The module operates with a DC input voltage range of 18 to 30 VDC.
• Does this module support redundancy?
  Yes, the CC-TDIL01 offers an optional redundant version for increased reliability in mission-critical applications.
• What type of diagnostic features does the CC-TDIL01 offer?
  This module provides extensive diagnostics, including Open Wire Detection (OWD), to ensure the integrity of the system and prevent incorrect control actions.
