Delivering Deterministic Control and Real-Time Data Processing

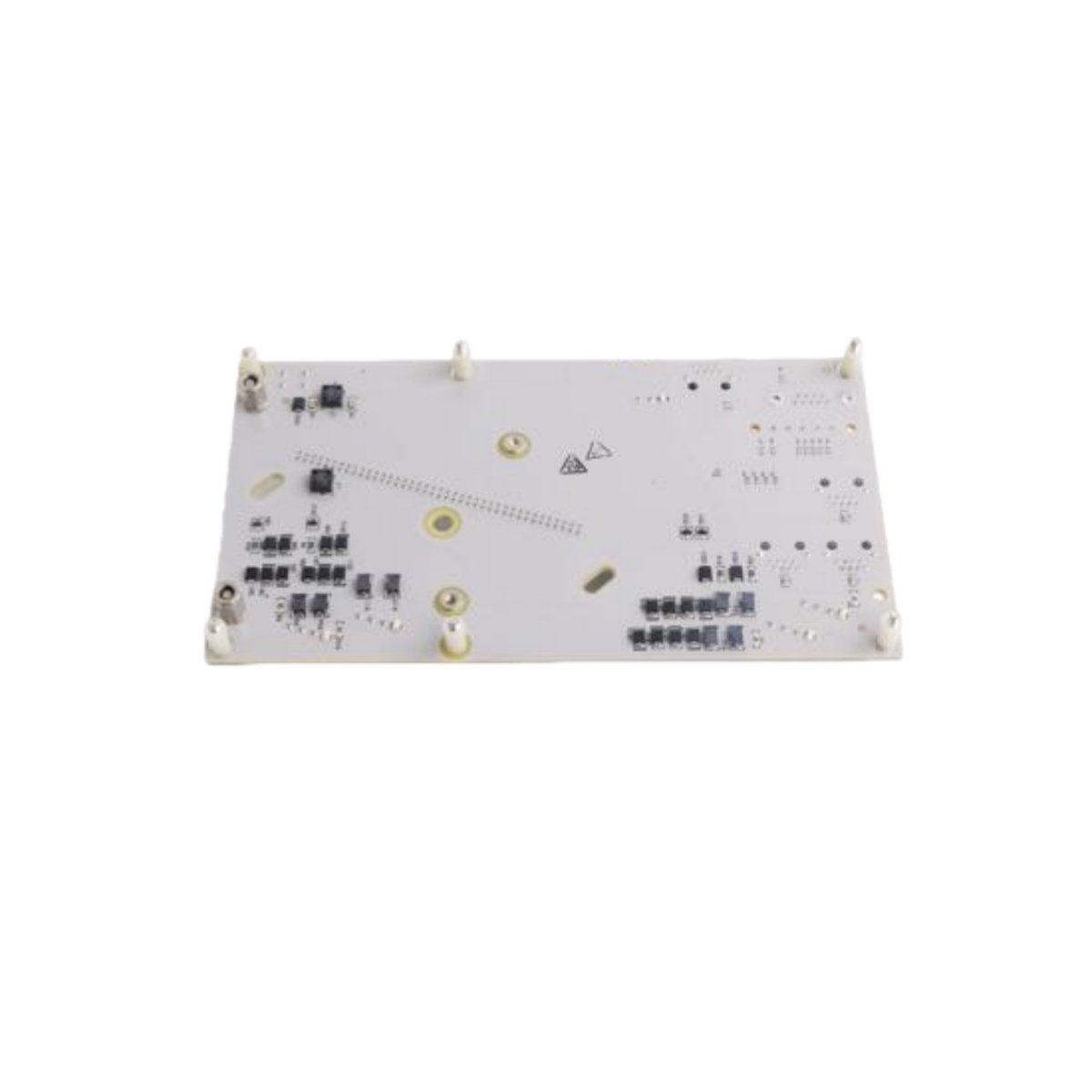

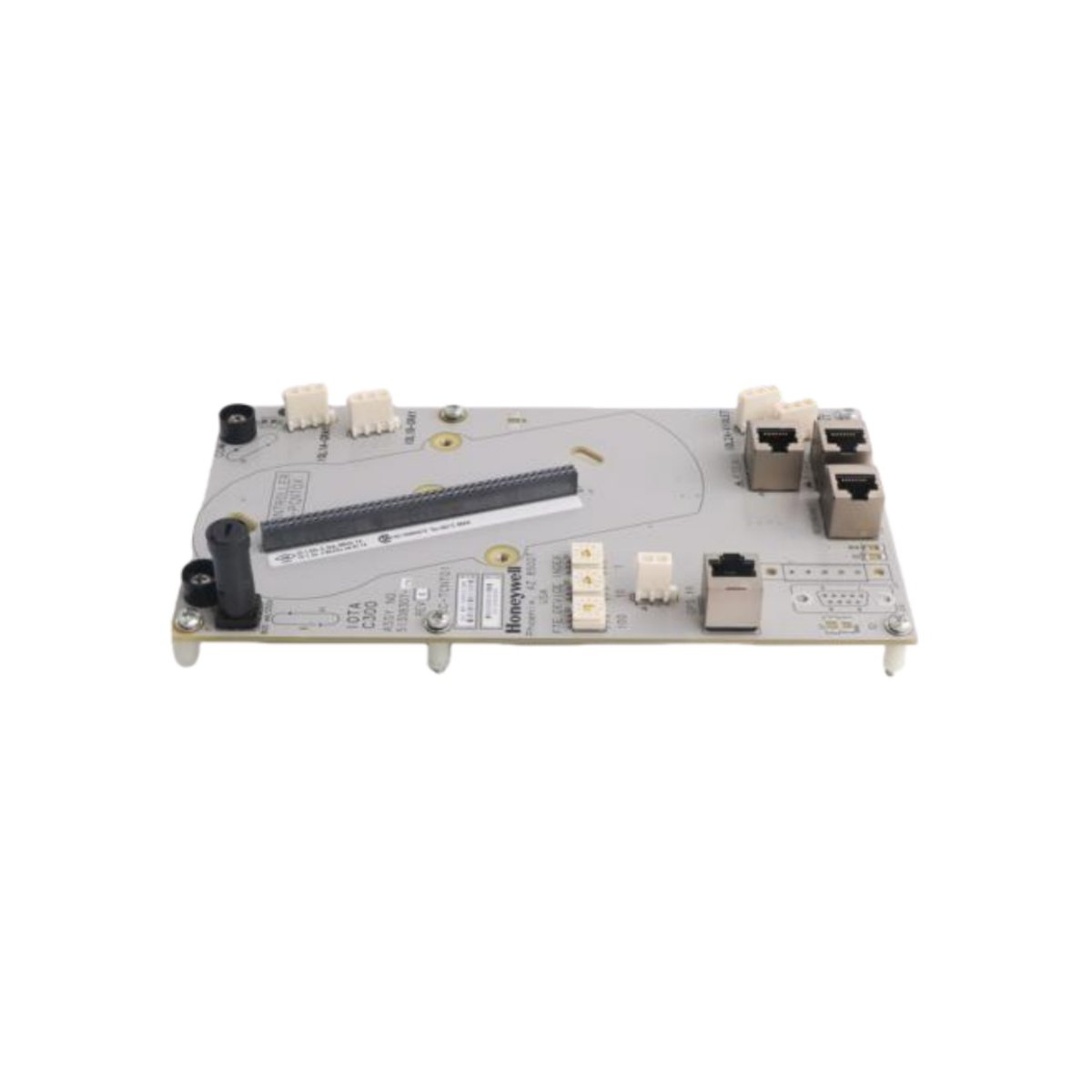

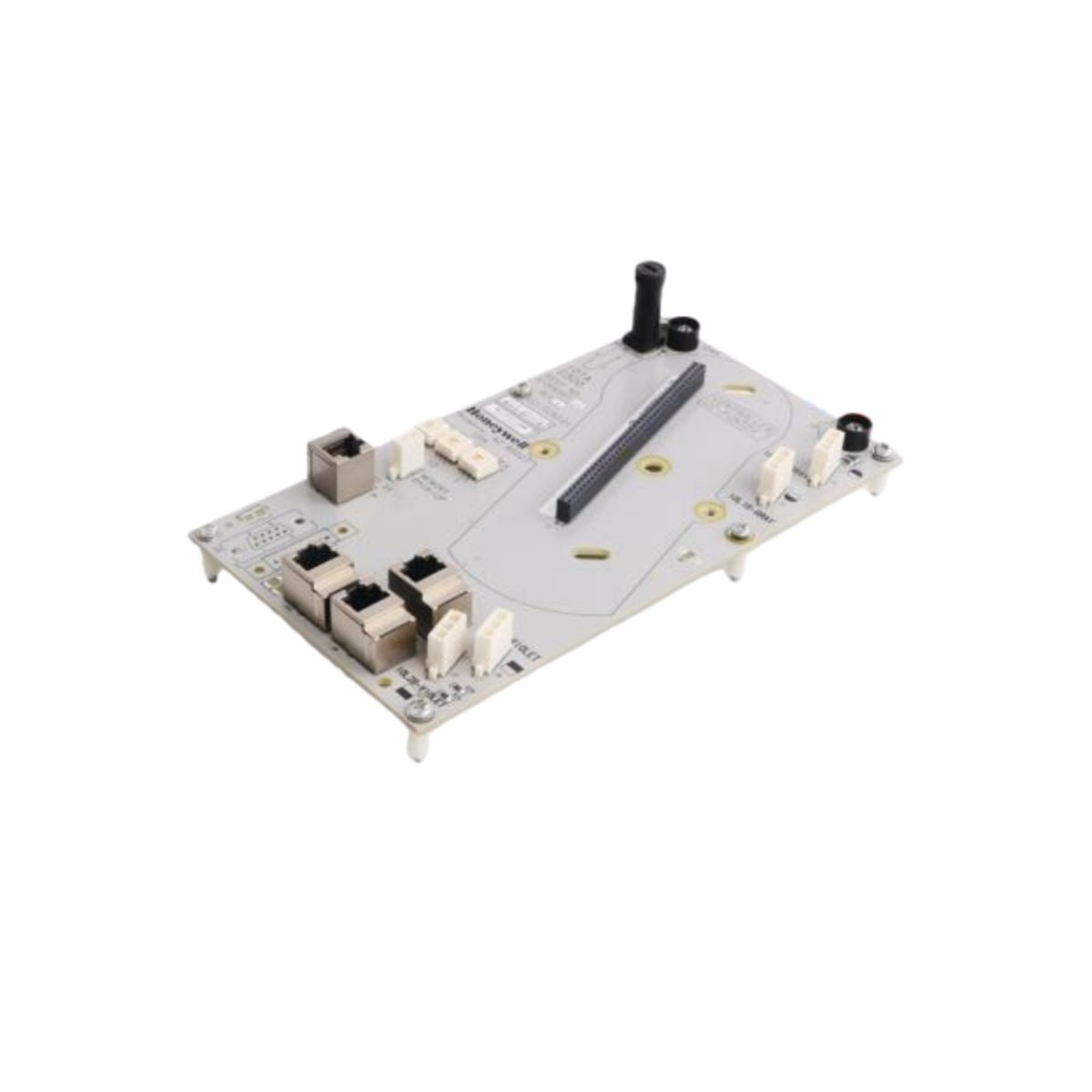

The Honeywell CC-TCNT01 is a high-performance controller module for critical process automation. It provides deterministic control and real-time data processing within the Experion PKS system. This module seamlessly integrates with Honeywell’s I/O modules and robust control networks. Consequently, it forms the computational core for reliable and scalable process control strategies.
Technical Specifications and Physical Profile
This C300 controller module features a high-speed embedded processor for complex logic. Its integrated memory supports extensive control strategies and diagnostic functions. Furthermore, the module operates on a standard industrial voltage within a defined temperature range.
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | CC-TCNT01 |
| Controller Series | Experion PKS C300 Series |
| Product Type | Process Controller Module |
| Primary Function | Deterministic Process Control, Batch/Continuous Control |
| Embedded Processor | High-Speed RISC-based Processor |
| Memory Configuration | Integrated RAM & Flash Memory |
| Control Strategy Capacity | Supports thousands of function blocks (system dependent) |
| Primary Communication Network | FTE (Fault Tolerant Ethernet) |
| I/O Communication | I/O Link (High-speed serial link to I/O modules) |
| Legacy Network Support | ControlNet (Optional, via communication module) |
| Power Supply Requirement | 24 VDC (Redundant inputs supported) |
| Typical Power Consumption | 15 Watts (Maximum, varies with load) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Physical Mounting | Universal Control Network (UCN) Chassis Slot |
| Module Dimensions (H x W x D) | Standard C300 form factor (~200mm x 130mm x 40mm) |
| Module Weight | Approximately 0.5 kg |
| Redundancy Support | Yes (Requires a second CC-TCNT01 and redundancy kit) |
| Status Indicators | Multiple LEDs for Power, Status, Network Activity, Faults |
| Real-Time Clock | Integrated battery-backed clock |
Key Features and System Role
The CC-TCNT01 executes regulatory control, sequencing, and advanced control applications. Its Fault Tolerant Ethernet (FTE) network ensures high availability and communication resilience. The controller’s I/O Link provides deterministic, high-speed communication to local I/O packs. Moreover, its modular design allows for easy upgrades and maintenance within the C300 system. This makes it suitable for industries demanding high reliability, like refining and petrochemicals.
Application Context and Integration
This controller is the central processing unit for a C300 Process Automation Controller (PAC). It connects to various Honeywell I/O modules (e.g., CC-PAIH01, CC-PDIL01) for signal handling. Engineers program the CC-TCNT01 using Honeywell’s Control Builder engineering software. The module manages complex control loops, safety interlocks, and data acquisition simultaneously. Therefore, it provides a unified platform for both basic and advanced process automation needs.
Installation and Configuration Notes
Installation requires inserting the module into a designated slot in the UCN chassis. Technicians must connect the 24VDC power and network cables (FTE, I/O Link) properly. Configuration and downloading of control strategies occur via the engineering workstation. Furthermore, implementing redundancy requires specific cabling and software settings for seamless failover.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
