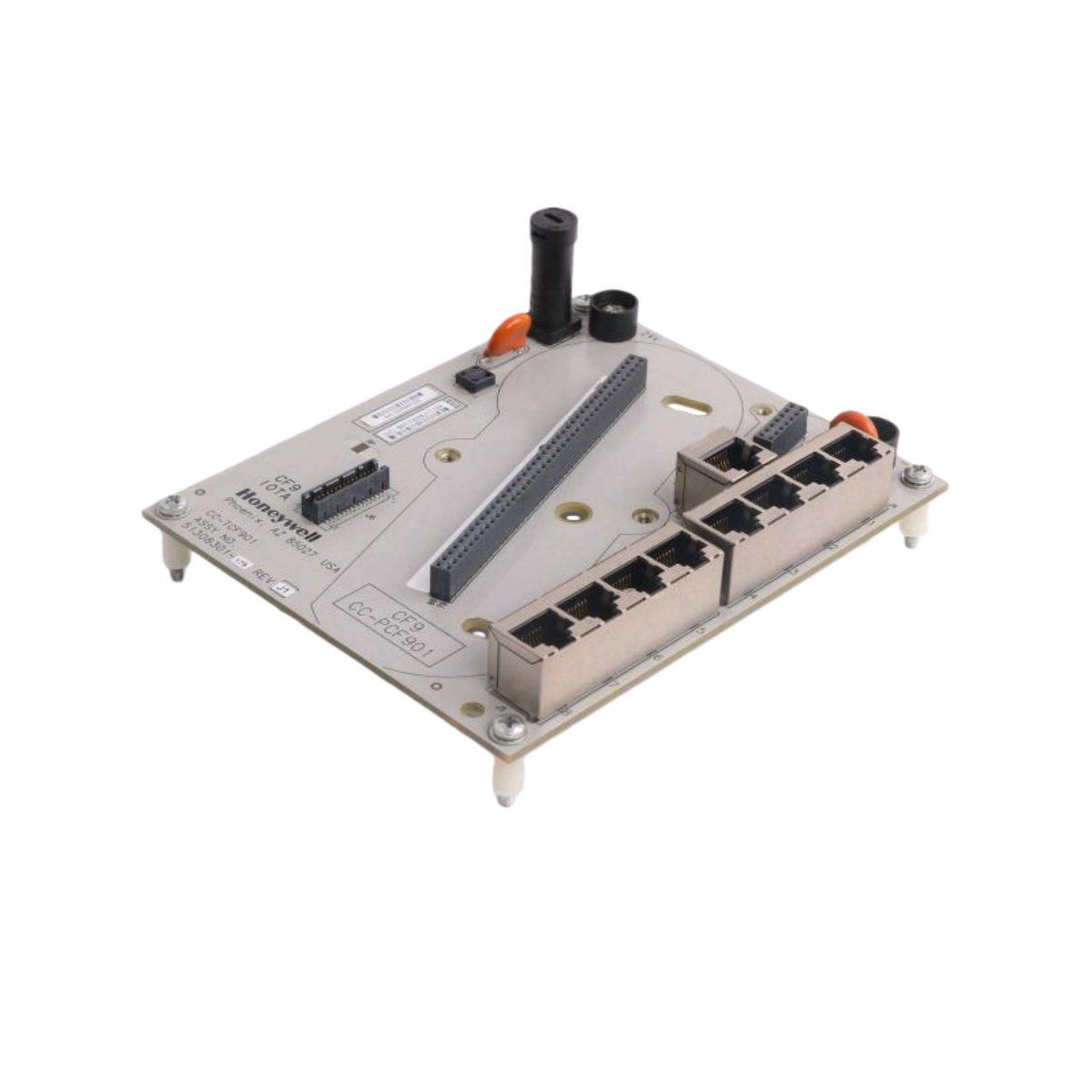

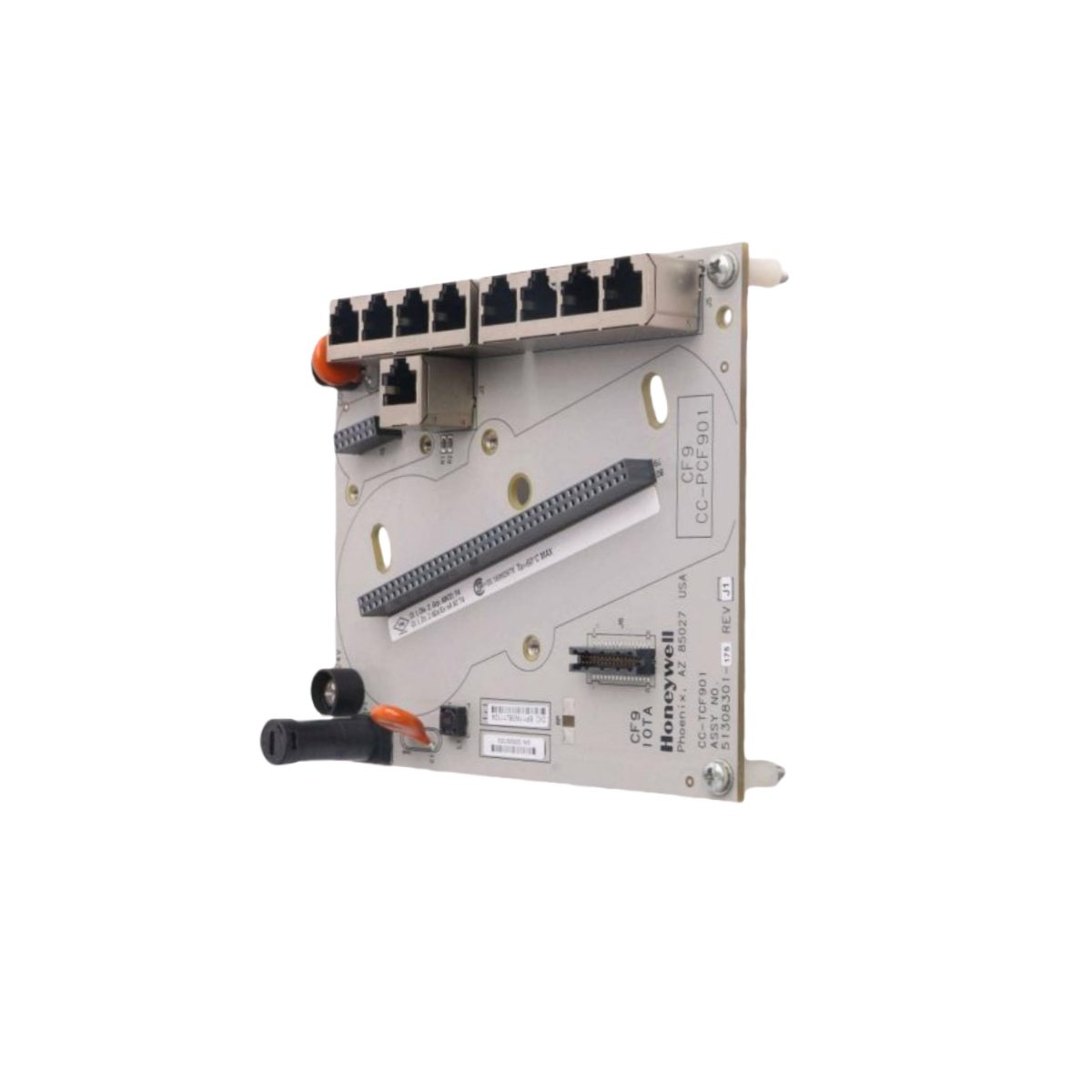

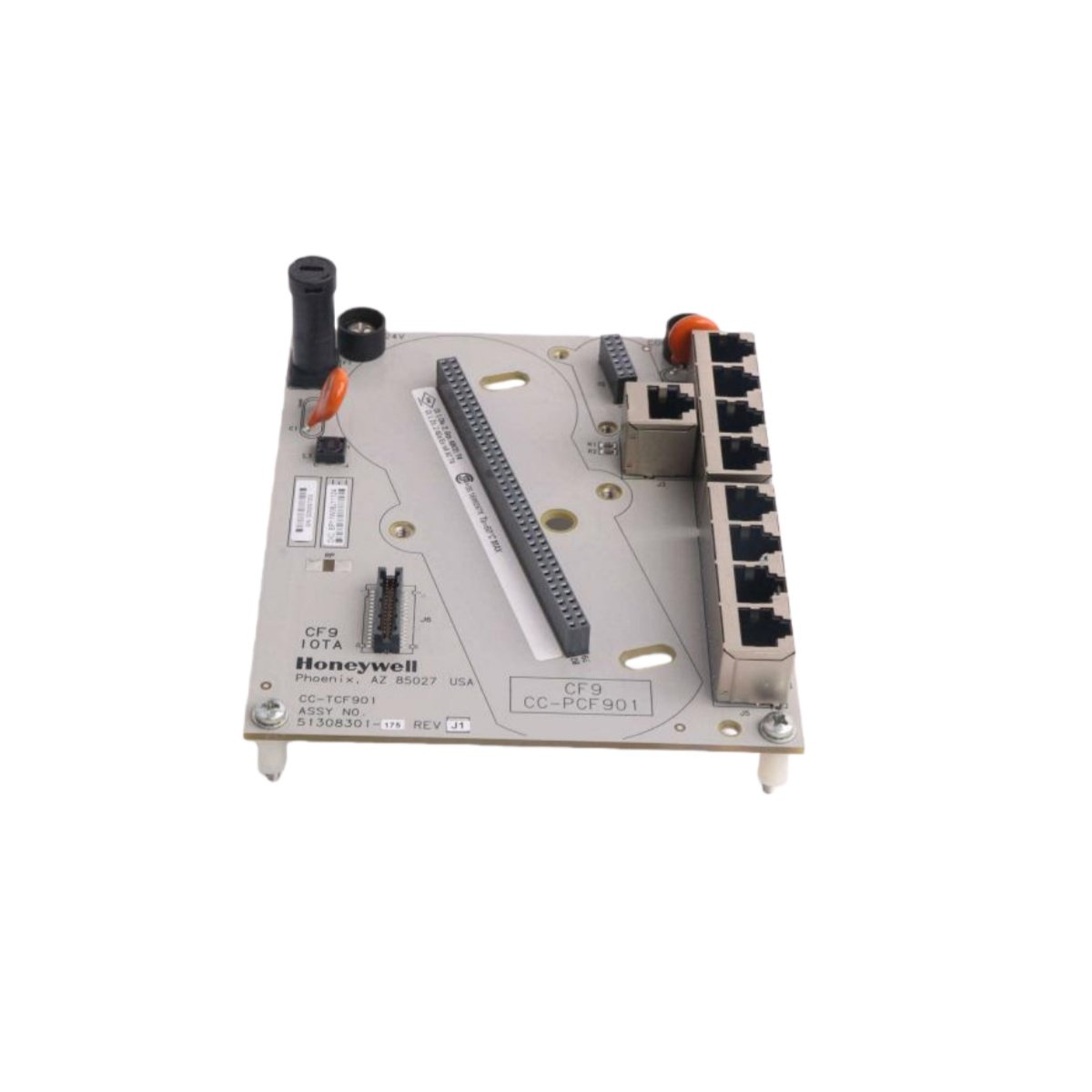

The Honeywell CC-TCF901 is a 9-port control firewall module designed for Experion 300 systems. It establishes a secure, high-speed network bridge between controllers and supervisory networks. Furthermore, this module integrates robust power distribution to streamline cabinet wiring and enhance reliability.
Engineered for Cybersecurity and Simplified Integration
This module provides critical network segmentation to protect vital control system traffic. It features eight FTE ports for connecting in-cabinet controllers and Series C FIM modules. Additionally, a dedicated ninth uplink port ensures secure connectivity to the supervisory network layer.
The CC-TCF901 also includes an integrated 24VDC power distribution bus. This design efficiently routes power to connected control modules, reducing external wiring. Consequently, it simplifies cabinet layout and improves overall system maintenance and organization.
Detailed Technical Specifications
The following table details the key physical, electrical, and functional parameters of the CC-TCF901 firewall module.
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Honeywell CC-TCF901 |
| Compatible System | Experion 300 |
| Total Ports | 9 RJ-45 Ethernet Ports |
| Port Configuration | 8 FTE + 1 Supervisory Uplink |
| Primary Function | Control Firewall & Network Switch |
| Power Input | 24 VDC ±10% |
| Integrated Feature | Internal 24VDC Power Distribution |
| Dimensions (H x W x D) | 145 mm x 121 mm x 53 mm |
| Weight | 0.18 kg |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +70°C |
For comprehensive installation and cybersecurity configuration guidelines, always refer to the official Honeywell Experion documentation.
Details
| Weight | 0.18 kg |
|---|---|
| Dimensions | 145 × 121 × 53 mm |
