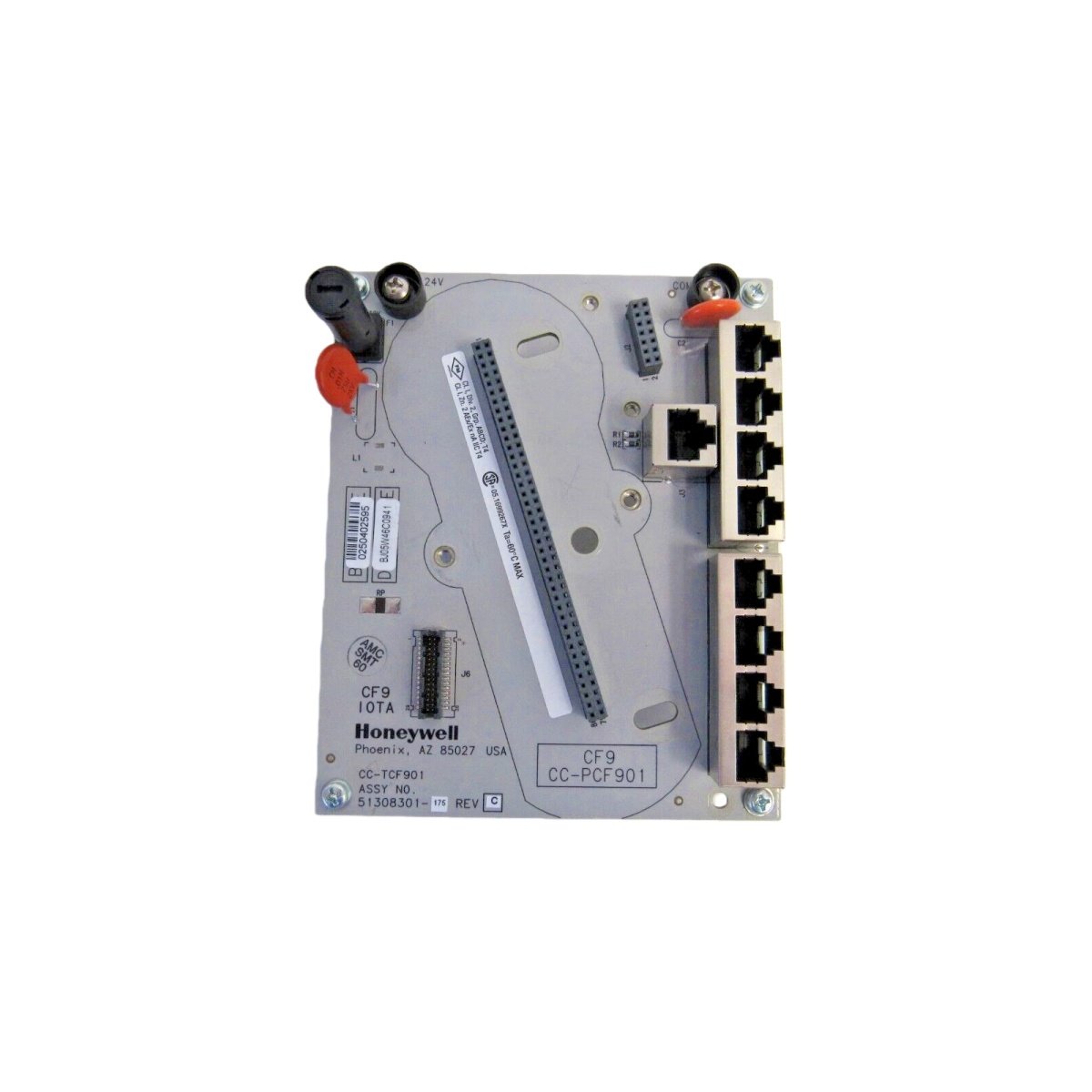

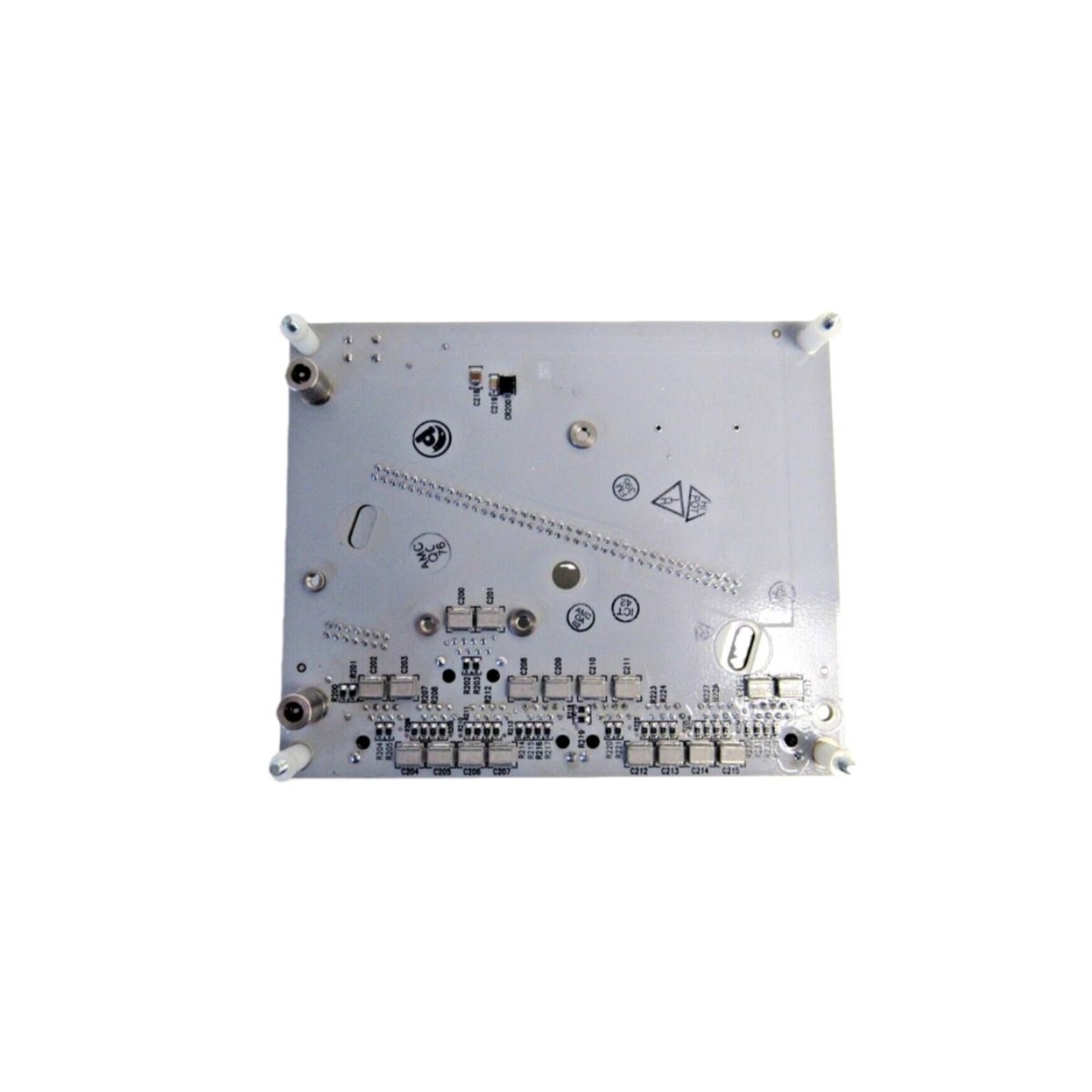

The Honeywell CC-TCF901 51308301-175 functions as a dedicated 9-port control firewall module within the Experion PKS system. This unit provides secure network segmentation between process control and enterprise networks. Consequently, it protects critical infrastructure from unauthorized access while maintaining reliable data flow.
Technical Specifications and Security Features
Control system engineers require precise network security specifications for regulatory compliance and risk mitigation. Therefore, we present the complete technical data for the Honeywell:
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Type | Control Firewall Module |
| Series | Experion PKS C-series |
| Part Number | CC-TCF901 51308301-175 |
| Network Ports | 9 ports total |
| Port Configuration | 8 internal switch ports, 1 uplink port |
| Port Speed | 10/100 Mbps auto-negotiating |
| Connector Type | RJ45 with shielded housing |
| Throughput | 200 Mbps maximum |
| Concurrent Connections | 10,000 sessions |
| Security Policies | 500 configurable rules |
| VPN Support | IPsec with AES-256 encryption |
| Dimensions | 150 mm x 120 mm x 80 mm |
| Weight | 0.85 kg |
| Power Consumption | 15 Watts maximum |
| Redundant Power | Dual 24 VDC inputs with diode ORing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | C-series I/O rack |
Advanced Network Protection Capabilities
The CC-TCF901 51308301-175 performs deep packet inspection specifically for industrial protocols like Modbus TCP and Profinet. Additionally, it includes an integrated intrusion detection system for identifying anomalous network behavior. This module supports VLAN segmentation to isolate process control traffic from business networks. You can integrate this firewall with protection devices like the RMS TSG TZ C static trip unit for comprehensive system security. Furthermore, the Honeywell CC-TCF901 51308301-175 provides hardware-based encryption acceleration for VPN tunnels without performance degradation.
Security Policy and Access Control
This control firewall module manages access through granular rules based on IP addresses and protocol types. Its nine-port architecture allows flexible network topologies including DMZ creation and ring configurations. The CC-TCF901 51308301-175 maintains detailed audit logs for compliance with NERC CIP and ISA-99 standards. Engineers can configure security policies through Honeywell’s Experion engineering environment. Typical applications include refinery control networks, power generation DCS, chemical plant segmentation, and pipeline SCADA systems.
Installation and Network Integration
Mount the Honeywell CC-TCF901 51308301-175 securely into any standard C-series rack slot for immediate network protection. Connect the uplink port to the plant network and internal ports to control devices accordingly. Configure security policies based on the ISA-95 zone and conduit model for defense-in-depth. Finally, test all firewall rules thoroughly before deploying into production environments.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
