Product Overview

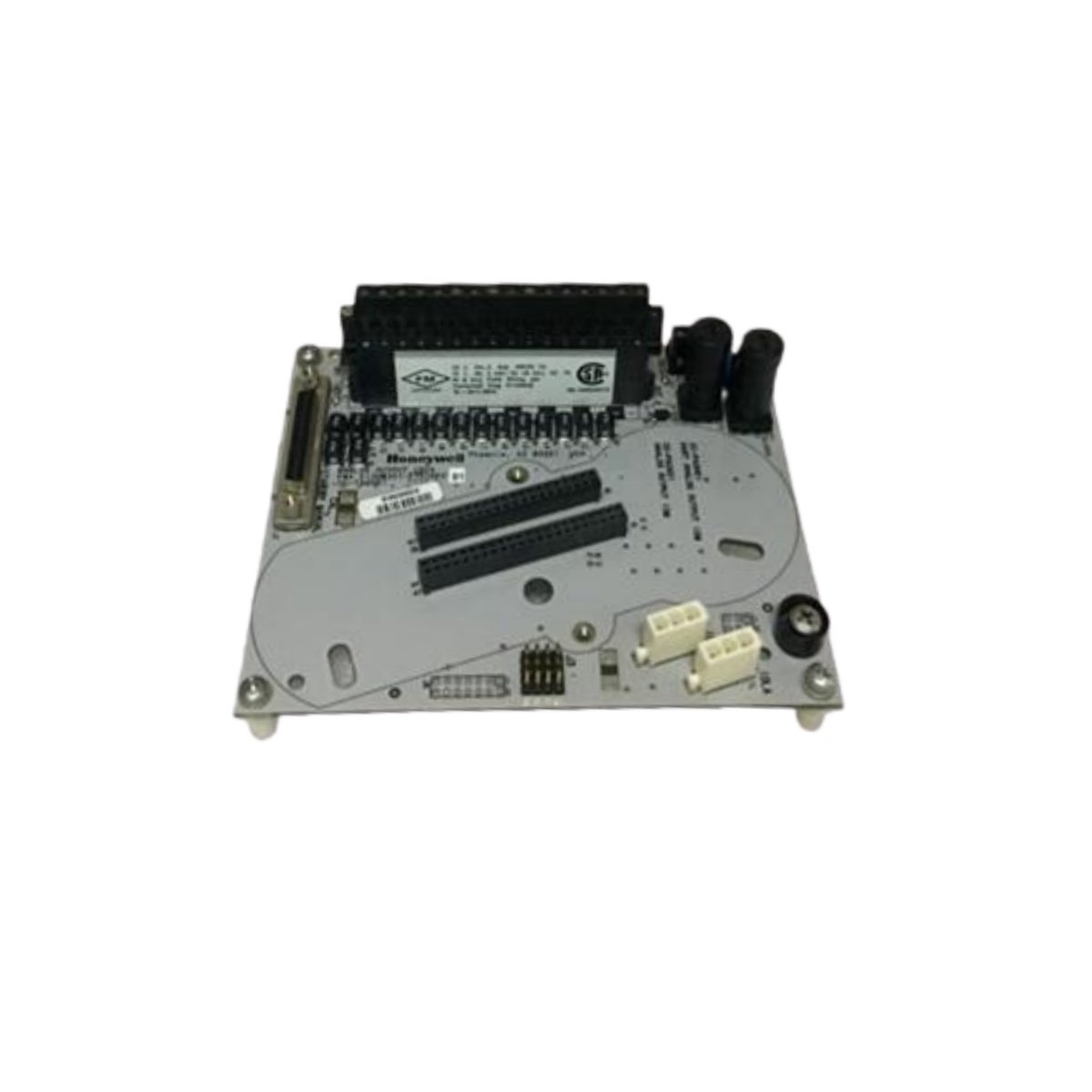

The Honeywell CC-TAOX01 serves as a high-density 16-channel analog output module engineered for the Experion Series C I/O system. This module delivers precise control signals to field devices like valves, actuators, and chart recorders in demanding industrial environments. We designed the CC-TAOX01 to provide a cost-effective solution without compromising on the accuracy or reliability expected from Honeywell automation components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | CC-TAOX01 |
| Series | Experion Series C I/O |
| Product Type | Analog Output Module |
| Number of Channels | 16 isolated channels |
| Output Signal Type | Analog voltage or current (4-20mA DC) |
| Output Range | 4-20mA DC (standard industrial loop) |
| Resolution | 12 bits (4096 steps) |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel isolation |
| Protection Features | Reverse polarity protection, overcurrent protection |
| Mounting Style | DIN rail mountable |
| Power Consumption | < 5W (typical, from backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 132mm x 27mm x 115mm (approx.) |
| Weight | 0.35 kg (approx.) |
| Termination Type | Removable terminal blocks |
| LED Indicators | Power, communication status, channel fault |
Key Features and Benefits
High Channel Density: The CC-TAOX01 packs 16 isolated analog outputs into a single module, conserving valuable rack space and reducing per-channel costs significantly. You can control multiple field devices without requiring additional hardware.
Precision Control Performance: With 12-bit resolution and 0.1% accuracy, this module delivers exceptionally precise output signals for critical process applications. Consequently, valves and actuators respond with greater accuracy to control commands.
Comprehensive Protection Circuitry: Built-in reverse polarity protection safeguards the module against common wiring mistakes during installation. Additionally, overcurrent protection prevents damage from field wiring faults.
Seamless System Integration: The CC-TAOX01 integrates directly with Honeywell’s Experion Series C I/O platform, ensuring complete compatibility and straightforward configuration. Therefore, you can deploy this module with minimal engineering effort.
Robust Industrial Design: Engineers designed this module to withstand harsh industrial environments with a wide operating temperature range. The DIN rail mounting and removable terminal blocks simplify both installation and maintenance procedures.
Detailed Functional Description
The primary function of the Honeywell CC-TAOX01 involves converting digital control commands from the controller into precise analog signals. Specifically, it transforms these commands into a 4-20mA DC current loop, which industry-standard actuators and positioners readily accept. Furthermore, the module’s 12-bit resolution allows for over 4,000 discrete steps, enabling smooth and accurate positioning of final control elements. Consequently, this module ensures that processes maintain strict adherence to set points, thereby improving product quality and reducing waste.
Mechanical and Interface Details
We focused on straightforward integration when designing the physical aspects of the CC-TAOX01. The module features a robust termination assembly that simplifies field wiring, significantly reducing installation time. Additionally, its DIN rail mountable form factor allows for neat and organized placement within a control cabinet. The front-facing connectors provide easy access for troubleshooting and maintenance, while the isolation barrier protects the backplane and controller from electrical transients originating in the field.
Common Industrial Applications
You will find the CC-TAOX01 extensively used in sectors requiring rigorous process control:
| Application Area | Typical Use Case |
|---|---|
| Oil & Gas | Precise positioning of pneumatic valve actuators in refining processes |
| Chemical Processing | Accurate chemical dosing control through metering pumps |
| Power Generation | Speed control of boiler feed pumps and fan drives |
| Water Treatment | Positioning of flow control valves in filtration systems |
| Manufacturing | Set point control for variable frequency drives (VFDs) |
| Utilities | Driving chart recorders for compliance monitoring |
Why Choose This Module?
Choosing the Honeywell CC-TAOX01 means selecting a reliable interface between your control system and the physical process. Its 16-channel density allows you to control multiple field devices from a single module, saving valuable rack space and reducing overall system cost. With 0.1% accuracy and reverse polarity protection, this module provides both the precision needed for tight control and the durability required for long-term operation in harsh industrial settings. By integrating seamlessly into the Experion ecosystem, the CC-TAOX01 helps you build a cohesive and efficient automation architecture.
Compatibility Information
The CC-TAOX01 operates exclusively within the Honeywell Experion Series C I/O system framework. It communicates with the following controllers:
C200 Process Controllers
C300 Process Controllers
Series C Redundant Controller configurations
For complete system compatibility and configuration guidelines, please consult the official Honeywell documentation or contact our technical support team.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
