Product Overview

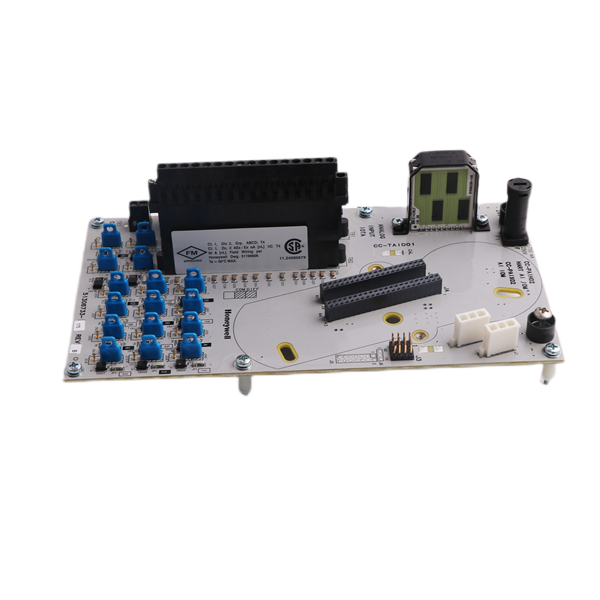

The Honeywell CC-TAID01 51306733-175 Analog Input Module serves as a 16-channel differential IOTA that processes high-level analog signals with exceptional precision. It supports both voltage and current inputs, ensuring flexible integration across various process control environments. Moreover, its HART functionality enhances data exchange between field transmitters and controllers.
In addition, engineers can rely on its diagnostic intelligence and redundancy compatibility for continuous operation, even during component faults. Therefore, the module delivers excellent reliability in high-demand automation systems.
Key Benefits
- Multi-Signal Capability: Handles 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA input ranges.
- HART Communication: Connects seamlessly to multivariable devices through multiple modems.
- Redundant Operation: Works with CC-TAIX01, CC-GAIX21, or CC-GAIX11 modules for fault tolerance.
- Fast Sampling: Achieves a rapid 50 ms input scan for real-time feedback.
- Smart Diagnostics: Detects open wires and faulty process variables for proactive maintenance.
- Intrinsic Safety Design: Includes non-incendive current-limiting circuits for Class 1, Div 2 use.
- High Accuracy: Maintains ±0.075% full-scale precision at standard temperatures.
Technical Specification
| Parameter | Specification |
|---|---|
| Model / Part Number | CC-TAID01 / 51306733-175 |
| Channels | 16 (12 single-ended + 4 differential) |
| Input Range | Voltage: 0–5 V / 1–5 V / 0.4–2 V; Current: 4–20 mA |
| Input Impedance | > 10 MΩ (powered mode) |
| A/D Conversion | 16-bit resolution |
| Filter Response | Single-pole RC, –3 dB @ 6.5 Hz |
| Accuracy (23.5°C ± 2°C) | ±0.075% of full-scale |
| Accuracy (0–60°C) | ±0.15% of full-scale |
| CMRR | 70 dB (DC–60 Hz, 500 Ω imbalance) |
| NMRR | 19 dB (at 60 Hz) |
| Crosstalk | –60 dB channel-to-channel |
| Max Input Voltage | ±30 V differential |
| Operating Temp. | 0 to 60°C |
| Power Protection | Individual current-limited circuits (no fuse needed) |
| Input Scan Rate | 50 ms |
System Integration
The CC-TAID01 connects field transmitters directly to the Honeywell Experion or TPS control system. It provides stable analog input handling for precise process feedback. Moreover, the module simplifies design by supporting both redundant and non-redundant setups on the same platform.
For instance, engineers can integrate it into oil refineries, chemical plants, or power generation systems where reliability and signal fidelity are critical. Consequently, it reduces wiring complexity and improves signal integrity.
Installation Notes
Use shielded cables between transmitters and the IOTA to prevent noise interference. Ensure a stable 24 VDC power supply to the IOTA base for consistent operation. Moreover, secure all terminal connections before energizing the system. In redundant applications, always synchronize paired modules for fault-free switching.
Details
| Weight | 0.34 kg |
|---|
