Overview

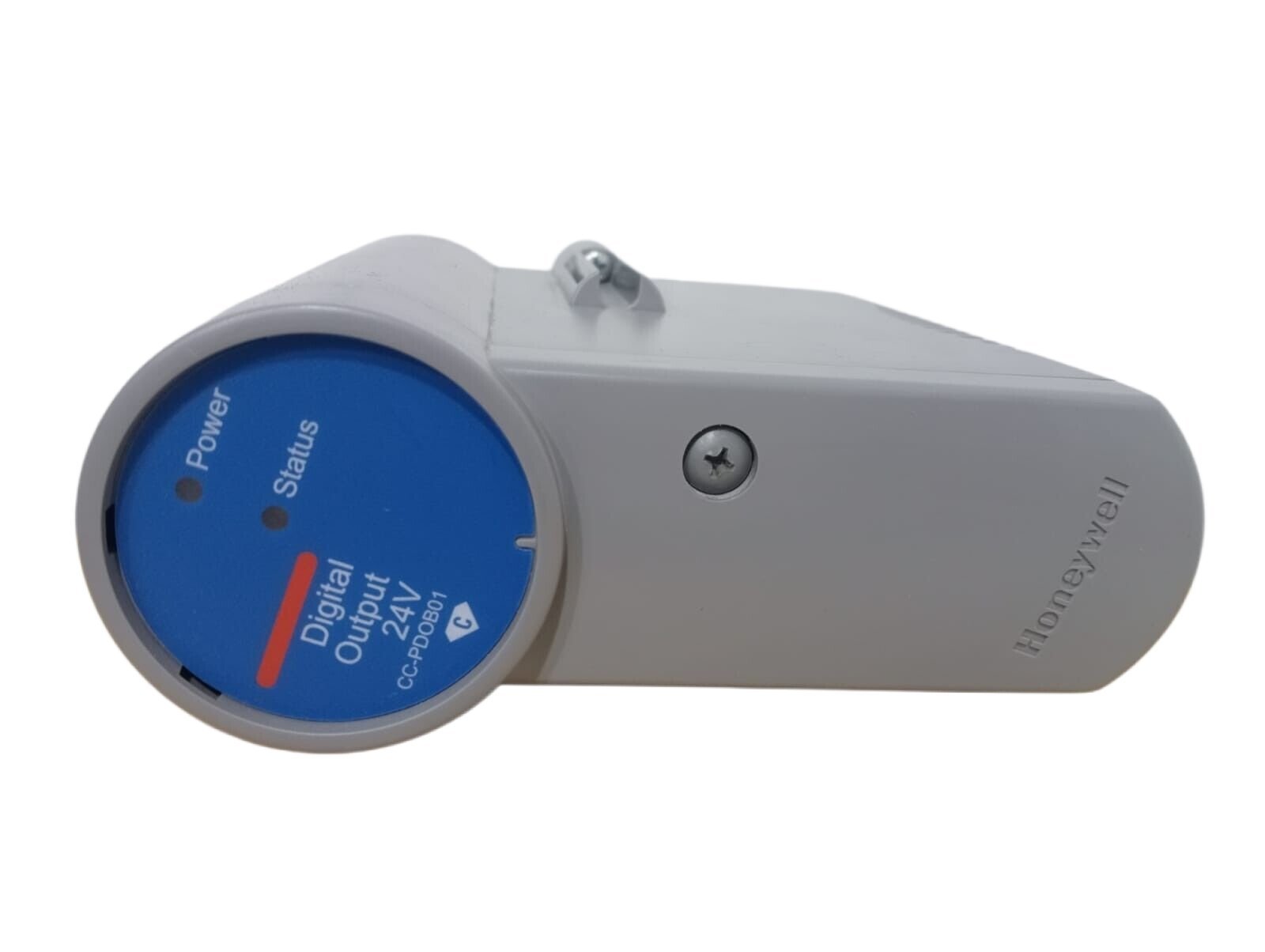

The Honeywell CC-PDOB01 is a high-performance 24V DC digital output module engineered for precise control of process equipment such as solenoid valves, actuators, and relays. It combines diagnostic intelligence, optional redundancy, and robust circuit protection, ensuring stable and reliable operation even in demanding industrial environments. Its modular design and strong isolation capabilities make it a preferred choice for complex control systems.
Key Features
- High Reliability: Integrated diagnostics continuously monitor output integrity and communication status.
- Optional Redundancy: Supports redundant configurations for uninterrupted operation in safety-critical systems.
- Fail-Safe Behaviors (FAILOPT): Allows configuration to maintain the last known state or switch to a safe output during faults.
- Short Circuit Protection: Fuse-less design isolates shorted channels automatically without impacting others.
- Flexible Output Control: Supports latched, pulsed, and pulse-width modulated (PWM) outputs for diverse control requirements.
- Galvanic Isolation: Ensures electrical isolation between system logic and field power for enhanced safety and noise immunity.
Specifications
Bussed 24VDC Digital Output
| Parameter | Specification |
|---|---|
| Model | CC-PDOB01 (Field Isolated, Bussed Output) |
| Part Number | 51405043-176 |
| IOTA Models | CC-TDOB01 (Non-Redundant, 9”), CC-TDOB11 (Redundant, 12”) |
| Output Channels | 32 |
| Output Type | Source |
| Load Voltage | 15–30 VDC (max) |
| Load Current | Per Channel: 0.5 A Per 8 Channels: 4 A (No short), 3 A (One short) |
| Galvanic Isolation | 1500 VAC RMS or ±1500 VDC |
| On-State Voltage | 24 V (typical) |
| Off-State Voltage | 0 V (max), 3.3 VDC (no-load) |
| Turn-On/Off Time | 10 ms (max) |
| Output Voltage Drop | Source Voltage – 150 mV (max) |
Relay IOTA for CC-PDOB01
| Parameter | Specification |
|---|---|
| Relay IOTA Models | CC-TDOR01 (Non-Redundant, 6”), CC-TDOR11 (Redundant, 12”) |
| Output Channels | 32 isolated Form A (SPST/NO) or Form B (SPST/NC) (jumper-selectable) |
| Contact Type | AgSnO₂ |
| Maximum Load Voltage | 250 VAC RMS / 125 VDC |
| Maximum Steady-State Load Current | 3 A @ 250 VAC (resistive), 0.2 A @ 125 VDC (resistive) |
| Minimum Load Voltage/Current | 12 VDC / 100 mA |
| Turn-On/Off Time | 20 ms (max) |
| Isolation | 1500 VAC RMS or ±1500 VDC |
| Contact Life | Mechanical: 5,000,000 cycles Electrical: 50,000 cycles @ 6 A |
Distinctive Highlights
- Fuse-less Short Circuit Protection: Intelligent protection eliminates the need for manual fuse replacement, reducing downtime.
- Customizable Fail-Safe Logic: Each output can be individually configured for hold-last or safe-state behavior during faults.
- Dual Power Compatibility: Operates with both internal and external field power, maintaining full galvanic isolation for system safety.
Applications
- Industrial process automation and distributed control systems (DCS).
- Solenoid valve, actuator, and relay control in energy and chemical industries.
- High-current digital output loops requiring precise timing and fault isolation.
- Critical fail-safe control in ESD and burner management systems.
FAQ
Q1: Is the Honeywell CC-PDOB01 module new and genuine?
Yes, all Honeywell CC-PDOB01 modules are 100% original, brand new, and fully factory-sealed. Each unit passes strict quality control before dispatch.
Q2: How long does shipping take?
Orders are shipped within 3 days to 2 weeks depending on quantity. We use reliable logistics partners such as DHL, FedEx, and UPS for global delivery.
Q3: Can this module operate with redundant IOTAs?
Yes, the CC-PDOB01 supports redundant IOTA configurations such as CC-TDOB11 or CC-TDOR11 for uninterrupted control and system reliability.
Q4: What if there is a quality issue?
We offer a 30-day return policy for verified product defects or quality concerns.
Details
| Weight | 0.15 kg |
|---|
