Product Overview

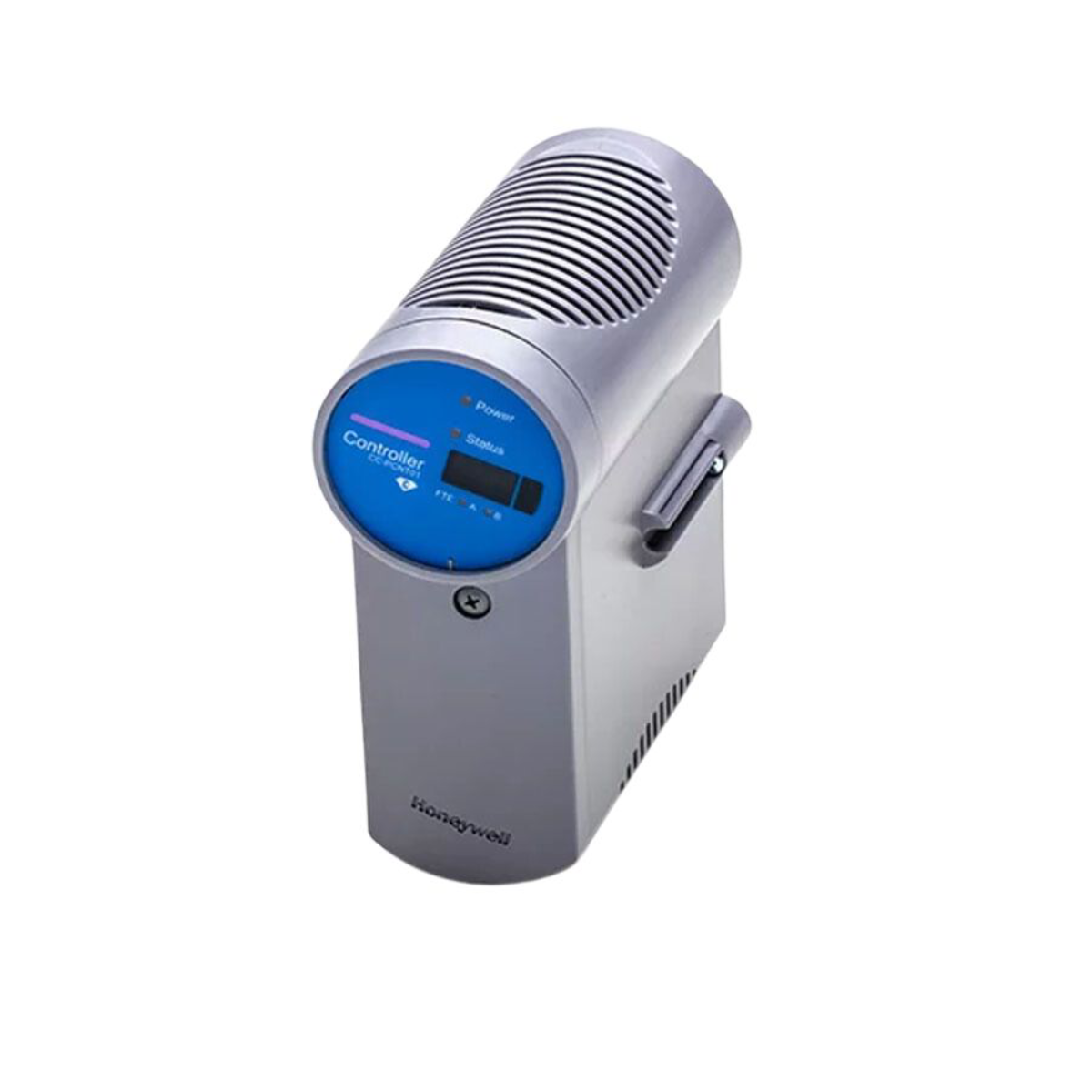

The CC-PCNT02 (Part Number 51454551-275) is a C300 Controller Module from Honeywell’s ExperionPKS series.
It supports both redundant and non-redundant configurations, delivering precise control for process and turbine applications.
This module replaces CC-PCNT01 and enables extended functionalities in C300 systems.

Key Features & Specifications

• Supports Control Execution Environment (CEE):
  • 50 ms base execution
  • 20 ms optional for turbine control
• Compatible with Fault Tolerant Ethernet (FTE) networks
• I/O Connectivity:
  • 2 I/O Links
  • 375 Kbaud PM I/O Link and 750 Kbaud Series C I/O Link
• Peer Update Rate: Configurable at 100, 200, 500, 1000 ms
• Time Synchronization:
  • Supports SNTP & PTPv2
  • SNTP update: 1 min
  • PTP update: 30 sec
• Ensures compatibility with C300 extended functionalities, including EIM and Profit Controller
• Ideal for new installations and field replacements of older CC-PCNT01 modules

Manufacturer Details

• Manufacturer: Honeywell
• Series: C300 Process Controller
• Product Type: C300 Controller Module

This module is essential for high-performance, reliable control in ExperionPKS C300 systems, supporting both standard and advanced process applications.
