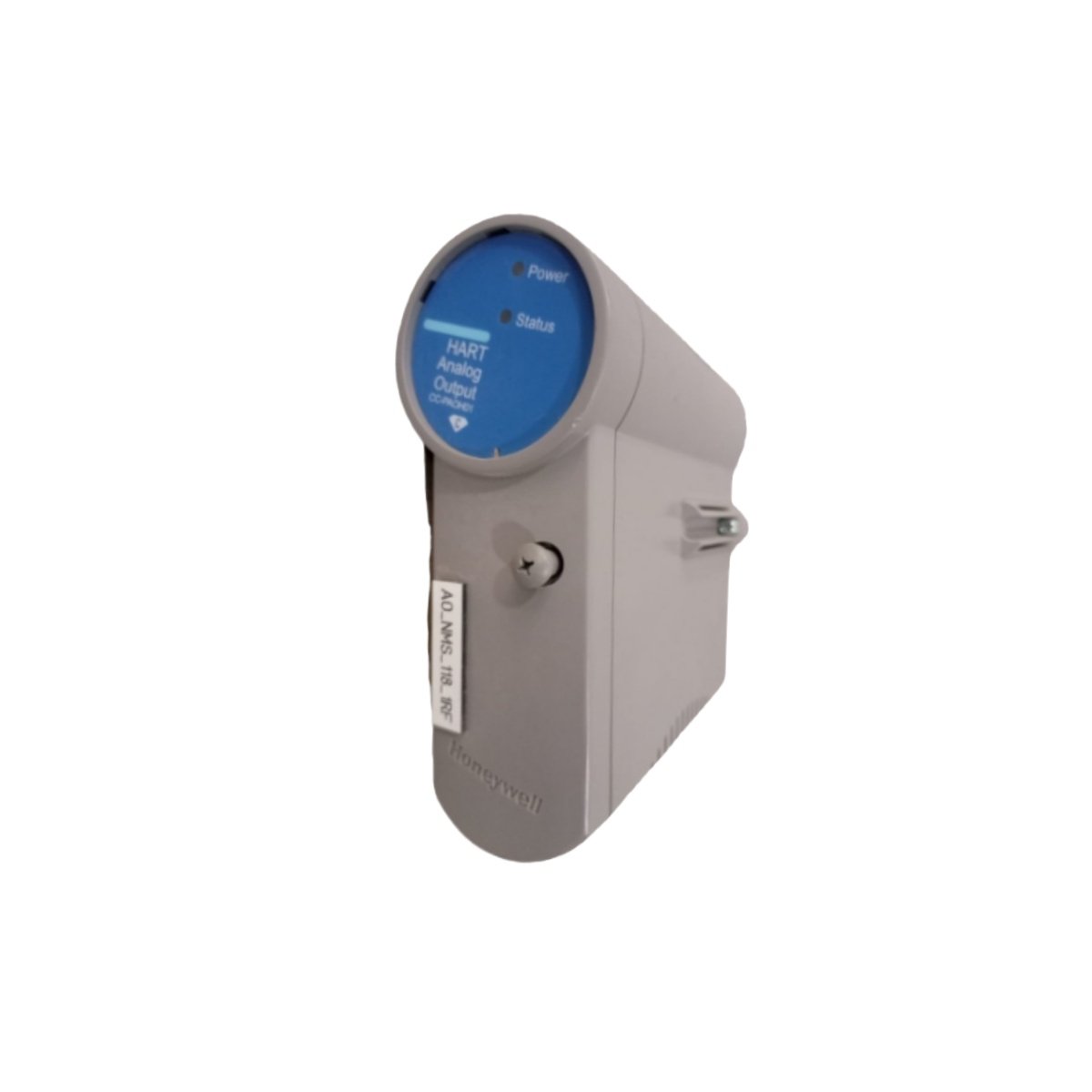

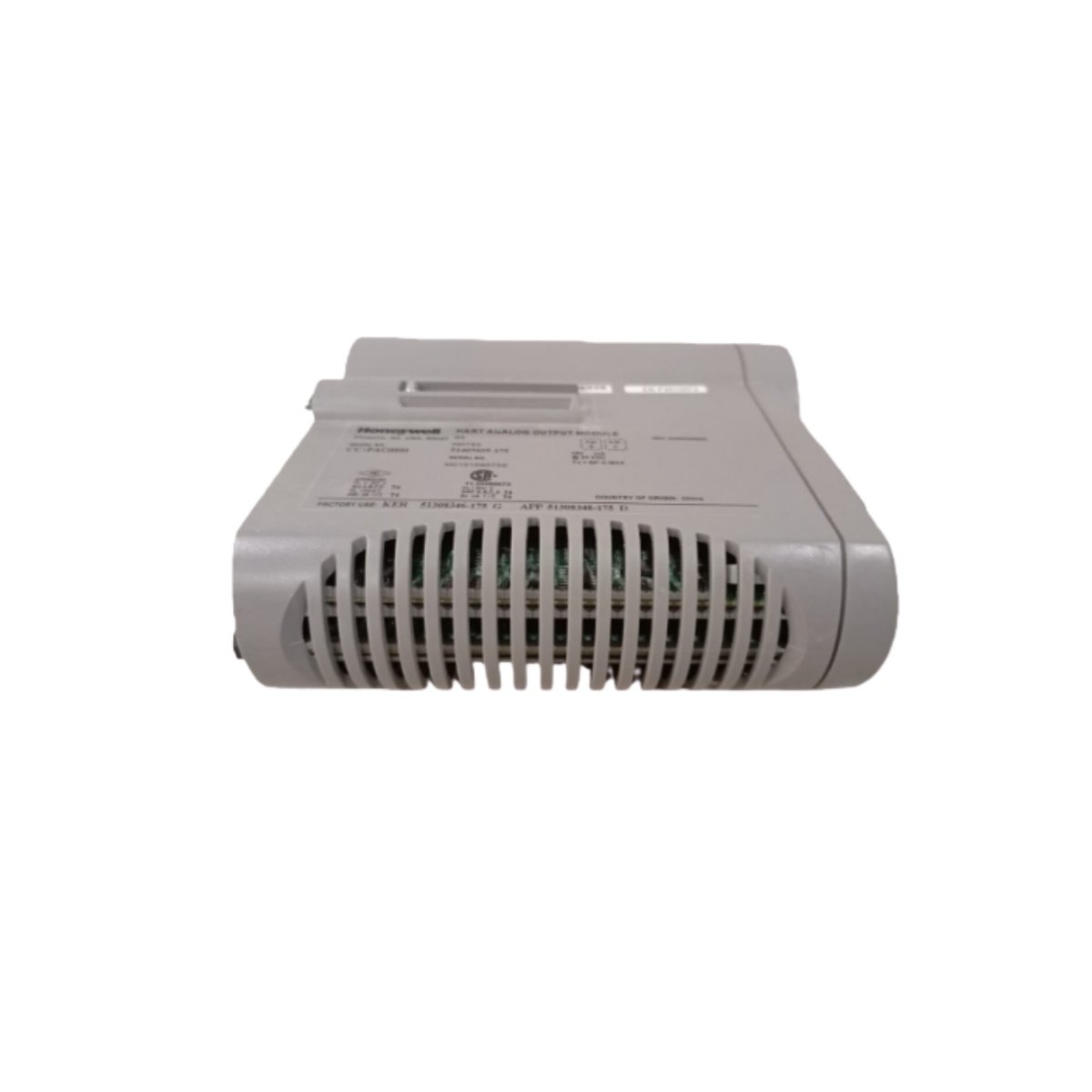

The Honeywell CC-PAOH01 51405039-175 delivers versatile and precise analog signal processing. This HART-enabled output module actively interfaces with a wide array of field sensors and transmitters. Consequently, it serves as a critical data acquisition and control point within robust automation systems.
Core Functionality and Signal Handling
This module accurately converts digital control system commands into analog outputs. Moreover, it supports both standard voltage (-10V to +10V) and current (4-20mA) signal ranges. Therefore, engineers can integrate diverse process instruments like temperature or pressure transmitters. The integrated HART protocol also enables bidirectional digital communication for device configuration.
Detailed Technical Specifications
The table below outlines the precise performance and electrical parameters for this module.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Full Model Number | CC-PAOH01 51405039-175 |
| Module Type | HART Analog Output Module |
| Input Voltage Range | -10 V DC to +10 V DC |
| Input Current Range | 4 mA to 20 mA |
| Output Accuracy | ±0.25% of full scale |
| Digital Resolution | 12-bit |
| Signal Update Rate | 100 ms (typical) |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| Isolation Voltage | 1500 V AC (Channel-to-system typical) |
| Module Power Requirement | 24 V DC (Typical, from system backplane) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Module Dimensions (Est.) | ~ 130 mm H x 30 mm W x 110 mm D |
| Module Weight | Approx. 0.25 kg |
| Connector Type | Removable screw terminal block |
Key Applications and Integration Benefits
System integrators deploy this module for critical process monitoring and control loops. Specifically, it is ideal for temperature measurement in heating systems and pressure monitoring in vessels. Furthermore, it accurately measures flow rates in pipelines and tank level in storage facilities. The module also excels in general process control, machine condition monitoring, and data acquisition systems. Its compatibility with the open Honeywell ecosystem simplifies integration, similar to how an RMS-TSG-TZ-C Static Trip unit protects a circuit.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 30 × 313 × 278 mm |
