Product Overview

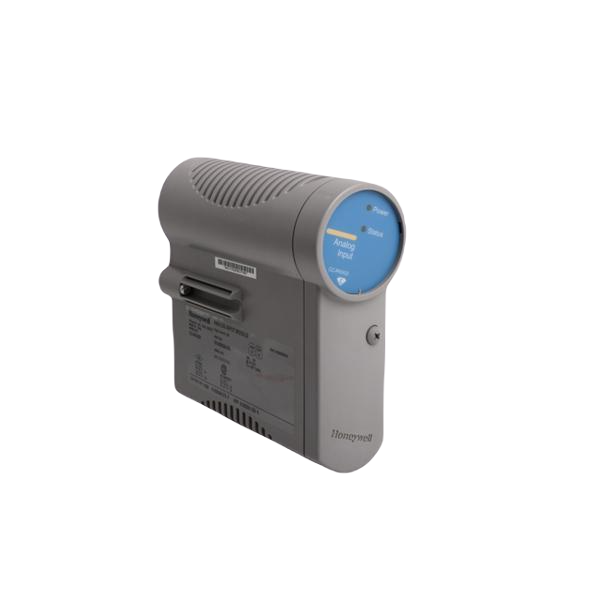

The Honeywell CC-PAIX02 51405038-475 High-Level Analog Input Module provides reliable, high-precision data collection in industrial systems. Moreover, it ensures operational safety with non-incendive field power suitable for hazardous locations. Additionally, optional redundancy increases system reliability when paired with compatible IOTA models.
Key Features
- Extensive self-diagnostics monitors internal functions continuously for optimized performance.
- Optional redundancy supports critical processes using CC-TAIX11, CC-GAIX11, or CC-TAID11 modules.
- Non-incendive field power meets Class 1, Div 2 safety standards without external fusing.
- Fast loop scan guarantees timely analog data processing and reduces control delays.
Input Specifications
| Parameter | Specification |
|---|---|
| Input/Output Model | CC-PAIX02 High-Level Analog Input |
| Input Channels | 16 channels (12 single-ended, 4 differential) |
| Input Types | Voltage, current (supports 2-wire or self-powered transmitters) |
| Voltage Input Range | 0–5 V, 1–5 V, 0.4–2 V |
| Current Input Range | 4–20 mA (through 250 Ω resistor) |
| Input Impedance | >10 MΩ for voltage inputs (powered) |
| Input Scan Rate | 50 ms |
| Common Mode Rejection | 70 dB (dc–60 Hz, 500 Ω source imbalance) |
| Normal Mode Rejection | 19 dB at 60 Hz |
| Crosstalk | -60 dB (dc–60 Hz, channel-to-channel) |
| Maximum Normal Mode Input | ±30 V for differential inputs (without damage) |
| A/D Converter Resolution | 16 bits |
Accuracy & Field Power
| Parameter | Specification |
|---|---|
| Hardware Accuracy | ±0.075% full scale (23.5°C ± 2°C) |
| Temperature Accuracy | ±0.15% full scale (0–60°C) |
| Field Power Conditioning | Individually protected current-limiting circuits for Class 1, Div 2 non-incendive use |
| Additional Fusing | Not required for transmitter interfaces |
Compatibility
- Non-redundant IOTA modules: CC-TAIX01, CC-GAIX21, CC-TAID01
- Redundant IOTA modules: CC-TAIX11, CC-GAIX11, CC-TAID11
Application & Reliability
The Honeywell CC-PAIX02 ensures accurate data acquisition for critical analog signals. Consequently, engineers achieve reliable process control and maintain safety in hazardous areas. Furthermore, its combination of redundancy, self-diagnostics, and fast loop response improves system uptime significantly.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 140 × 406 × 368 mm |
