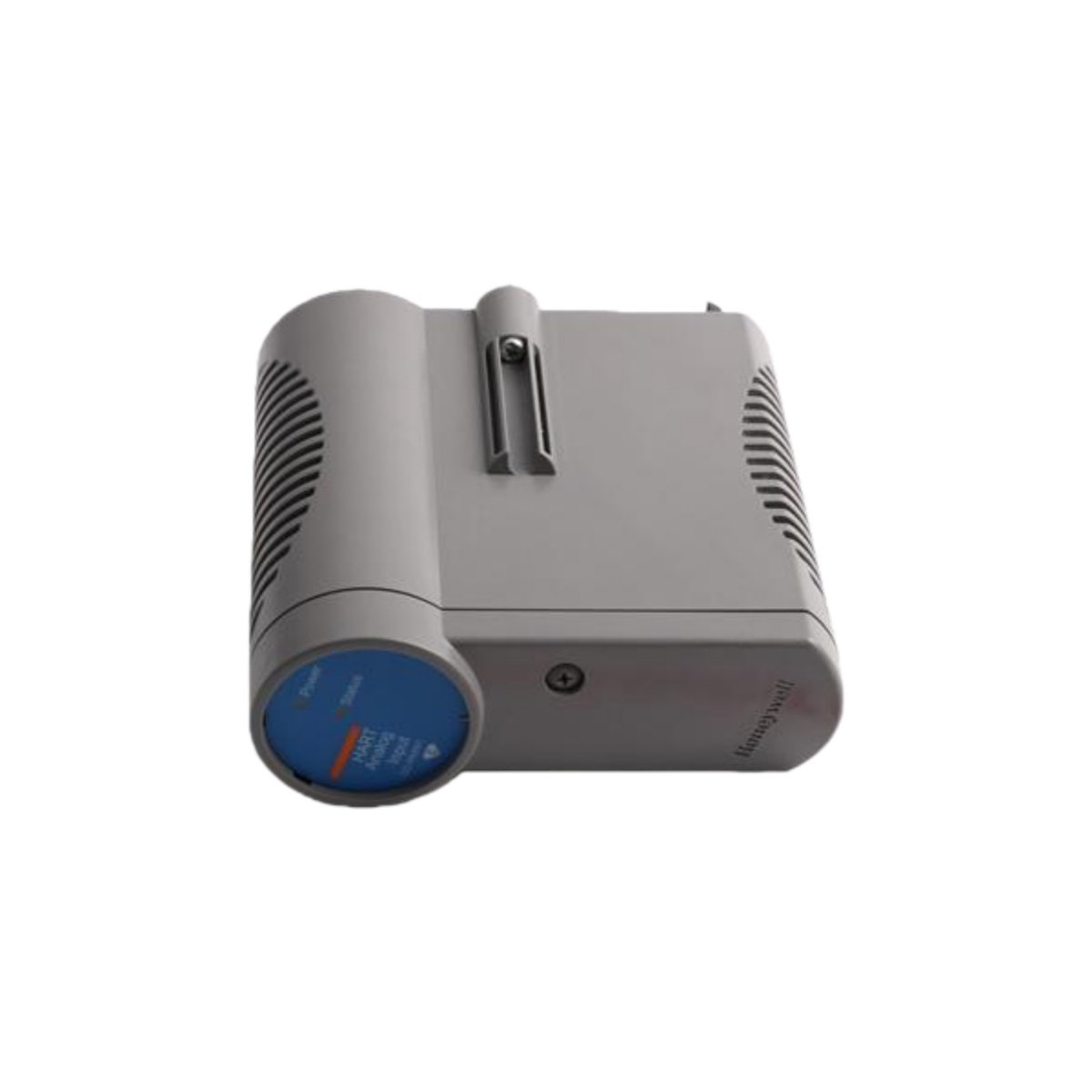

The Honeywell CC-PAIN01 module converts analog field signals into digital data. This input module belongs to the Honeywell CC-PA series for process control systems. The unit reads current and voltage signals from transmitters and sensors. Each channel provides high accuracy for critical process variables. Therefore, this module suits refinery, chemical, and power applications.

Key Technical Specifications

Input Configuration and Signal Ranges

The CC-PAIN01 provides 8 isolated analog inputs for flexible field connectivity. Each channel configures independently for current or voltage signals. The module accepts 4-20 mA, 0-20 mA, 0-10 V, or ±10 V ranges. Input impedance measures 250 Ω in current mode. For voltage mode, the impedance exceeds 1 MΩ. Consequently, the Honeywell CC-PAIN01 maintains signal integrity across all channels.

Resolution, Accuracy, and Sampling Performance

This analog input module achieves 16-bit resolution for detailed process measurement. Accuracy reaches ±0.1% of span for reliable control decisions. The sampling rate runs at 50 Hz per channel. Therefore, the unit captures most process dynamics effectively. Channel-to-channel isolation of 1500 V prevents interference between adjacent inputs.

Power Requirements and Physical Dimensions

The CC-PAIN01 requires a nominal 24 VDC power supply for operation. Typical power consumption stays at only 3.2 W for energy savings. The module measures 180 x 160 x 40 mm for standard rack mounting. Total weight reaches 0.42 kg for straightforward installation. Honeywell manufactures this CC-PAIN01 module in the USA. Accordingly, the unit meets strict quality standards for industrial environments.

Environmental Tolerance

The analog input module operates reliably from -20°C to +65°C. Storage temperatures range safely from -40°C to +85°C. Humidity tolerance spans 5% to 95% RH without condensation. Consequently, the Honeywell CC-PAIN01 performs well in demanding process conditions.
