Core Function for Intelligent Process Measurement

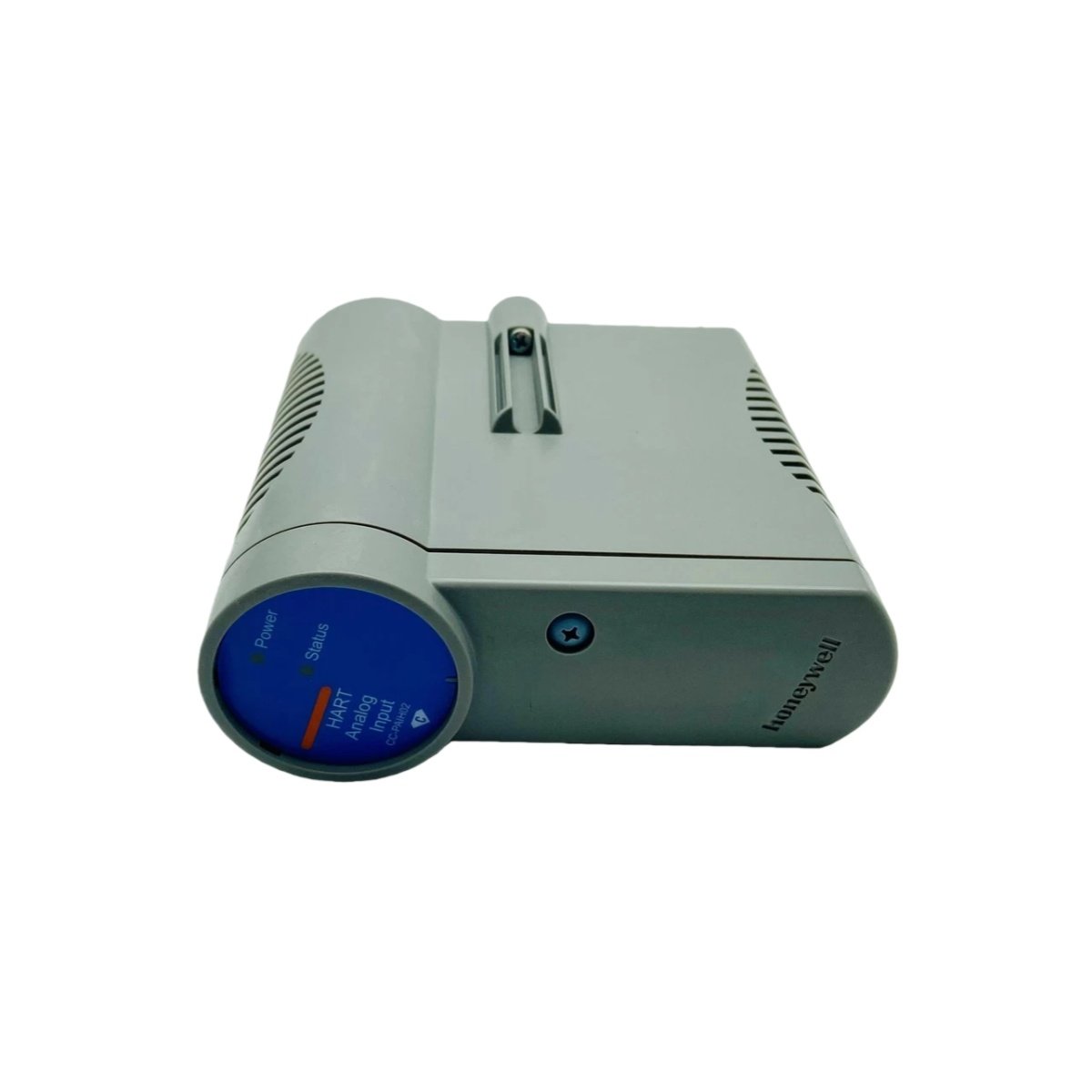

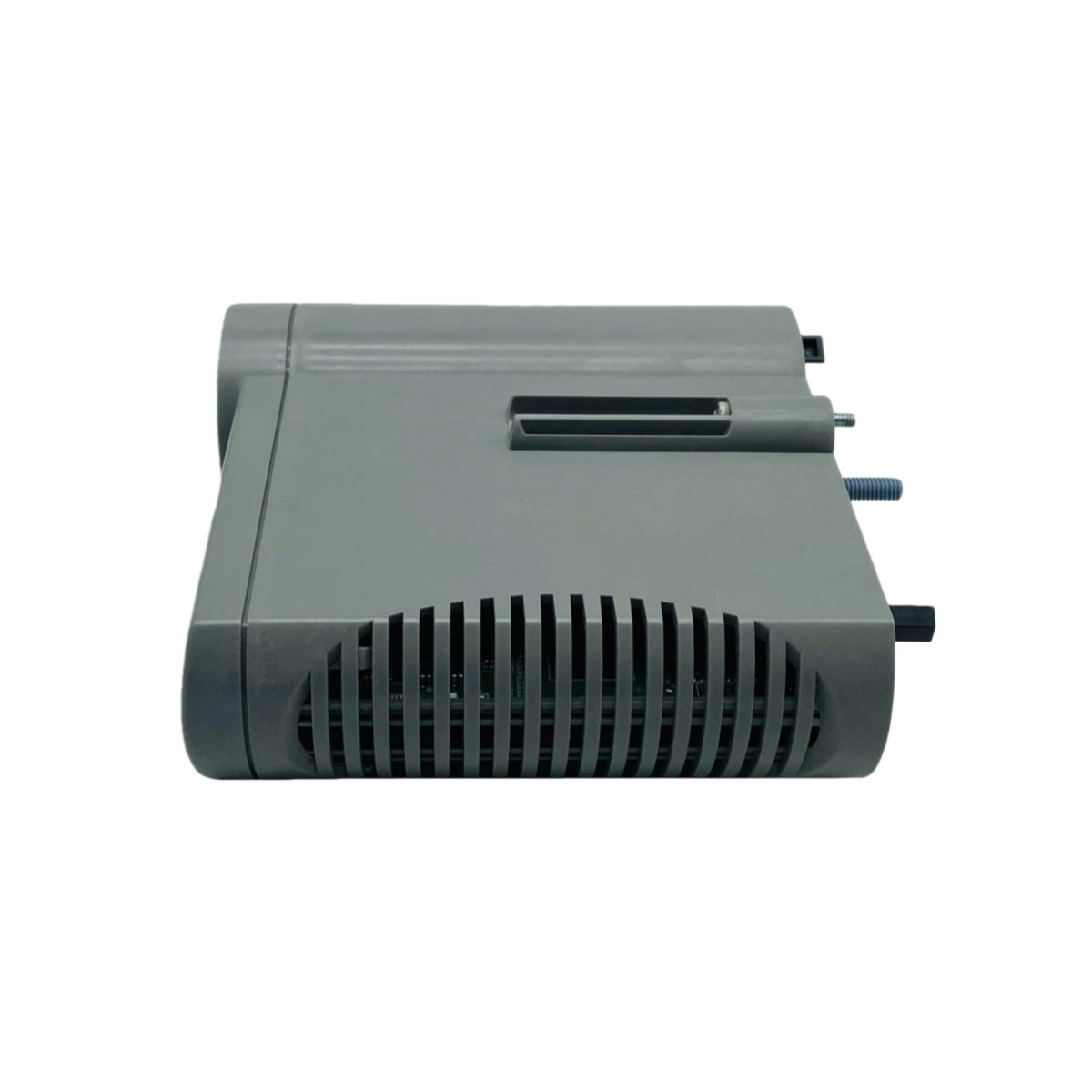

The Honeywell CC-PAIH02 is a high-level analog input module for Experion Series C control systems. This module acquires voltage and current signals from field transmitters while simultaneously supporting HART digital communication. It features 16 input channels, configurable as 12 single-ended or 4 differential inputs. Consequently, it enables smarter process control by combining precise measurement with advanced device diagnostics.
High Accuracy and Superior Noise Rejection
This module delivers exceptional hardware accuracy of ±0.075% of full scale under reference conditions. It offers excellent Common Mode Rejection Ratio (CMRR) of 70 dB to minimize electrical noise interference. The CC-PAIH02 provides a fast input scan rate of 50 milliseconds for responsive system updates. Furthermore, its 16-bit analog-to-digital converter (ADC) ensures high-resolution signal digitization.
Detailed Technical Specifications
Designed for industrial environments, the module is DIN rail mountable for easy installation in cabinets. Its robust construction includes efficient heat dissipation for reliable operation. The following table details its comprehensive electrical, performance, and physical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / System | Honeywell / Experion Series C |
| Product Model | CC-PAIH02 |
| Module Type | High-Level Analog Input with HART |
| Input Channels | 16 (12 Single-Ended, 4 Differential) |
| Input Types | Voltage, Current (supports 2-wire/self-powered) |
| Input Ranges | 0-5V, 1-5V, 0.4-2V, 4-20mA (via 250Ω) |
| ADC Resolution | 16 bits |
| Hardware Accuracy | ±0.075% FS (@ 23.5°C), ±0.15% FS (0-60°C) |
| Input Scan Rate | 50 ms |
| Common Mode Rejection | 70 dB (DC to 60 Hz) |
| Input Impedance | >10 MΩ (Voltage Inputs) |
| Max. Input (No Damage) | ±30 V |
| Channel-to-Channel Crosstalk | -60 dB |
| HART Support | Yes |
| Mounting | DIN Rail |
| Dimensions (H x W x D) | 176 mm x 35.2 mm x 212 mm |
| Weight | 0.7 kg |
Application and Integration Benefits
Use this module to interface with a wide array of 4-20mA transmitters and HART-enabled smart devices. Its high channel density maximizes I/O capacity and minimizes panel space requirements. The Honeywell CC-PAIH02 facilitates predictive maintenance by providing access to device health and diagnostic data. Therefore, it is a fundamental component for building efficient and intelligent process control loops in industries like oil & gas, chemical, and power.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 176 × 35.2 × 212 mm |
