Overview

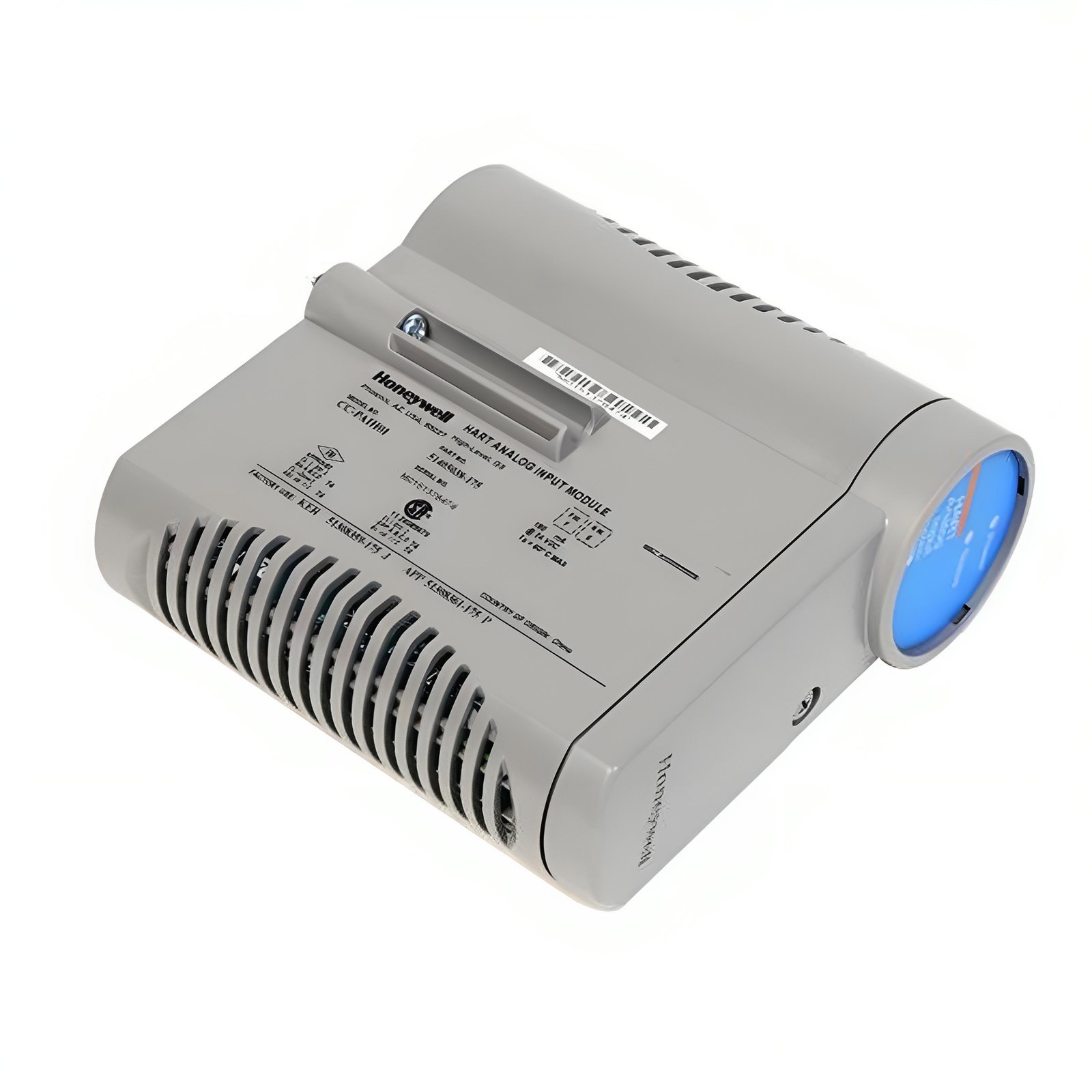

The Honeywell CC-PAIH01 Analog Input Module provides high-accuracy analog data acquisition for critical control and monitoring systems. It efficiently processes voltage and current signals from various transmitters and sensors. Moreover, the integrated HART communication enables direct connection with multivariable field devices, offering precise data collection and enhanced system visibility. In addition, the module’s compact design simplifies installation and system maintenance, making it ideal for distributed control systems (DCS) and process automation.
Functional Highlights
This module combines reliability, safety, and speed to deliver consistent field performance:
- Advanced Diagnostics: Detects and reports faults automatically, minimizing troubleshooting time.
- Optional Redundancy: Increases system reliability in mission-critical applications.
- HART Compatibility: Supports modern multivariable instruments for smarter communication.
- Non-incendive Power Supply: Simplifies installation in hazardous areas while ensuring safety.
- Open-Wire Detection: Maintains process accuracy and protects system stability.
- Fast Loop Scan: Enables real-time data updates and precise control response.
Furthermore, its rugged architecture supports high EMI immunity, ensuring reliable performance even under harsh industrial conditions.
Technical Specifications
| Category | Details |
|---|---|
| Model | CC-PAIH01 |
| Channels | 16 total (12 single-ended, 4 differential) |
| Input Range | 0–5 V, 1–5 V, 0.4–2 V, or 4–20 mA (via 250 Ω resistor) |
| Impedance | >10 MΩ (voltage inputs) |
| Max Input Voltage | ±30 V (without damage) |
| Common Mode Voltage | -6 to +5 V peak |
| Cross Talk | < -60 dB (dc to 60 Hz) |
| Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Resolution | 16-bit A/D converter |
| Accuracy | ±0.075% FS (23.5°C ±2°C); ±0.15% FS (0–60°C) |
| Scan Rate | 50 ms typical |
| Safety | Class 1, Division 2 non-incendive, SIL2 rated |
Therefore, the CC-PAIH01 offers precise signal measurement, even under rapidly changing process conditions.
System Integration
The CC-PAIH01 module is compatible with several IOTA base units, allowing flexible installation in both redundant and non-redundant systems. For example, it integrates seamlessly with:
- Non-redundant bases: CC-TAIX01, CC-GAIX21, CC-TAID01
- Redundant bases: CC-TAIX11, CC-GAIX11, CC-TAID11
Moreover, voltage input capability is provided on channels 13–16, while the CC-PAIH02 variant extends voltage support to all channels when paired with the CC-TAIDx1 IOTA. As a result, engineers can tailor system design based on signal type and operational requirements.
In addition, installation adjustments such as cutting the 250-Ohm load resistor or system common jumper allow flexible use of voltage and differential inputs. Consequently, it ensures accurate readings while maintaining compliance with Common Mode Voltage specifications.
FAQ
Q1: Is the Honeywell CC-PAIH01 a new and genuine product?
Yes, we only supply 100% original and brand-new Honeywell CC-PAIH01 modules. All units are fully tested and sourced directly from authorized suppliers.
Q2: What is the typical delivery time?
Orders usually ship within 3 days to 2 weeks, depending on order size and stock levels. We deliver worldwide using DHL, FedEx, or UPS.
Q3: Can the CC-PAIH01 handle both voltage and current inputs?
Yes, the module supports both voltage and current input types. You can modify jumper settings for each channel to configure signal type according to application requirements.
Q4: What is your return policy for this module?
If a quality issue occurs, customers may request a return or replacement within 30 days. Our support team provides quick assistance and verification.
Details
| Weight | 0.4 kg |
|---|
