Product Overview

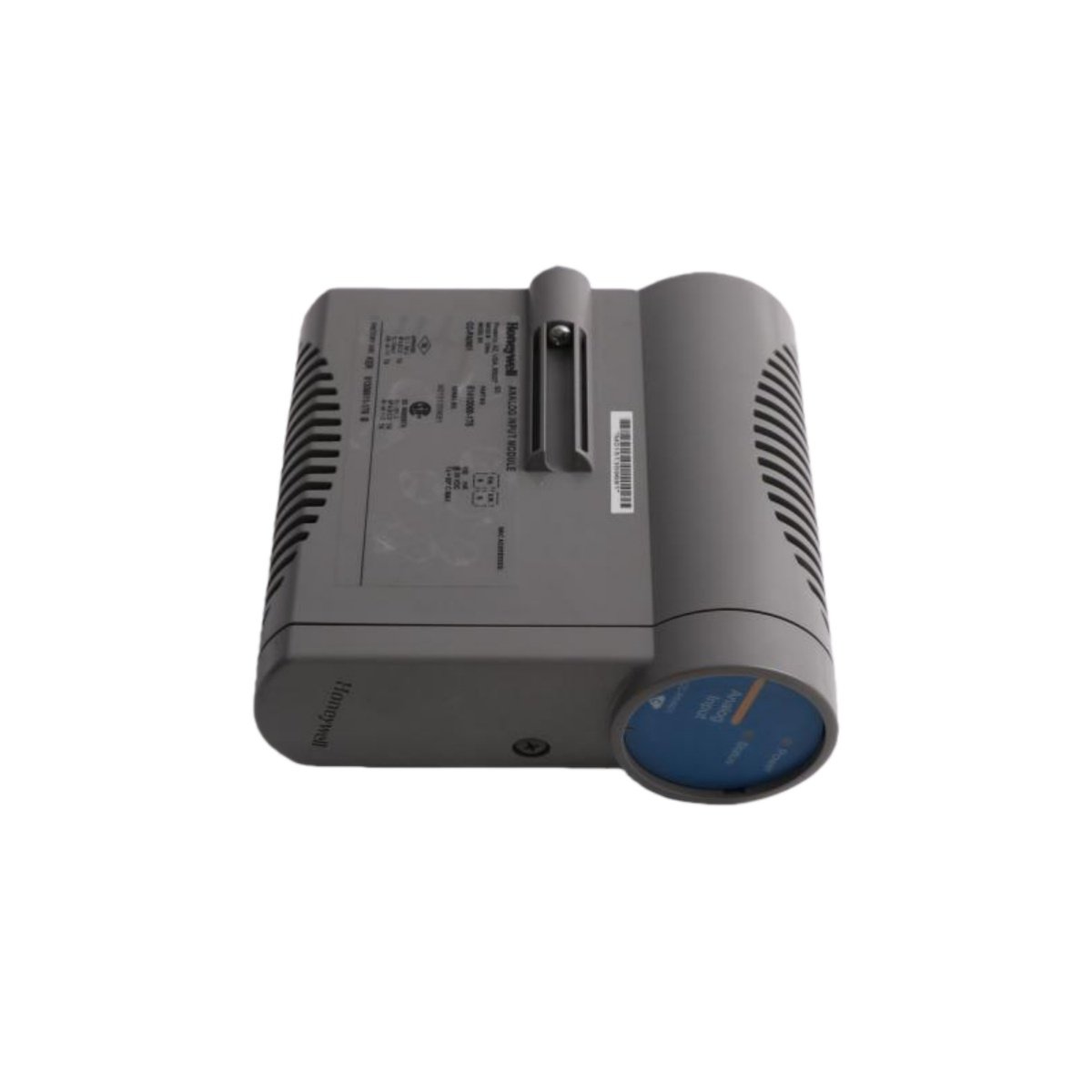

The Honeywell CC-IP0101 functions as a dedicated fieldbus communication module for the Experion Series C I/O platform. This interface module connects plant floor fieldbus devices directly to the control system without additional gateways. We engineered the CC-IP0101 to enable seamless digital communication between Honeywell controllers and intelligent field instruments from various manufacturers.

Technical Specifications

Key Features and Benefits

• Direct Fieldbus Integration: The CC-IP0101 connects PROFIBUS DP devices directly to the Experion control system. You eliminate the need for external gateways or protocol converters, simplifying network architecture and reducing hardware costs significantly.

• High-Speed Deterministic Communication: This module supports baud rates up to 12 Mbps for time-critical data exchange. Consequently, you achieve fast update times for process variables and diagnostic information from intelligent field devices.

• Comprehensive Device Support: The CC-IP0101 communicates with a wide range of PROFIBUS PA and DP instruments. You can integrate transmitters, actuators, drives, and analyzers from multiple vendors into a single unified system.

• Robust Electrical Isolation: Built-in isolation protects the control system from ground loops and electrical transients on the fieldbus network. This feature ensures reliable communication even in electrically noisy industrial environments.

• Advanced Diagnostic Capabilities: The module continuously monitors network health and device status. You receive immediate alerts for communication errors, device failures, or wiring issues, enabling proactive maintenance and reduced downtime.

Detailed Functional Description

The primary function of the Honeywell CC-IP0101 involves managing all communication between the Experion controller and PROFIBUS field devices. Specifically, it acts as a PROFIBUS DP master, controlling access to the network and exchanging cyclic data with connected slaves. The module handles all protocol overhead, including baud rate detection, slave configuration, and error handling. Furthermore, it provides acyclic communication for device parameters, diagnostics, and calibration data, giving you complete access to intelligent instrument functions.

Network Architecture and Performance

We designed the CC-IP0101 to support flexible network topologies suitable for various plant layouts. You can connect up to 125 devices on a single segment using standard PROFIBUS cables and connectors. The module automatically detects and configures to the network baud rate, simplifying installation and ensuring optimal performance. For larger installations, you can add repeaters to extend segment length or increase the total number of devices.

Configuration and Integration

Engineers configure the CC-IP0101 using Honeywell’s Control Builder software within the Experion engineering environment. The configuration process involves:

• Defining the module’s network parameters and master configuration

• Importing device description files (GSD) for each connected instrument

• Mapping process variables to controller tags for use in control strategies

• Setting up alarm and diagnostic reporting for proactive maintenance

• Configuring acyclic communication for device parameter access

Mechanical and Installation Details

The Honeywell CC-IP0101 features a compact form factor designed for easy installation in Series C I/O racks. Its front panel provides a standard DB9 connector for fieldbus connection, along with clear LED status indicators for quick visual diagnosis. The module installs in any I/O slot and communicates with the controller through the high-speed backplane. A locking mechanism secures the module firmly in place, ensuring reliable operation in vibration-prone environments.

Common Industrial Applications

The Honeywell CC-IP0101 serves as the communication backbone for digital field networks across numerous industries:

Why Choose This Module?

Selecting the Honeywell CC-IP0101 means choosing a native, high-performance fieldbus interface for your Experion control system. This module eliminates the complexity and cost of external gateways while providing full access to intelligent device data. You gain the benefits of digital communication, including improved accuracy, reduced wiring, and extensive diagnostics, all integrated directly into your control strategy. With support for up to 125 devices per module, you can build scalable networks that grow with your plant. The CC-IP0101 represents the ideal solution for plants transitioning to or expanding digital fieldbus architectures within the Honeywell ecosystem.
