Overview

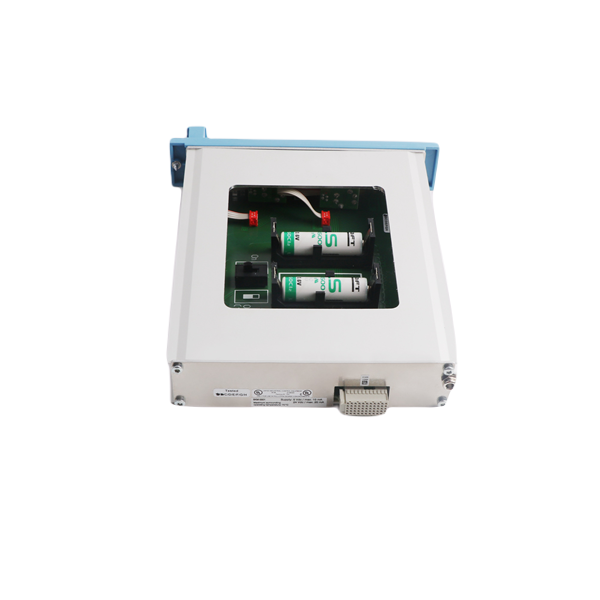

The Honeywell BKM-0001 Battery and Key Switch Module is a key component used within the Controller chassis, referenced as “CPCHAS-0001” or “CPCHAS-0002”. Each controller chassis — including redundant configurations — contains one BKM-0001 module only. It provides secure power backup and manual control functionality, ensuring system reliability even during power or logic interruptions.

The module includes two SAFT lithium batteries (one for each control processor), a Force Enable key switch, a Reset key switch, and three 24 Vdc general-purpose inputs (IN1, IN2, IN3) located on the controller backplane. Together, these features help maintain continuous operation and facilitate safe system resets when needed.

Key Features

• Dual Battery Design: Provides backup for both control processors, ensuring continuous operation.
• Force Enable and Reset Switches: Allow operators to manually enable or reset the system when required.
• Integrated 24 Vdc Inputs: Three configurable inputs (IN1–IN3) support flexible control logic and diagnostics.
• High Reliability: Designed to operate in demanding industrial environments with full CE, UL, CSA, FM, and TUV approvals.

Technical Data

Power Supply

• 24 Vdc Supply Voltage: 24 Vdc (–15% to +30%)
• 24 Vdc Supply Current: Max 20 mA, typically 7 mA
• 5 Vdc Supply Voltage: ±10%
• 5 Vdc Supply Current: Max 10 mA
• +24V_red Output Supply Voltage: 14–31 Vdc
• Output Resistance: Approx. 2 × 1.1 kΩ (parallel)
• Short Circuit Protection: Continuous

Input Specifications

• Voltage (High): 14–35 Vdc
• Voltage (Low): <7 Vdc (reverse polarity protected)
• Input Current: 2.3 mA at 24 Vdc
• Input Filters:
  • IN1: 0.1 ms typical
  • IN2 & IN3: 10 ms typical

Battery Details

Physical Dimensions

• Dimensions: 176 × 35.2 × 212 mm (H × W × D)
• Dimensions (inches): 6.93 × 1.4 × 8.35 in
• Weight: 500 g

Applications

The Honeywell BKM-0001 Module is commonly used in critical control systems, including energy management and industrial automation. Furthermore, it ensures consistent performance for Honeywell process controllers that rely on secure backup power and manual override functionality. In addition, its robust design and wide temperature range make it suitable for harsh field environments.
