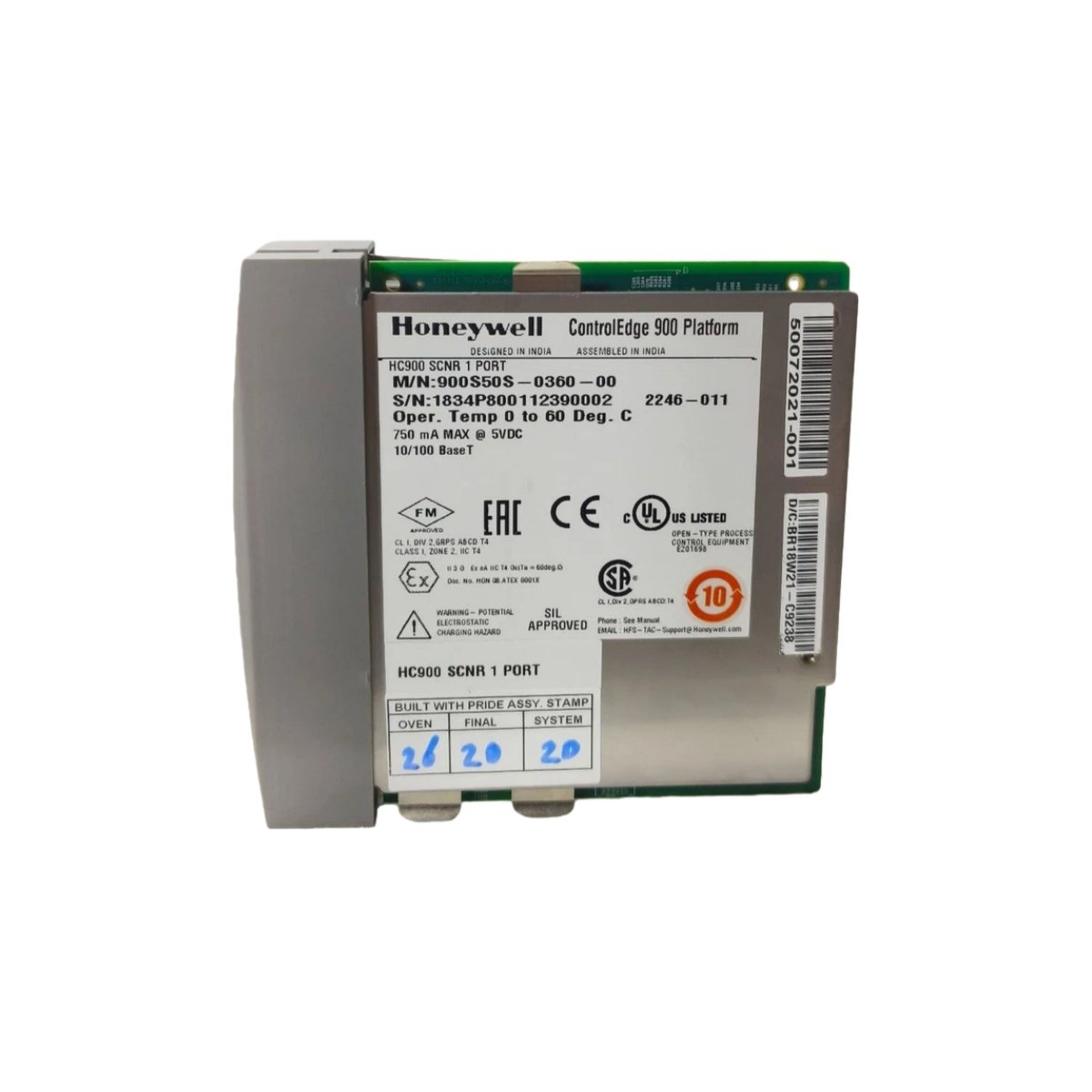

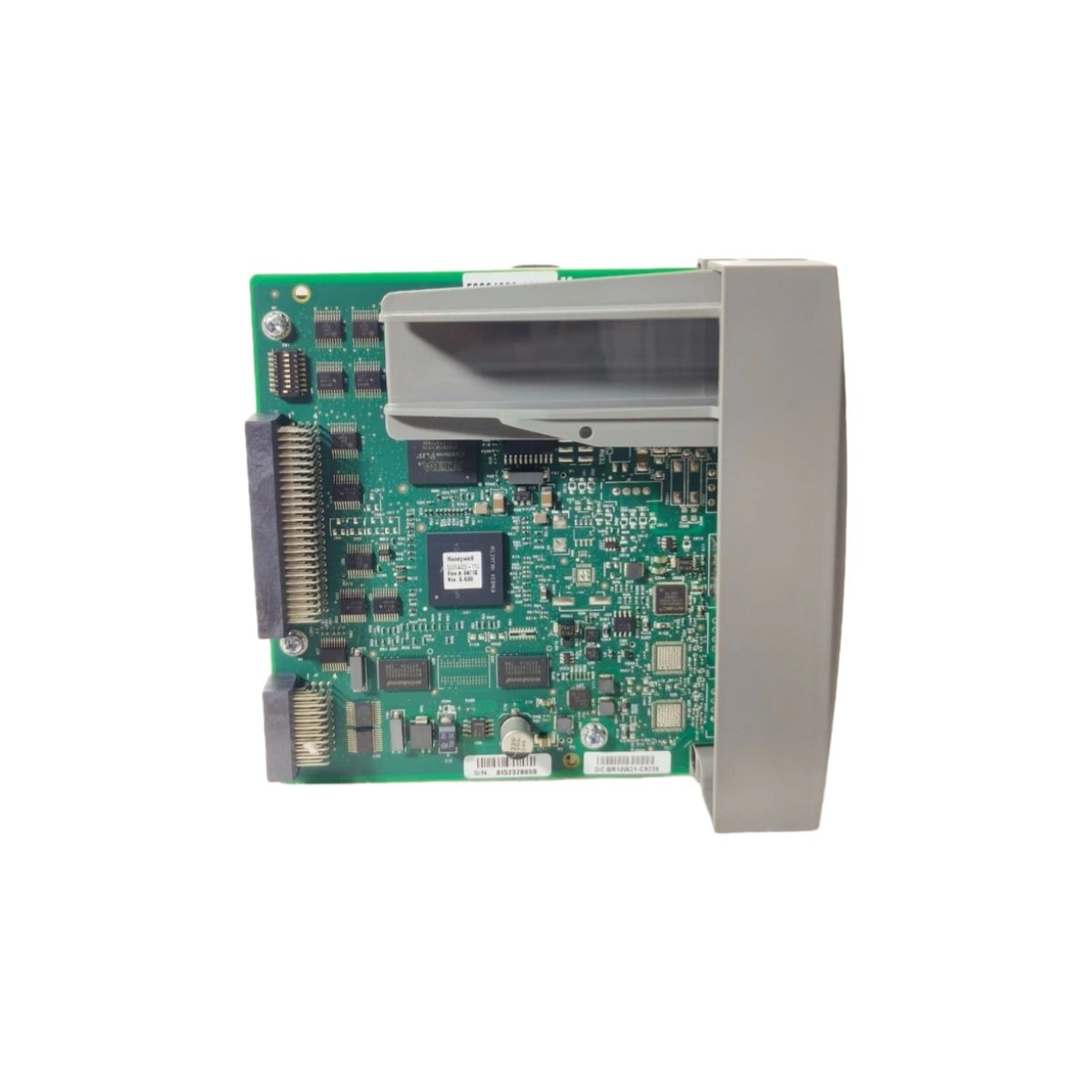

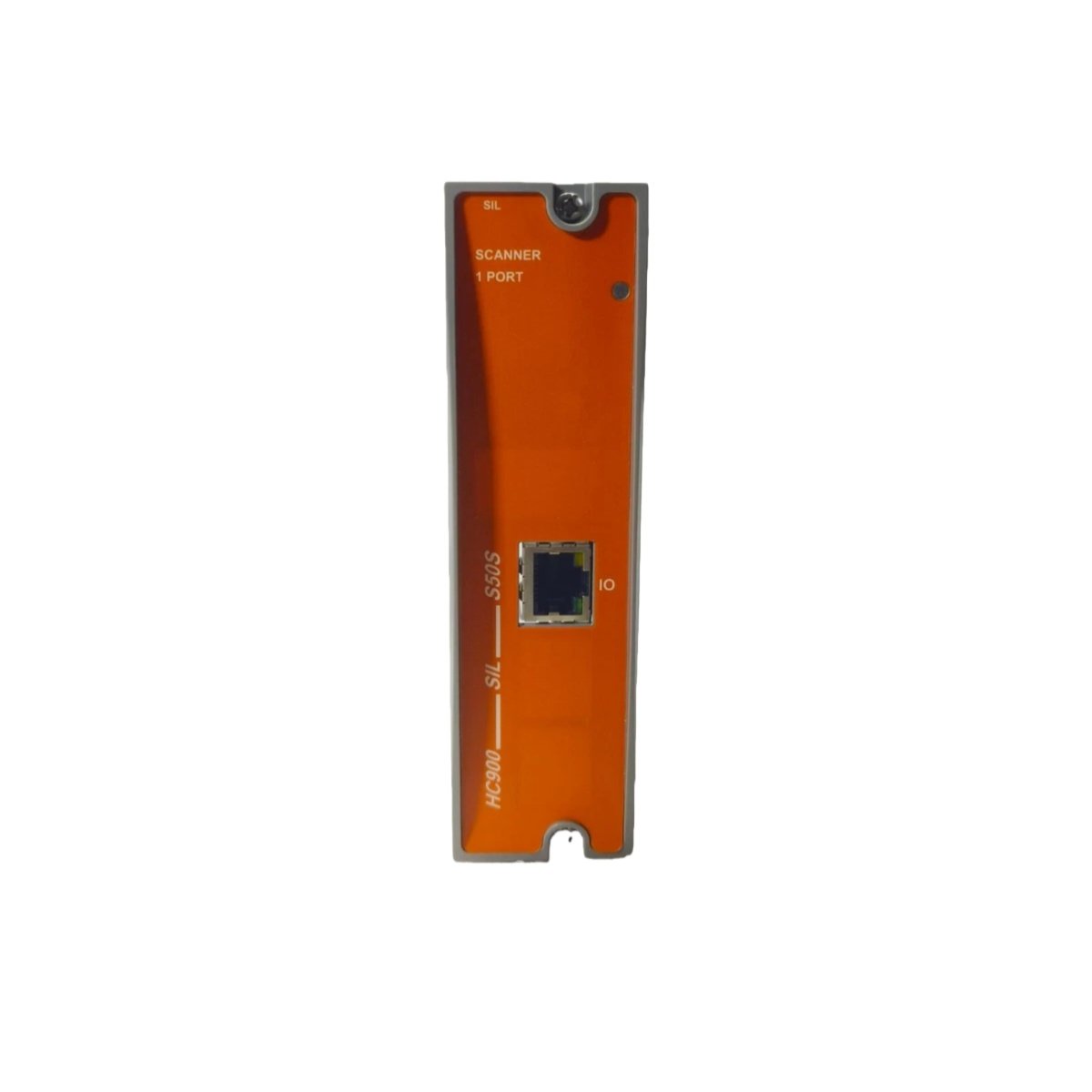

The Honeywell 900S50-0360-00 functions as a compact 1-port I/O scanner module within the ControlEdge HC900 controller system. This unit enables efficient communication between the main processor and distributed remote I/O racks. Consequently, it provides reliable data exchange for mid-sized industrial automation applications.
Technical Specifications and Physical Design
Control system integrators require precise specifications for panel layout and network configuration. Therefore, we present the complete technical data for the Honeywell 900S50-0360-00:
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Type | 1-Port I/O Scanner Module |
| Series | ControlEdge HC900 |
| Part Number | 900S50-0360-00 |
| Communication Ports | 1 x Ethernet port |
| Port Speed | 10/100 Mbps auto-negotiating |
| Connector Type | RJ45 with shielded housing |
| Protocol Support | Industrial Ethernet |
| Isolation | Electrical isolation provided |
| Redundancy Support | Supported with optional module |
| Dimensions | 120 mm x 70 mm x 55 mm |
| Weight | 0.36 kg |
| Power Consumption | 150 mA at 5 VDC, 75 mA at 24 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Country of Origin | USA |
| Warranty | 12 months standard |
| Mounting Style | HC900 controller rack |
Advanced Communication Features
The 900S50-0360-00 facilitates remote I/O communication over industrial networks through its single Ethernet port. Additionally, its compact design saves valuable space within dense control cabinet layouts. This module supports failover configurations with optional redundancy modules for critical applications. You can integrate this scanner with protection devices like the RMS TSG TZ C static trip unit for comprehensive system monitoring. Furthermore, the Honeywell 900S50-0360-00 provides seamless plug-and-play integration within HC900 systems.
System Integration and Reliability
This I/O scanner ensures continuous operation in harsh environments through its industrial-grade component selection. Its electrical isolation protects sensitive control circuits from ground loops and voltage transients. The 900S50-0360-00 meets international safety and performance standards for global deployment. Engineers can configure the module easily through the HC900 engineering environment. Typical applications include packaging lines, water treatment, material handling, and building automation systems.
Installation and Configuration Guidelines
Mount the Honeywell securely into any designated HC900 rack slot for immediate operation. Connect the Ethernet port to your industrial network switch using shielded CAT5 cable. Configure network parameters through the HC900 controller configuration software. Finally, verify communication with remote I/O racks before placing the system into service.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
