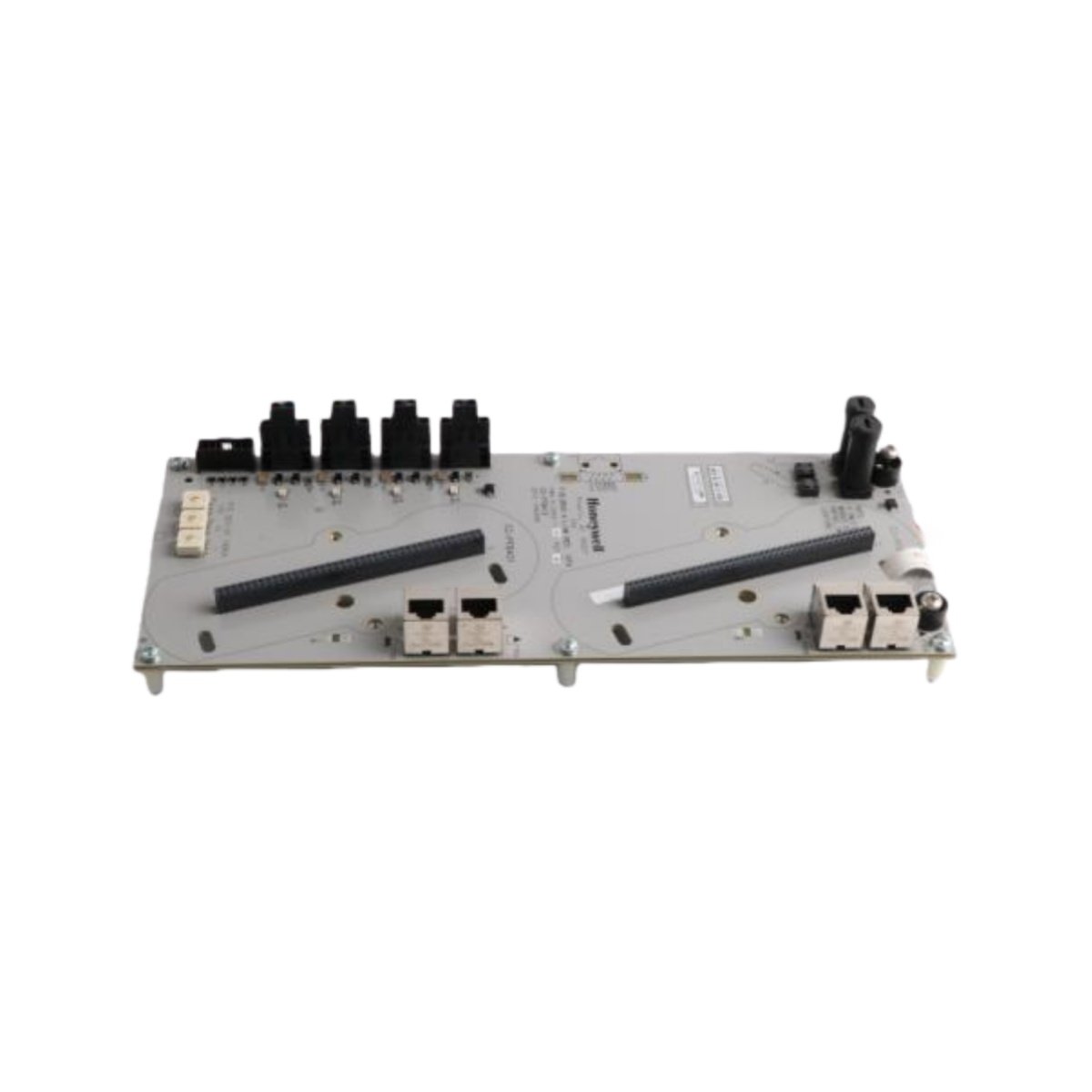

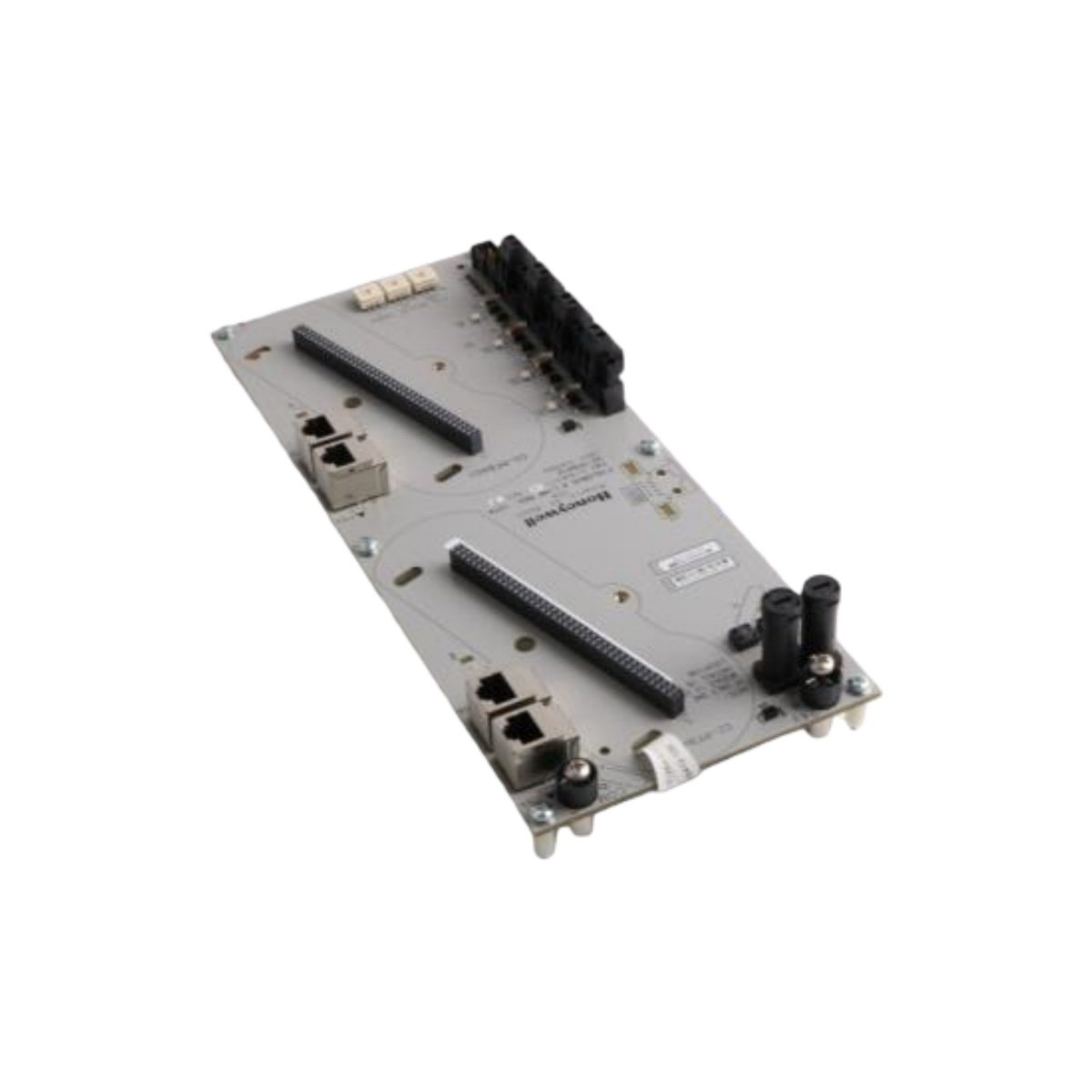

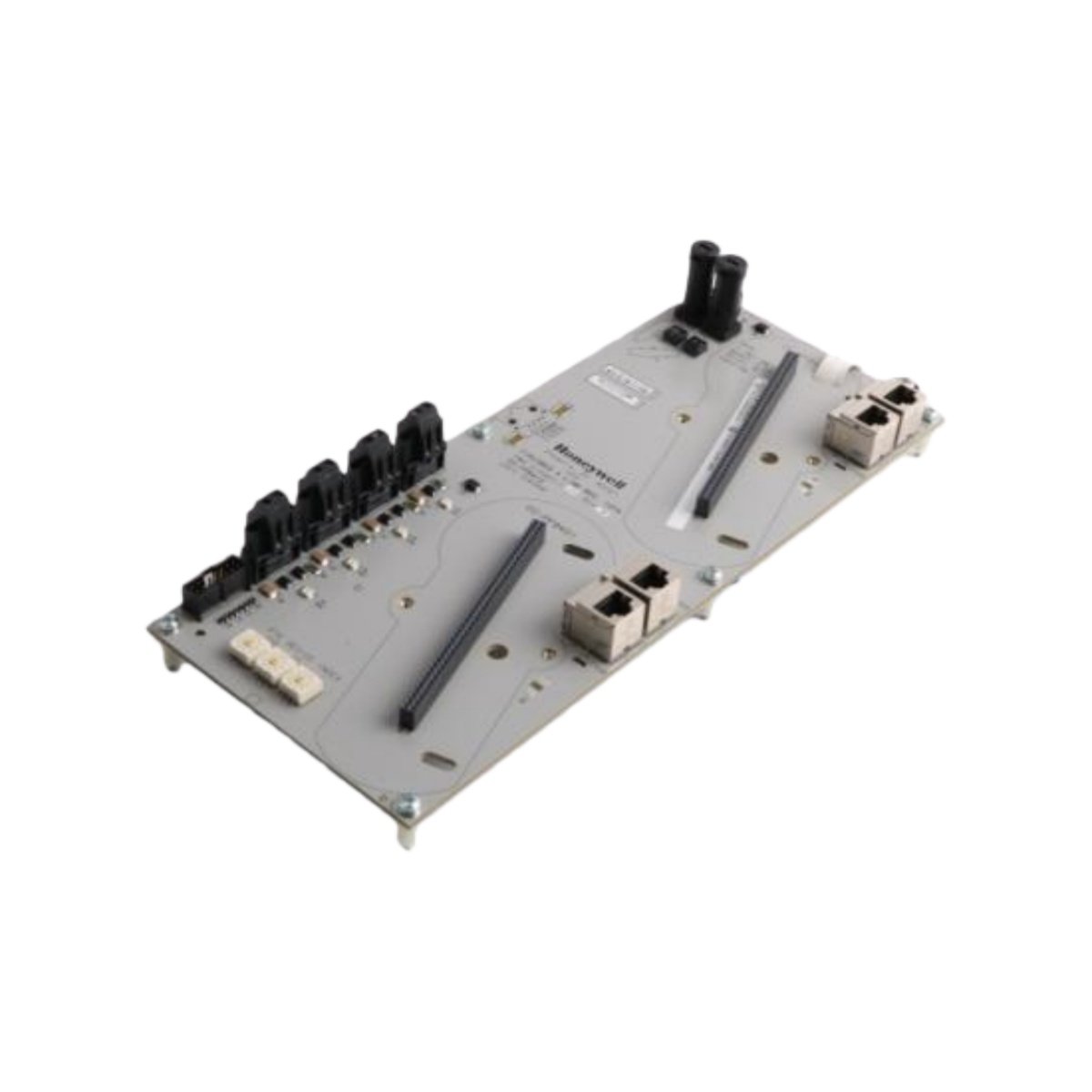

The Honeywell 900RTA-L001 Remote Terminal Panel organizes and protects field wiring for analog input modules. This specialized RTP efficiently interfaces various two-wire transmitters and resistance temperature detectors (RTDs) with your control system. Consequently, it significantly simplifies installation, maintenance, and troubleshooting processes.
Core Wiring Management and Safety Features
This panel features switch-selectable shunt resistors for flexible current loop configurations. Moreover, its common power supply terminals include individual 80 mA time-lag fuses for each transmitter circuit. Therefore, you can safely power multiple field devices while providing essential overcurrent protection. A master power switch also disconnects all transmitters for safe module maintenance.
Detailed Technical Specifications
The table below details the electrical, accuracy, and functional parameters of the 900RTA-L001.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 900RTA-L001 |
| Product Type | Remote Terminal Panel (RTP) |
| Primary Function | Field Wiring Interface for Analog Input Modules |
| Compatible Signals | 4-20mA, RTD, 0-10mV (Not for Thermocouples) |
| Shunt Resistors | Switch-selectable, for current loop simulation |
| Transmitter Power | Common supply terminals, selectable per circuit |
| Fuse per Circuit | 80 mA, Time-lag type |
| Master Power Switch | Yes, disconnects all transmitter power |
| Wiring Advantage | Expands shared terminals, minimizes wires per screw |
| Accuracy Derating (Typ.) | See specific ranges below |
| Mounting Style | Designed for rack or panel mounting |
| Terminal Type | Screw terminal blocks |
| Operating Temperature | Standard industrial range (e.g., 0-60°C) |
Accuracy Derating for Specific Input Types
The panel introduces minimal but defined signal accuracy derating which you must account for in system design.
100 Ohm Platinum RTD: +0.14% of range
JIS Standard RTD: +0.22% of range
10 Ohm Copper RTD: +0.67% of range
200 Ohm RTD: +0.17% of range
0 – 10 mV Input: +0.14% of range
Application Benefits and Integration Notes
Using this RTP drastically reduces wiring errors and saves cabinet space through efficient terminal sharing. Furthermore, the fused, switchable power enhances both safety and operational flexibility during diagnostics. This panel is ideal for dense analog input applications in process industries. For comprehensive system protection, ensure proper integration with monitoring and trip devices like the RMS-TSG-TZ-C Static Trip.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 30 × 313 × 278 mm |
