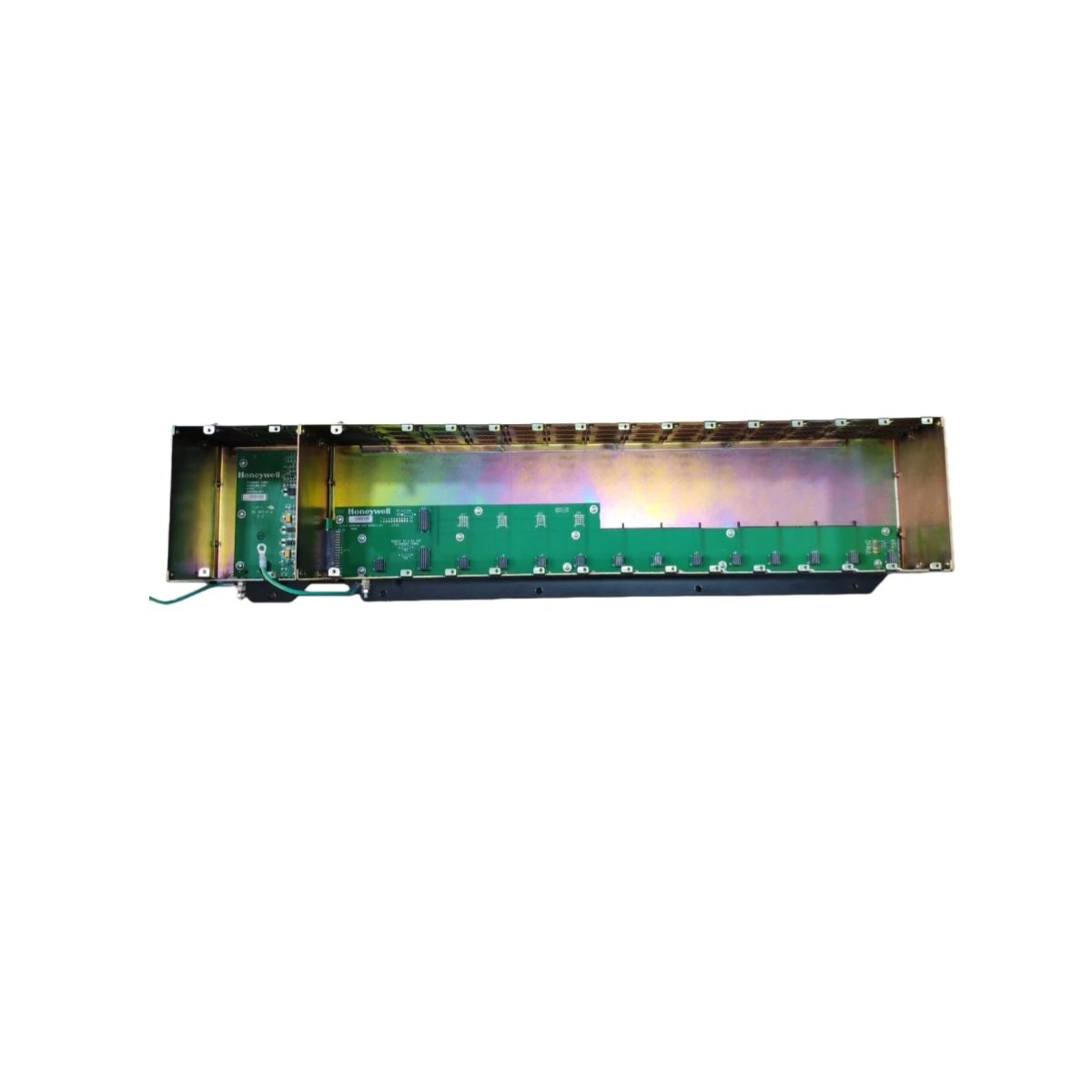

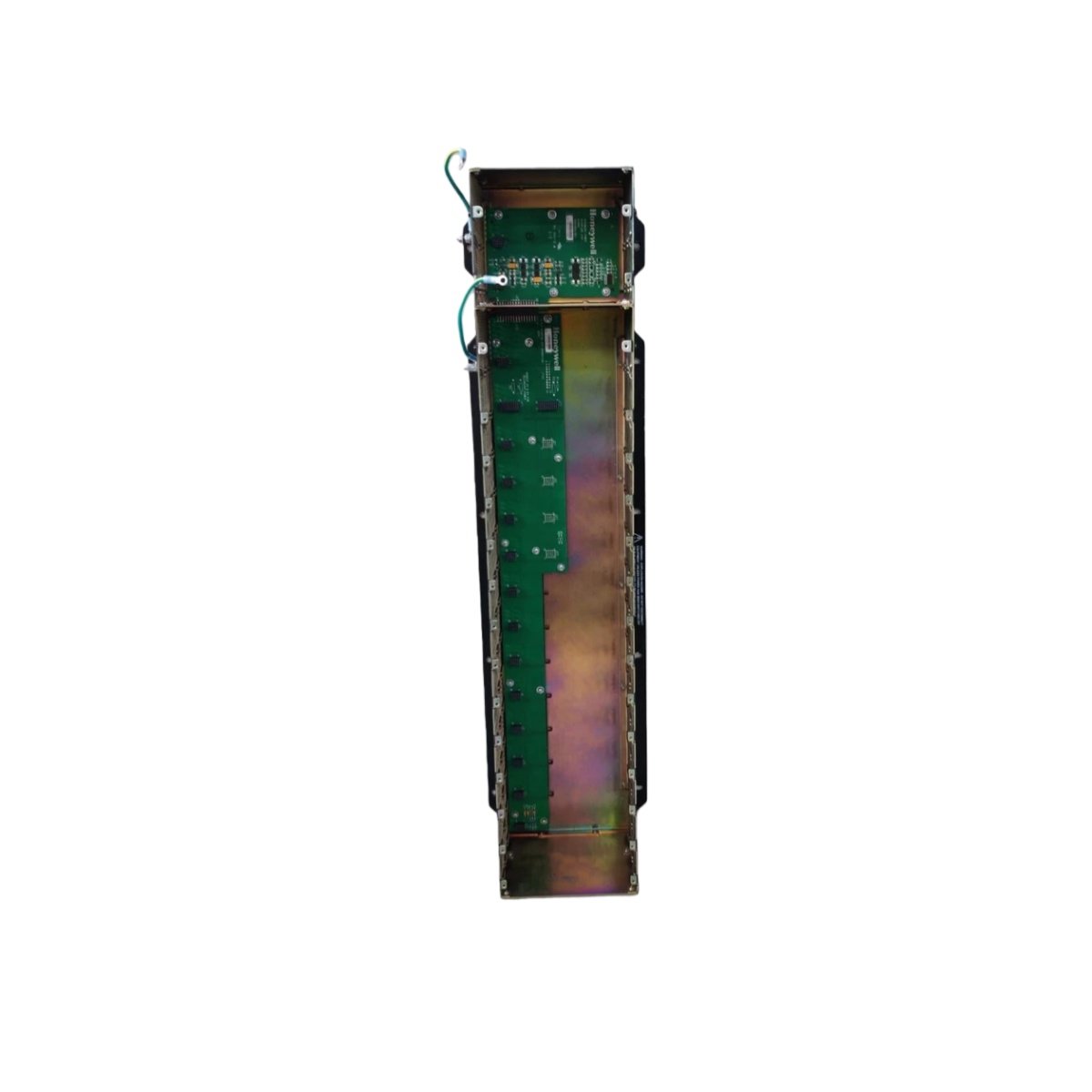

The Honeywell 900R12R-0101 functions as a 12-position I/O slot rack assembly for HC900 controller systems. This rack provides mechanical mounting and electrical backplane connections for I/O modules. It includes an integrated redundant power supply for enhanced system reliability. The 900R12R-0101 delivers both 5 VDC and 24 VDC power to installed modules. Engineers use this assembly to build robust and fault-tolerant control solutions.

Technical Specifications and Physical Characteristics

Precise technical specifications enable proper installation of the Honeywell 900R12R-0101 in control cabinets. The rack’s design accommodates up to 12 I/O modules in a single assembly.

Redundant Power Supply Architecture

The 900R12R-0101 incorporates two independent power supplies for critical redundancy requirements. Each supply provides 2 Amps at 5 VDC and 6 Amps at 24 VDC continuously. The system automatically shares load between both supplies under normal operation. If one supply fails, the remaining unit immediately supports the full load. This transition occurs without any interruption to connected I/O modules. The redundant design ensures continuous operation during power supply maintenance or failure.

Dual Voltage Power Distribution

The rack assembly distributes both 5 VDC and 24 VDC power to all 12 I/O positions. Digital logic circuits in I/O modules draw power from the 5 VDC rail. Field-side circuits and discrete outputs utilize the 24 VDC supply extensively. Analog modules often require both voltages for proper operation. This dual-voltage architecture matches the requirements of HC900 I/O modules perfectly. Engineers can mix module types freely within the 12 available slots.

Mechanical Design and Mounting Features

The Honeywell 900R12R-0101 conforms to standard 19-inch rack mounting dimensions. Its 3U height fits efficiently into standard industrial control cabinets. I/O modules plug directly into the backplane with positive mechanical latching. Front-access terminal blocks simplify wiring and maintenance procedures significantly. The rack’s depth of 150 mm allows installation in shallow enclosures. Natural convection cooling eliminates moving parts for improved reliability.

Seamless Integration with HC900 Controllers

Engineers integrate the 900R12R-0101 directly with Honeywell HC900 controller CPUs and accessories. The rack connects to the controller through dedicated expansion cables. Multiple racks can connect in series for larger I/O counts. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this rack ensures system integrity. Each of the 12 slots accepts any HC900 I/O module type. This flexibility supports diverse application requirements within a single assembly.

Application Versatility in Process Control

The 900R12R-0101 suits a wide range of industrial process control applications effectively. Common uses include chemical processing, water treatment, and manufacturing automation. Redundant power supplies prove essential for critical process safety systems. The 12-position capacity accommodates substantial I/O counts in a compact footprint. Engineers appreciate the combination of mechanical robustness and electrical reliability. This I/O rack represents a fundamental building block for HC900 control systems.
