Product Overview

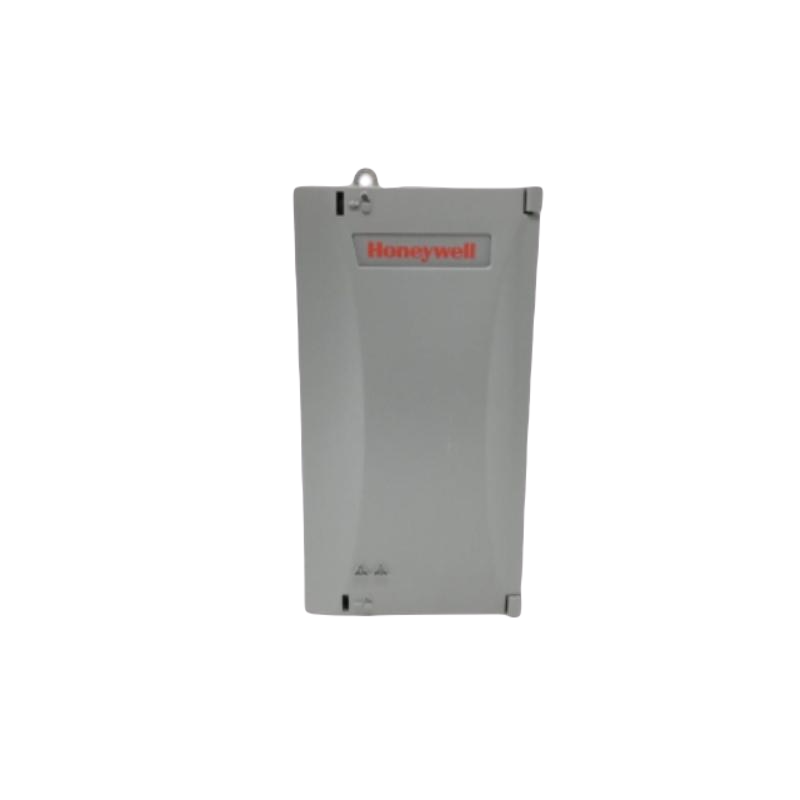

The Honeywell 900P01-0601 Power Supply Module delivers reliable 5VDC and 24VDC outputs for various automation systems. With a 60W power capacity, it supports multiple I/O modules in a single rack, making it ideal for systems with controllers, local and remote I/O modules, and scanners.

Key Features

• Input Power: Universal AC input of 90-264VAC at 47-63 Hz, ensuring compatibility with different power systems.
• Output Power: Provides stable 5VDC and 24VDC outputs for efficient system operation.
• Output Capacity: Delivers 60W of power, supporting a broad range of I/O module configurations within a single rack.
• Hold-Up Time: Provides 20 ms of hold-up time at maximum load (115VAC, 60Hz), maintaining power during short interruptions.
• Fuse: Equipped with an internal, non-replaceable fuse to limit current under fault conditions, ensuring safety.
• Test Jacks: Features test jacks for quick and easy verification of 5VDC and 24VDC outputs.
• Tool-secured Door: The cover ensures safety by securing high-voltage connections.

Wiring and Electrical Characteristics

• Wiring Type: Uses screw-type terminals, compatible with wire gauge #12-22 AWG, ensuring secure connections.
• Inrush Current: 7A peak-to-peak for 150 ms at 240VAC, ensuring safe operation during start-up.
• Input Rating: 130VA input rating for efficient energy conversion.
• Operating Voltage: Compatible with 90-264VAC input, making it versatile for different industrial environments.
• Output Rating: Delivers 60W with 5VDC and 24VDC outputs for versatile power requirements.

Dimensions and Weight

Applications

• Automation Systems: Ideal for powering controllers, local I/O, scanners, and remote I/O modules within industrial automation systems.
• Power Distribution: Provides essential power to a range of I/O modules, ensuring seamless system operation in various industrial environments.

Frequently Asked Questions (FAQ)

Q1: What is the input power range for the Honeywell 900P01-0601?
A1: The 900P01-0601 accepts a universal AC input of 90-264VAC at 47-63 Hz, making it compatible with various power systems.

Q2: What is the output capacity of this power supply module?
A2: The Honeywell 900P01-0601 provides a 60W output capacity with 5VDC and 24VDC to support a wide range of I/O modules.

Q3: How long is the hold-up time for the 900P01-0601 power supply?
A3: The 900P01-0601 offers a 20 ms hold-up time at maximum load (115VAC, 60Hz) to maintain power during short interruptions.

Q4: What type of wiring does the Honeywell 900P01-0601 support?
A4: The module uses screw-type terminals compatible with wire gauge #12-22 AWG, ensuring reliable and secure connections.

Q5: Is the 900P01-0601 equipped with safety features?
A5: Yes, it features an internal non-replaceable fuse to protect against overcurrent and a tool-secured door to cover high-voltage connections for safety.
