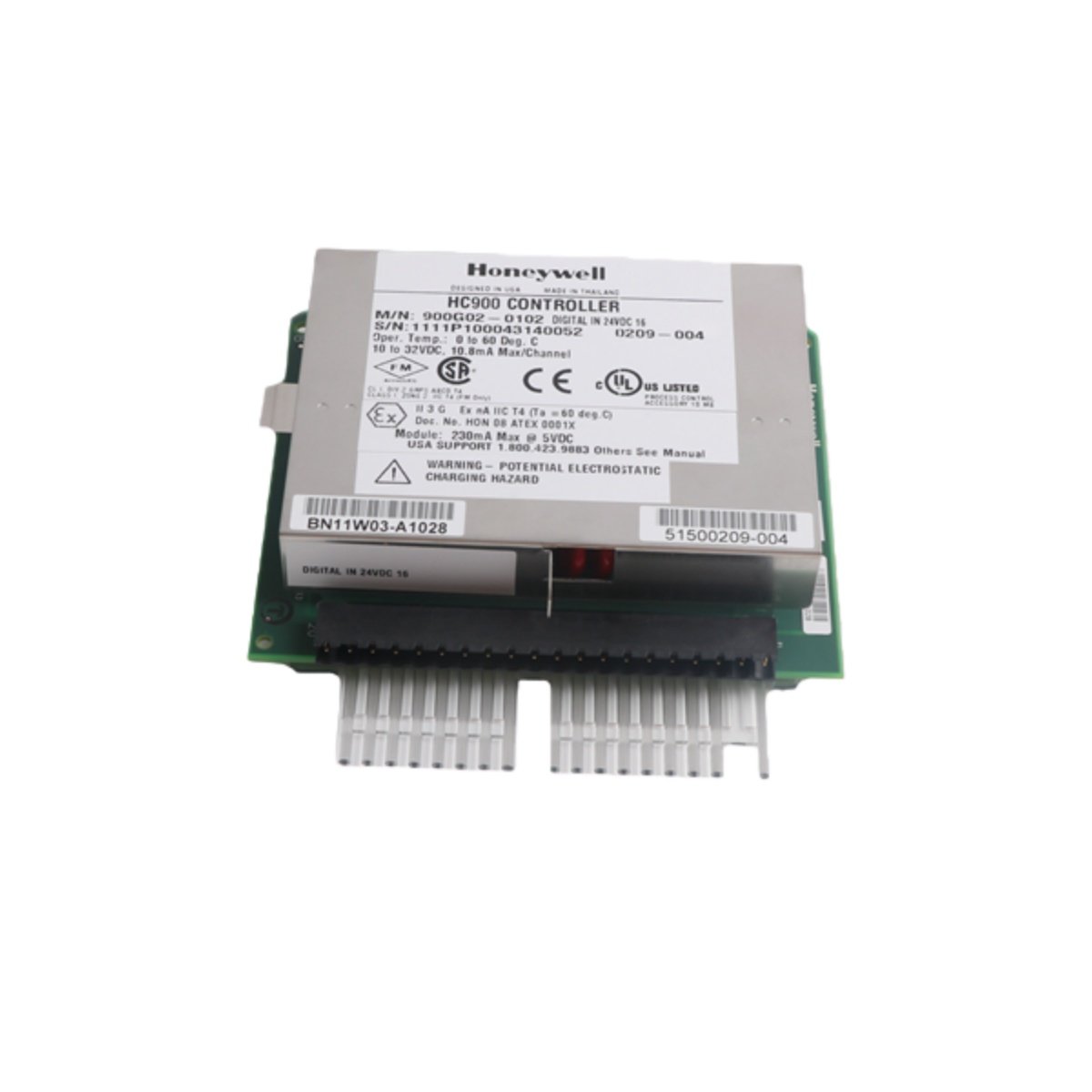

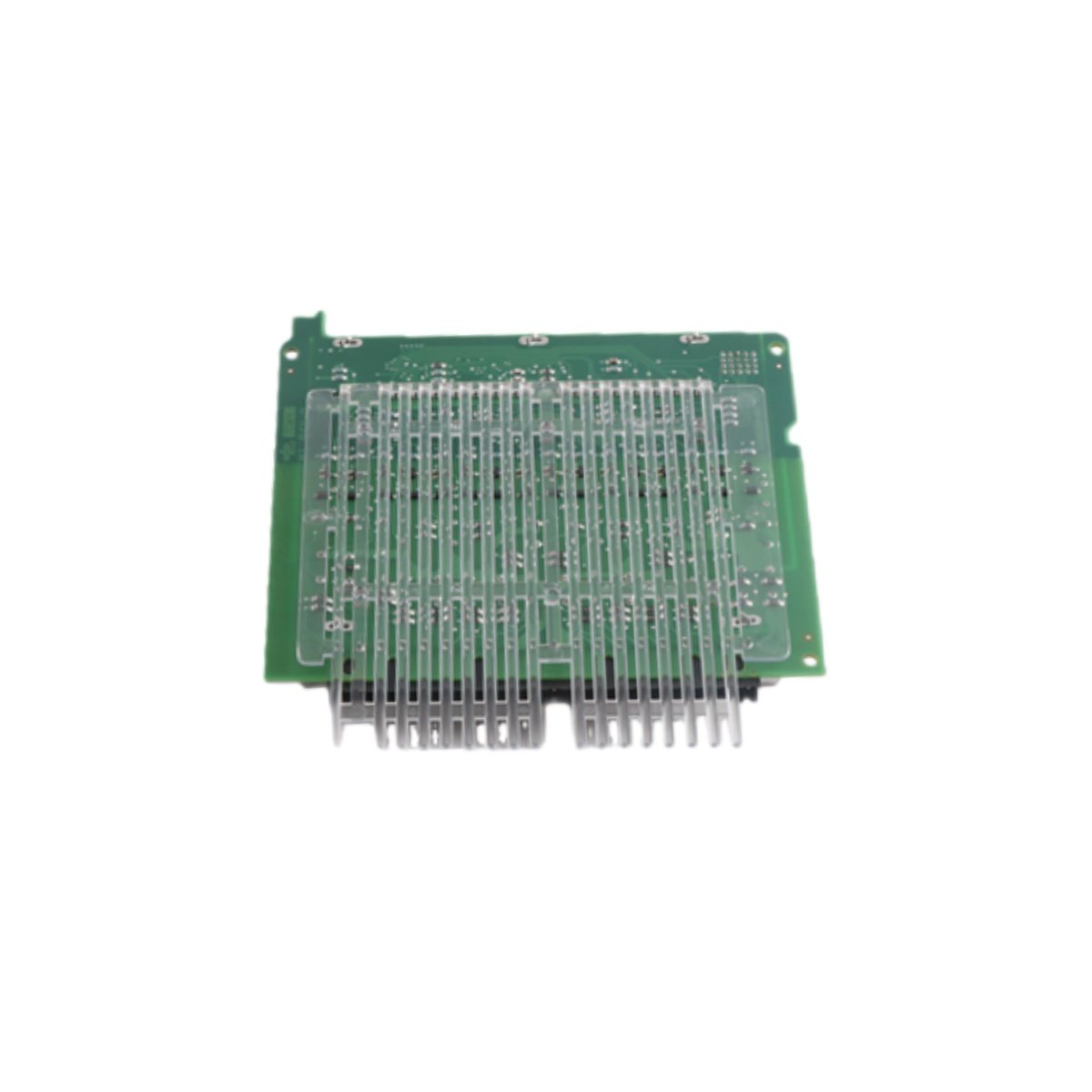

The Honeywell 900G02-0102 serves as a high-performance digital input module for industrial automation systems. It reliably interfaces field devices with the control system for precise monitoring. This module belongs to the Honeywell Series 900 family, ensuring seamless integration. You can depend on its robust design for consistent signal acquisition in demanding environments.
Key Technical Specifications
We engineered the Honeywell 900G02-0102 to deliver accurate digital signal processing across multiple channels. Its compact form factor allows for high-density installation within control panels. The following table details the precise technical parameters of this input module.
| Specification | Detail |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 900G02-0102 |
| Product Type | Digital Input Module |
| Channel Count | 16 Channels |
| Input Type | Sourcing/Sinking (Configurable) |
| Input Voltage Rating | 24 VDC |
| Isolation Voltage | 1500 VAC (Field-to-Logic) |
| Operating Temp. | -40°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Dimensions (HxWxD) | 102 mm x 22.5 mm x 115 mm |
| Weight | 0.15 kg |
| Power Consumption | < 2 W (Typical) |
| Terminal Type | Removable Screw Terminal |
Detailed Functional Overview
This module provides 16 individually configurable input channels for flexible field wiring arrangements. It accepts 24 VDC signals from various field devices like limit switches and proximity sensors. The Honeywell 900G02-0102 features optical isolation of 1500 VAC, protecting the backplane from voltage spikes. Consequently, this ensures reliable operation even in electrically noisy industrial environments.
Mechanical Design and Integration
The Honeywell 900G02-0102 boasts a slim profile of only 22.5 mm in width, saving valuable panel space. Weighing a mere 0.15 kg, it places minimal mechanical stress on the mounting hardware. Furthermore, it uses removable screw terminals, which significantly simplifies wiring and maintenance tasks. You can quickly replace or install the module without disconnecting field wiring.
Environmental Resilience and Compatibility
Engineers designed this input module to withstand extreme conditions with a -40°C to +70°C operating range. It consumes less than 2 watts of power, contributing to lower overall system heat generation. As part of the Honeywell Series 900 system, it integrates perfectly with related components like controllers. For other industrial control products, you might also review the RMS TSG TZ C Static Trip unit available through our partners.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 30 × 313 × 278 mm |
