Reliable Signal Interface for Industrial Control Systems

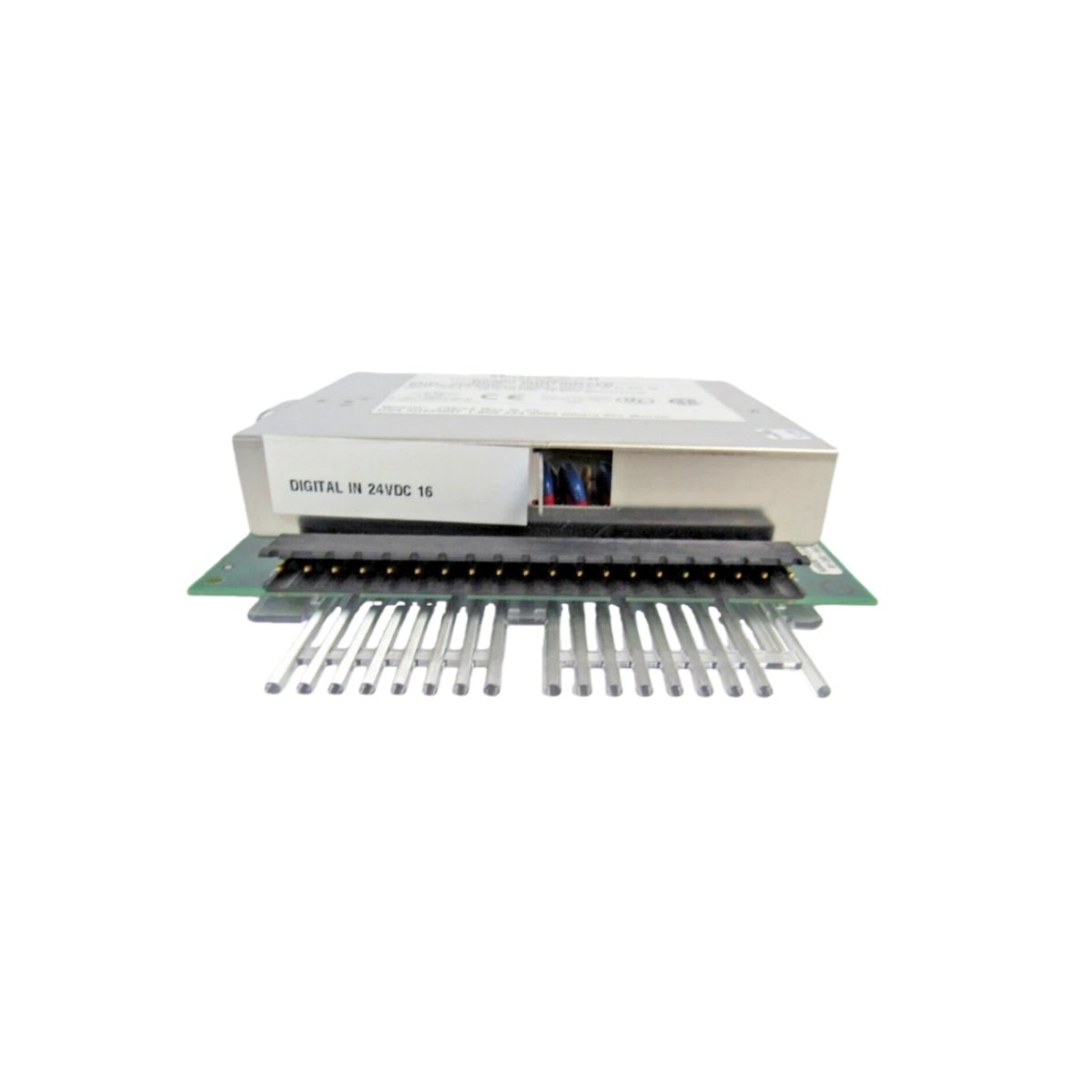

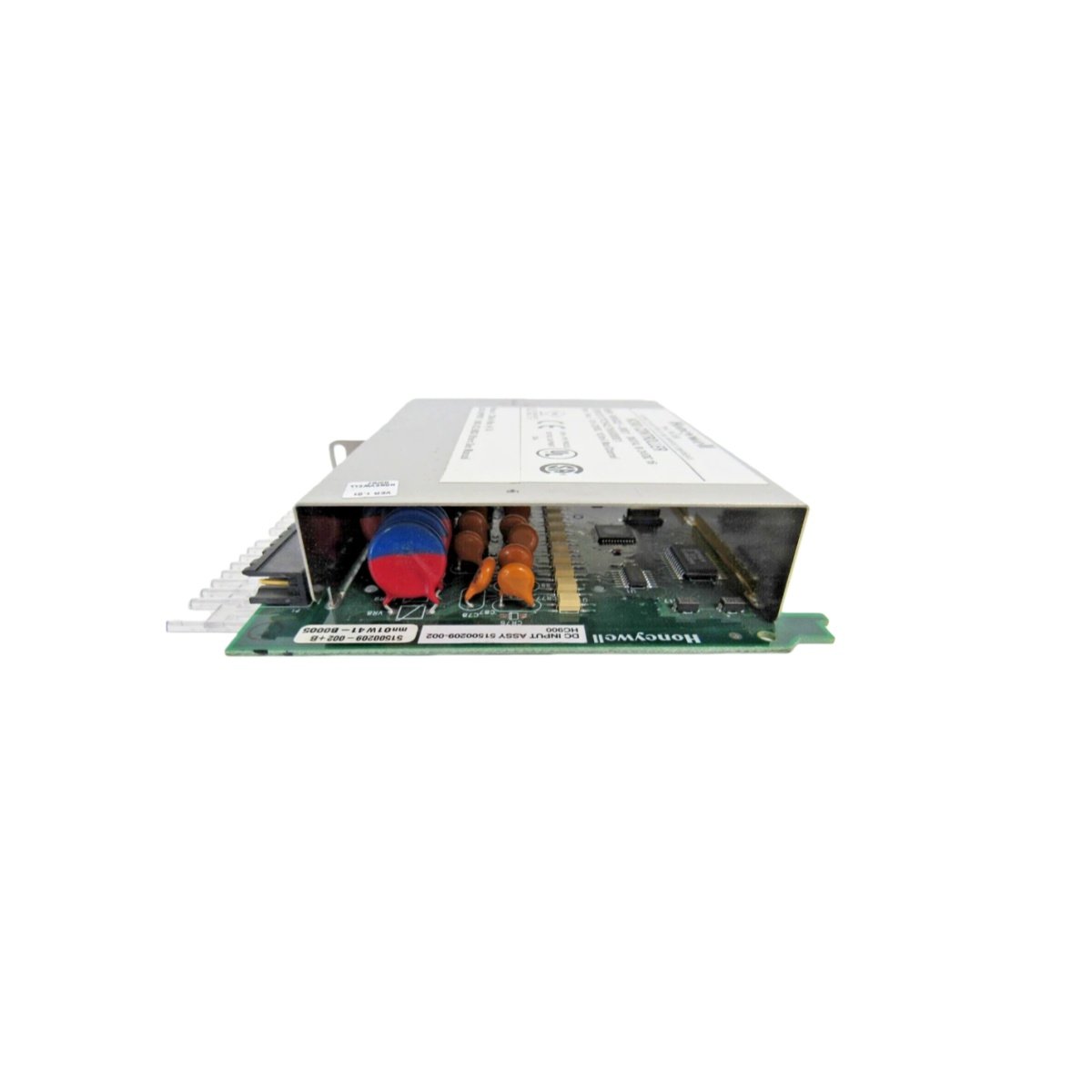

The Honeywell 900G02-0001 is a robust digital input module for process control systems. It provides sixteen sinking inputs for efficient monitoring of field devices. This module belongs to the versatile Honeywell 900 Series I/O family. Consequently, it ensures reliable signal processing within Honeywell’s control architectures.
Technical Specifications and Electrical Characteristics
Engineered for industrial durability, the 900G02-0001 offers precise electrical performance. Its design includes two isolated groups of eight inputs for flexible wiring. Furthermore, the module features clear status indicators for quick diagnostics and troubleshooting.
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 900G02-0001 |
| Product Series | Honeywell 900 Series I/O |
| Product Category | DC Digital Input Module (Sinking) |
| Total Number of Inputs | 16 |
| Input Group Configuration | 2 Groups of 8 Inputs (Galvanically Isolated) |
| Input Type | Sinking (Current flows into the module) |
| Operating Voltage Range | 10 VDC to 32 VDC |
| Absolute Maximum Peak Voltage | 32 VDC |
| Isolation Voltage (Group-to-Group) | 42.4 VDC Maximum |
| ON State Voltage Level | Minimum 9.5 VDC |
| OFF State Voltage Level | Maximum 3.5 VDC |
| Nominal Input Impedance | 2.6 kΩ |
| Input Current @ 12 VDC | 2.3 mA (Nominal) |
| Input Current @ 24 VDC | 6.9 mA (Nominal) |
| Minimum ON State Current | 1.0 mA |
| Maximum OFF State Current | 0.7 mA |
| Response Time (OFF to ON) | 4 ms Maximum |
| Response Time (ON to OFF) | 4 ms Maximum |
| Power Supply Loading (+5V Logic) | 130 mA Maximum |
| Power Supply Loading (+24V Field) | 0 mA (Externally Powered Inputs) |
| Module Dimensions | Standard 900 Series form factor |
| Status Indication | 16 Green Channel LEDs + Module Status LEDs |
| Logic Feature | State Inversion supported via controller configuration |
Key Features and System Integration
This module connects directly to field devices like push buttons, limit switches, and relays. Its dual isolated input groups help prevent ground loop issues in complex systems. Each of the sixteen channels features a dedicated green LED for visual ON/OFF status. Moreover, the module supports logic state inversion through the host controller software. This provides application flexibility for both normally-open and normally-closed devices.
Application Context and Operational Reliability
The 900G02-0001 is ideal for monitoring discrete events in industrial automation. It reliably interfaces with safety interlocks, position sensors, and motor run feedback signals. The module’s wide operating voltage range accommodates typical 12V and 24V DC control circuits. Its fast 4ms response time ensures timely detection of state changes. Therefore, it is a dependable component for machine control, process sequencing, and status monitoring.
Installation and Configuration Notes
Install the module in a compatible Honeywell 900 Series I/O rack or baseplate. Field wiring connects to the module’s terminal blocks according to the grouping scheme. The 900G02-0001 does not supply power to the field devices; it requires an external source. Configuration of inversion logic and filtering occurs within the system’s control programming software.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
