Overview

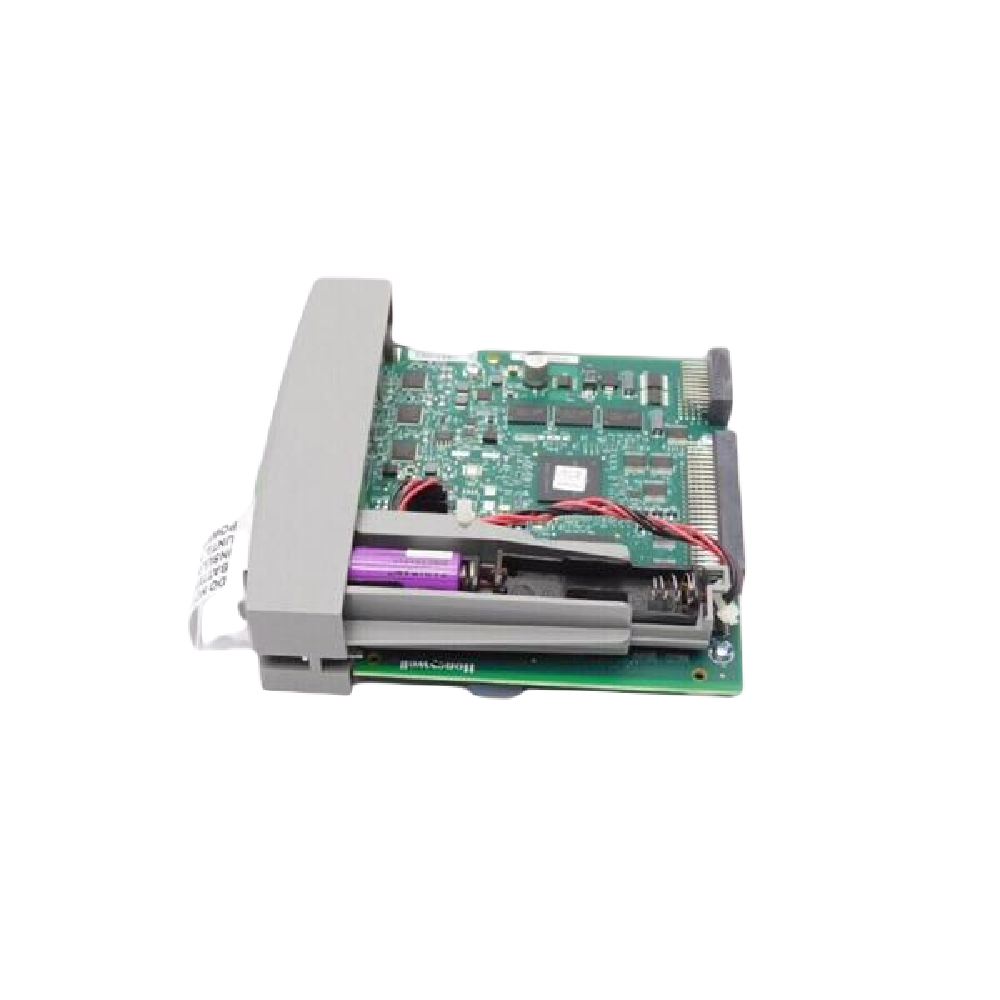

The Honeywell 900C70-0360-00 C70 CPU actively manages process automation tasks for HC900 Controller systems. It supports up to 1920 I/O points and executes advanced function block programming with scan times as fast as 27 ms. Moreover, the modular design allows system expansion through 4-, 8-, or 12-slot racks, providing engineers flexible integration options. Dual Ethernet and RS-485/RS-232 interfaces enable high-speed data exchange via Modbus/TCP, OPC, and Peer-to-Peer protocols. Therefore, this CPU is ideal for both local and distributed control environments.
Key Benefits
- High Performance: Supports 5000 logic blocks including PID, cascade, duplex, and carbon % functions.
- Rapid Control Cycles: Executes control scans in as little as 27 ms, depending on logic density.
- Auto-tuning Capability: Integrated Accutune III fuzzy logic minimizes overshoot and stabilizes temperature.
- Redundant Networking: Dual Ethernet ports allow redundant network configurations with up to 10 host connections.
- Advanced Sequencing: Offers 50-segment profiles, 64-step sequencers, and recipe management for complex processes.
- Environmental Tolerance: Operates effectively between 0–60°C with up to 95% non-condensing humidity.
In addition, multiple power configurations ensure uninterrupted operation under challenging industrial conditions.
Technical Data
| Parameter | Details |
|---|---|
| I/O Capacity | 1920 total (960 AI, 200 AO, 960 expandable) |
| Power Supply Options | P01: 90–264 VAC / 60W; P02: 90–264 VAC / 28W; P24: 21–29 VDC / 60W |
| Communication | 2×Ethernet (10/100Base-T), RS-232, RS-485 |
| Protocols | Modbus/TCP, OPC, Peer-to-Peer, Modbus RTU |
| Function Blocks | Up to 5000 user-configurable |
| Scan Time | 27–500 ms |
| Environmental | 0–60°C operation, -40–70°C storage |
| Certifications | CE, UL, CSA, ATEX, ABS Type Approval, FM Class I Div.2 |
| Protection | Galvanic isolation and internal surge protection |
Furthermore, the CPU ensures robust data integrity and system durability for critical automation tasks.
System Integration
The C70 CPU integrates seamlessly with plant-wide automation systems. Applications include:
- Process Industries: Temperature, pressure, and flow monitoring and control.
- Batch Production: Recipe management, sequencing, and timed operations.
- Utility Systems: HVAC, water, and energy monitoring across distributed networks.
For instance, it enables precise coordination between field devices and supervisory control systems for optimized process performance.
Details
| Weight | 0.4 kg |
|---|
