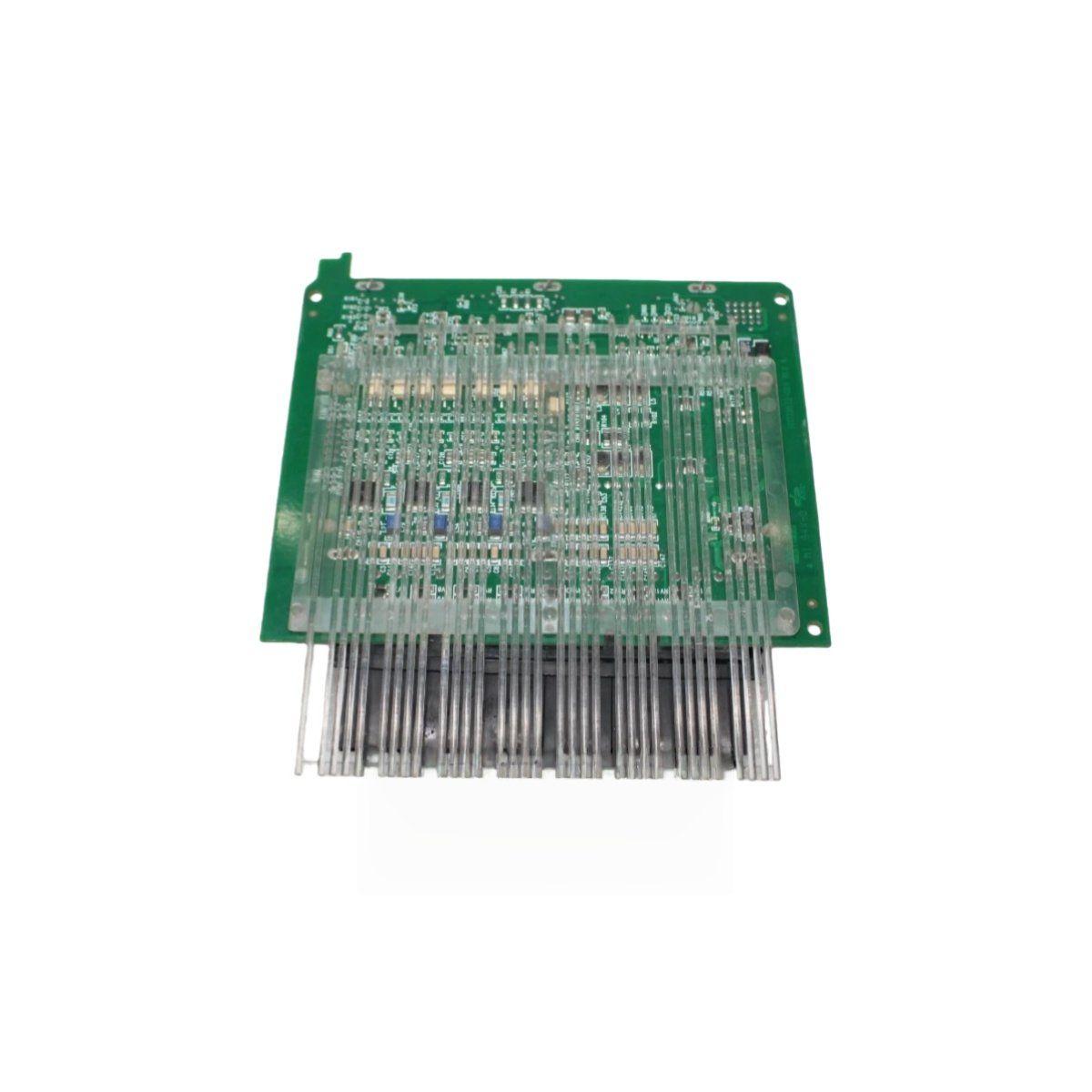

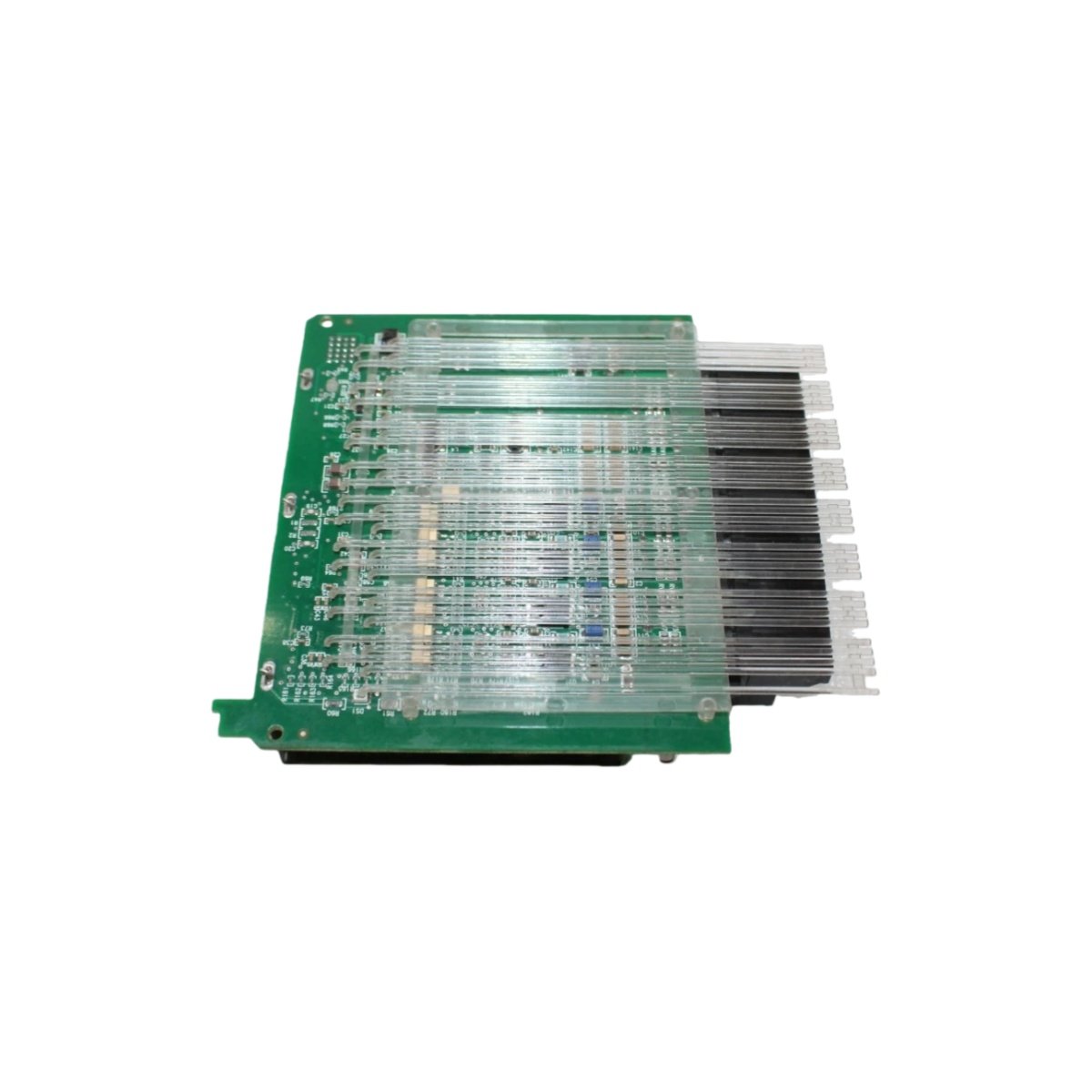

The Honeywell 900C53-0001 51500189-0012 operates as a high-performance analog output module within the Experion C300 control system. This unit converts digital control signals into precise analog values for field actuator operation. Consequently, it enables accurate positioning of control valves, dampers, and variable frequency drives in process industries.
Technical Specifications and Output Characteristics
Process engineers require precise output specifications for accurate loop tuning and final element control. Therefore, we present the complete technical data for the Honeywell
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Type | Analog Output Module |
| Series | Experion C300 |
| Part Number | 900C53-0001 (51500189-0012) |
| Number of Channels | 8 isolated analog outputs |
| Output Signal Types | 4-20 mA, 0-20 mA, 0-10 VDC |
| Output Resolution | 16 bits (0.0015% of span) |
| Accuracy | ±0.05% of full scale at 25°C |
| DAC Type | R-2R ladder with precision reference |
| Load Resistance | 0-600 Ω for current, >10 kΩ for voltage |
| Update Rate | 10 ms per all channels |
| Isolation | 500 VDC channel-to-channel and channel-to-backplane |
| Dimensions | 120 mm x 100 mm x 70 mm |
| Weight | 0.32 kg |
| Power Consumption | 200 mA at 5 VDC, 100 mA at 24 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | C300 series I/O rack |
Advanced Output Processing Features
The 900C53-0001 51500189-0012 module generates both current and voltage signals for flexible field device compatibility. Additionally, it includes per-channel configurable ranges for mixed-signal applications within a single module. This unit performs automatic calibration using internal precision references to maintain long-term accuracy. You can integrate this output module with protection devices like the RMS TSG TZ C static trip unit for comprehensive process safety. Furthermore, the Honeywell 900C53-0001 51500189-0012 provides individual channel LED indicators for output status and fault detection.
Channel Configuration and Signal Integrity
This analog output module features eight fully isolated channels, preventing ground loops in multi-device installations. Each channel includes a dedicated digital-to-analog converter for simultaneous updates without multiplexing delays. The 900C53-0001 51500189-0012 maintains 16-bit resolution across all output ranges for precise final element positioning. Its fast 10 ms update rate supports demanding applications requiring rapid setpoint changes. Typical applications include refinery valve positioning, chemical dosing pumps, combustion air dampers, and compressor guide vanes.
Installation and Wiring Guidelines
Mount the Honeywell 900C53-0001 51500189-0012 securely into any designated C300 I/O rack slot for immediate operation. Use shielded twisted-pair cable for current outputs to minimize electromagnetic interference pickup. Connect voltage outputs using individually shielded pairs when driving multiple remote devices. Finally, verify proper termination resistance matches the requirements of connected field instruments.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
