Delivering Flexible Control and Integrated Safety Functions

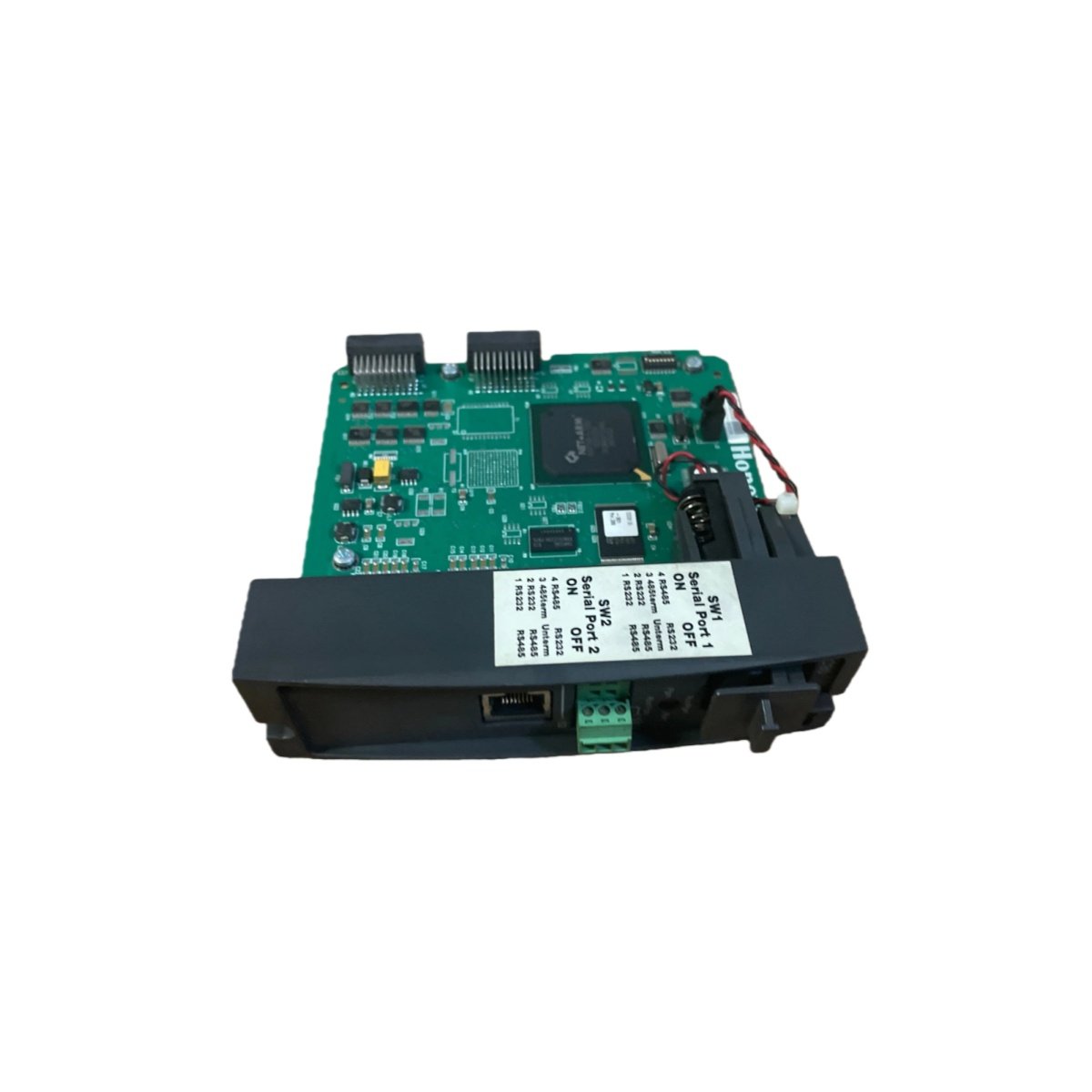

The Honeywell 900C32-0243-00 is a versatile HC900 C30 controller module. This unit combines process control and safety functions within a single robust package. It ensures high performance and adaptability across diverse industrial automation tasks. Consequently, it serves as a reliable core for many small to mid-scale control systems.
Core Technical Specifications and Operational Envelope
This controller from the Honeywell HC900 series supports various I/O and communication modules. Its rugged design maintains reliable operation under challenging environmental conditions. Furthermore, the module provides a flexible platform for both regulatory control and safety instrumented functions.
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 900C32-0243-00 |
| Controller Series | HC900 Series |
| Controller Model | C30 Hybrid Controller |
| Product Category | Process & Safety Controller Module |
| Primary Functions | Regulatory Control, Logic, Safety Instrumented Functions (SIF) |
| Supported I/O | Various Analog & Digital I/O Modules (e.g., 900A06, 900D04) |
| Communication Protocols | HART, Modbus RTU/TCP, Profibus-DP (via adapters) |
| Primary Power Supply | 24V DC Nominal |
| Typical Power Consumption | 10 Watts (Base controller, module dependent) |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Controller Memory | Flash and RAM for program & data storage |
| Dimensions (H x W x D) | Approx. 135 mm x 110 mm x 70 mm (rack units) |
| Weight | Approximately 0.5 kg |
| Mounting | Standard DIN rail (35mm) |
| Status Indicators | Multiple LEDs for Power, Run, Error, Communication |
| Certifications | Designed for industrial safety standards (SIL capable) |
System Architecture and Integration Features
The 900C32-0243-00 forms the central processing unit of an HC900 system. It connects to a wide array of Honeywell 900-series I/O modules for signal interfacing. The controller executes user-configured control strategies and safety logic seamlessly. Moreover, its support for industry-standard protocols enables easy integration into plant networks. This design allows for scalable solutions from simple loops to complex control schemes.
Application Use Cases and Reliability
This controller is ideal for applications requiring combined control and safety. It manages processes in industries like water treatment, chemical processing, and OEM machinery. The module’s wide operating temperature ensures functionality in harsh outdoor or indoor environments. Its integrated architecture also reduces cabinet space and simplifies system design. Therefore, the HC900 C30 provides a cost-effective and reliable automation solution.
Configuration and Power Requirements
Engineers configure the controller using Honeywell’s dedicated HC Designer software. The 900C32-0243-00 requires a stable 24V DC power source for proper operation. Users must select appropriate I/O modules based on their specific application needs. Furthermore, proper grounding and environmental protection are essential for long-term reliability.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
