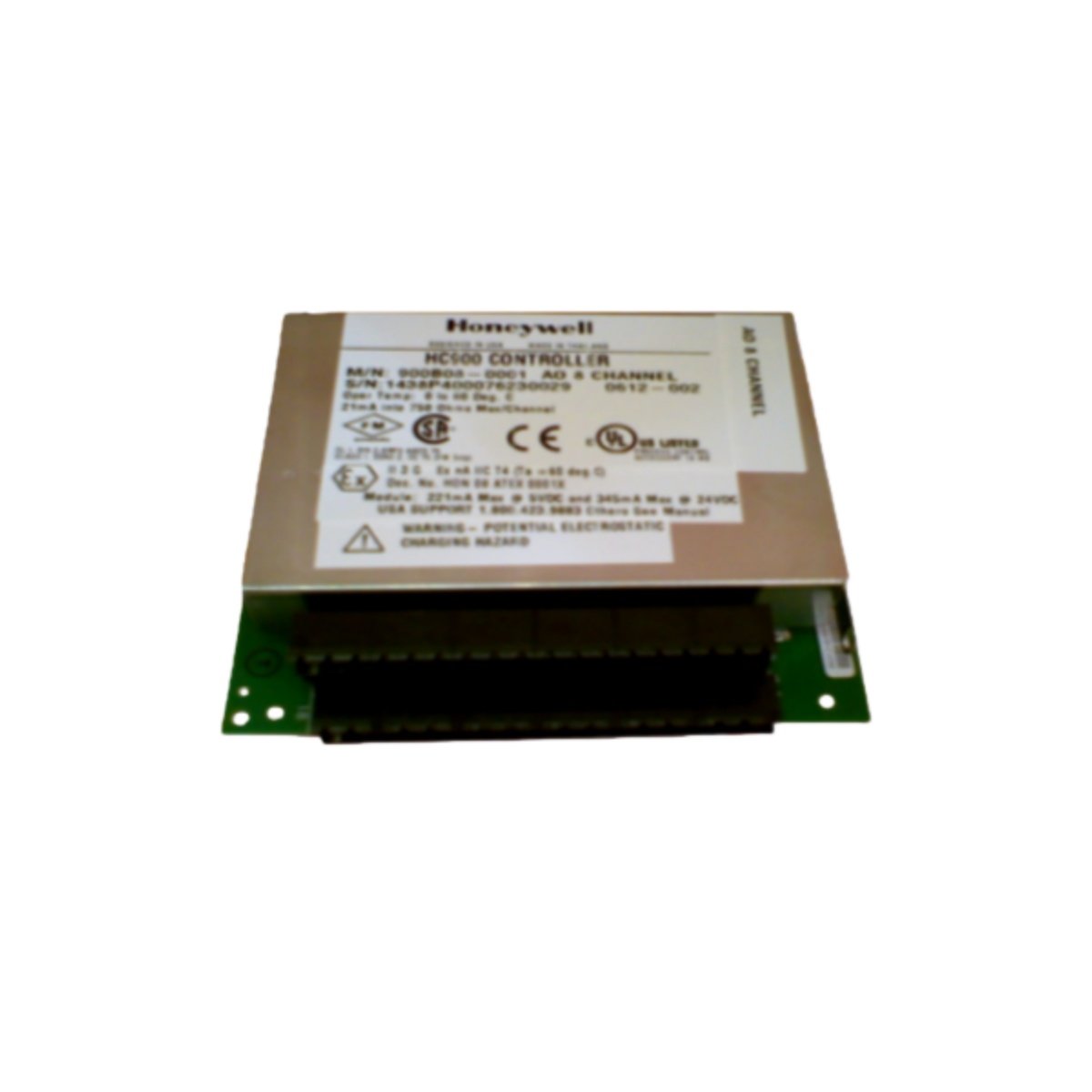

The Honeywell 900B16-0001 module delivers high-resolution analog signals to field devices. This output module belongs to the Honeywell 900B series for industrial automation. The unit controls valves, actuators, and other modulating equipment with precision. Each output channel provides a true 4-20 mA current loop signal. Therefore, this module suits continuous process control applications.

Key Technical Specifications

Output Performance and Load Capabilities

The 900B16-0001 provides 16 analog output channels for multi-loop control. Each channel delivers a true 4-20 mA signal with sink or source capability. The output resolution reaches 15 bits for fine signal adjustment. Accuracy stays within ±0.15% of span for reliable process regulation. The load range extends from 0 to 750 Ω without signal degradation. Therefore, the Honeywell 900B16-0001 drives most field actuators effectively.

Update Rate and Isolation Features

This analog output module updates each channel every 20 milliseconds. Consequently, the module responds quickly to setpoint changes from the controller. The 1500 V isolation protects the system bus from output field wiring faults. Channel-to-bus isolation prevents noise coupling into the control processor.

Power Requirements and Physical Dimensions

The 900B16-0001 requires a 24 VDC power supply with ±20% tolerance. Typical power consumption measures 4.5 W for energy-efficient operation. The module measures 210 x 180 x 45 mm for standard rack mounting. Total weight reaches 0.62 kg for stable installation. Honeywell manufactures this 900B16-0001 module in the USA. Accordingly, users receive consistent quality and long-term reliability.

Environmental Tolerance

The analog output module operates reliably from -20°C to +65°C. Storage temperatures range safely from -40°C to +85°C. Humidity tolerance spans 5% to 95% RH without condensation. Consequently, the Honeywell 900B16-0001 performs well in harsh industrial environments.
