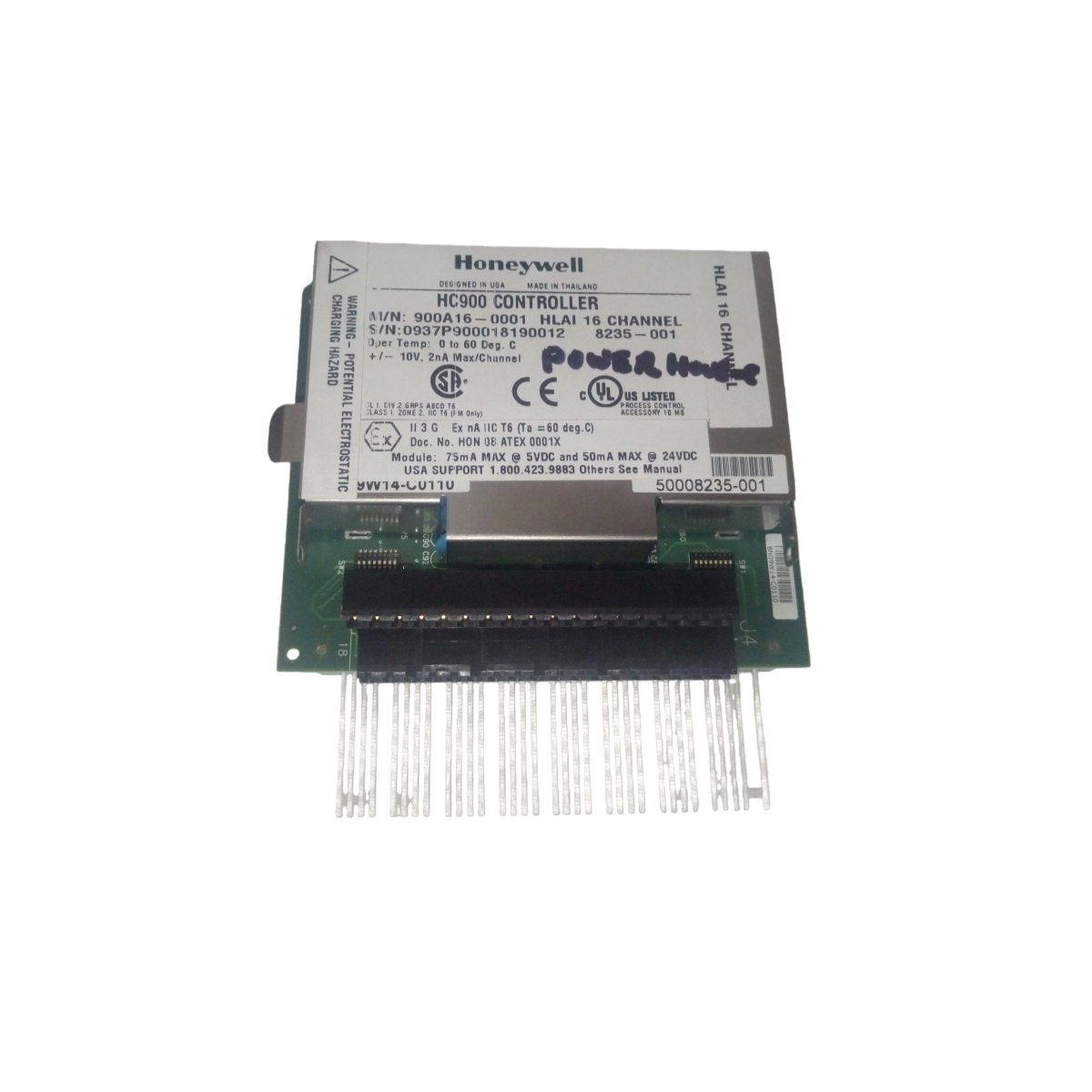

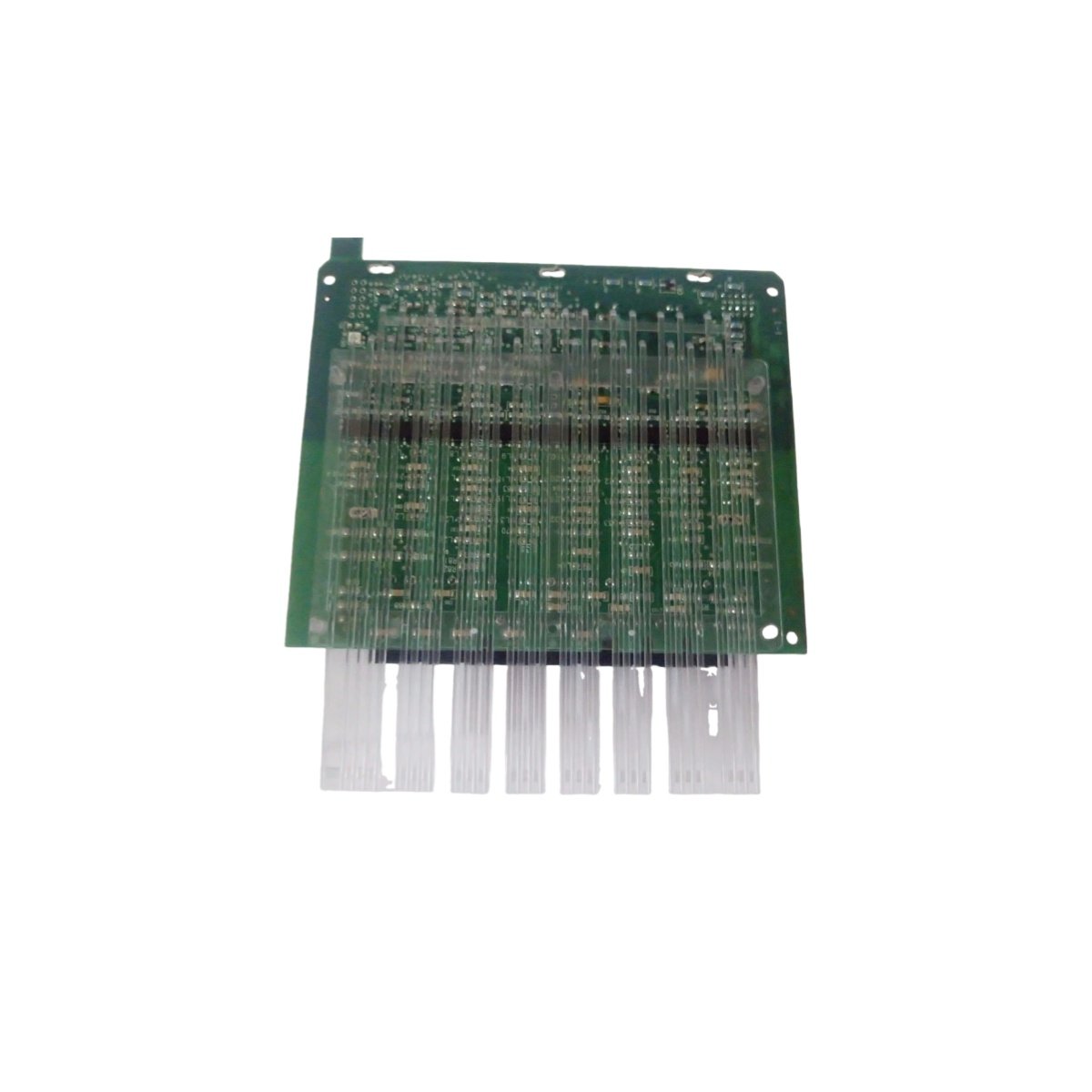

The Honeywell 900A16-0001 acquires analog signals from up to 16 field devices simultaneously. It connects seamlessly to the Honeywell Experion PKS control system. This integration provides reliable data for precise process monitoring and control.
Ensuring Accurate Process Data Acquisition
This module converts 4-20 mA signals with high 16-bit resolution. Consequently, it delivers the accuracy needed for critical control applications. The Honeywell 900A16-0001 also features robust channel-to-channel isolation.
Complete Technical Specifications
The following table details the full capabilities of the Honeywell 900A16-0001 analog input module.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Honeywell 900A16-0001 |
| Product Type | 16-Channel Analog Input Module |
| Input Channels | 16, Isolated |
| Signal Type | 4-20 mA DC (Standard, Configurable Ranges) |
| Input Resistance | 250 Ohms (Typical) |
| Resolution | 16-bit |
| Accuracy | ±0.25% of Span |
| Scan Rate | Configurable, Typically 10 ms per channel |
| Isolation | Channel-to-Channel and Channel-to-Bus |
| Power Supply | 24 VDC Nominal |
| Key Diagnostics | Signal Quality, Open-Circuit Detection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | 5% to 95% RH, Non-Condensing |
| Dimensions (H x W) | 137 mm x 35.6 mm |
| Weight | 0.397 kg |
| Mounting | DIN Rail or Panel |
Designed for System Integration and Reliability
This module supports proactive maintenance with built-in diagnostic functions. Furthermore, its compact and rugged design ensures reliable performance. The 900A16-0001 is a trusted component for expanding Experion PKS I/O capacity.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
