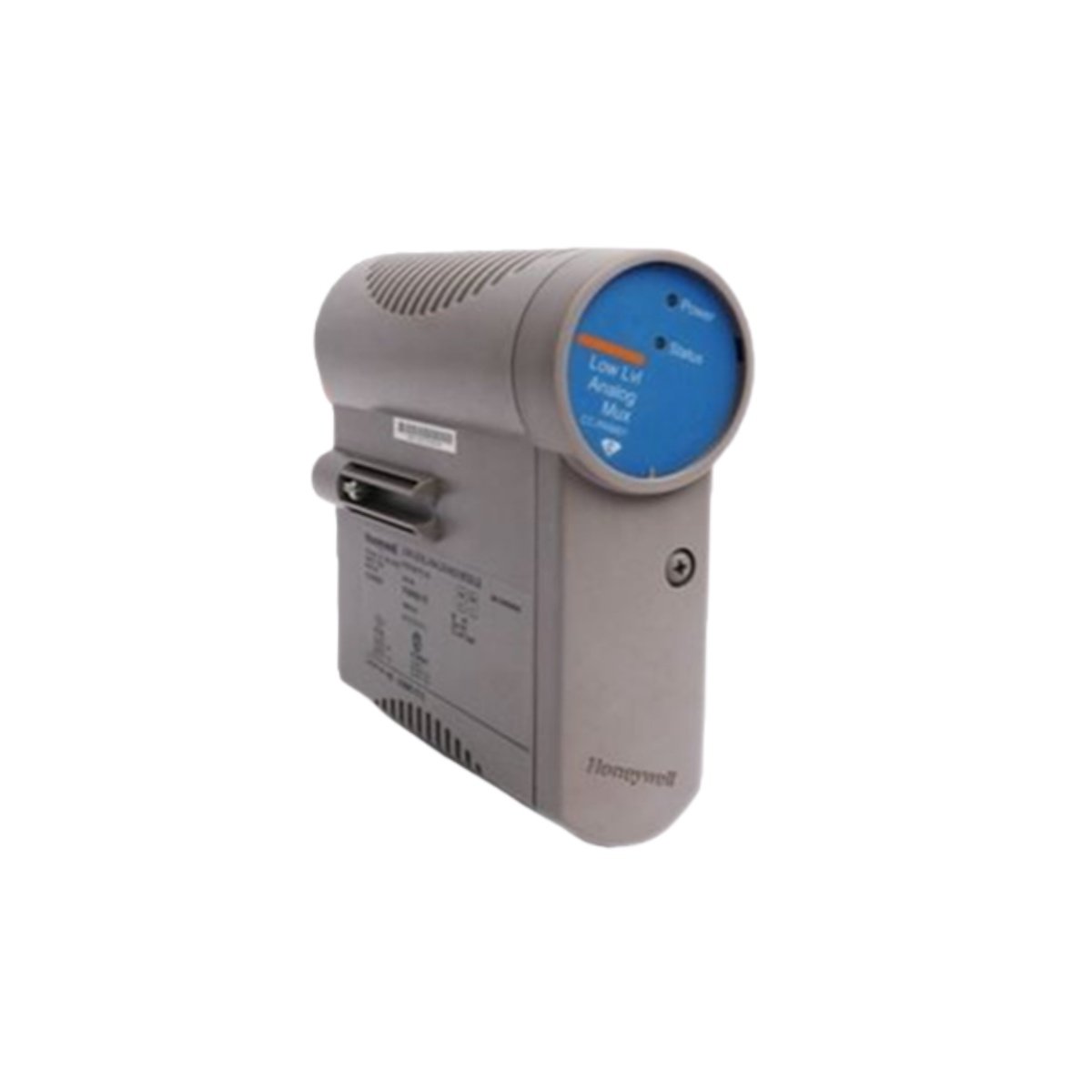

The Honeywell 900A01-0202 stands as a high-performance Analog Input Module, engineered for precise data acquisition within demanding industrial environments. This unit serves as a critical component for Honeywell control systems, ensuring reliable signal conversion from a wide array of field devices. It facilitates seamless communication between sensors and the control logic, enhancing overall process accuracy.

Advanced Signal Acquisition and Configuration

Engineers will appreciate the flexibility of the 900A01-0202, which supports eight isolated inputs per module. You can assign each channel to handle various signal types, including mV, V, thermocouple, RTD, ohms, mA, and slidewire. This adaptability makes the module suitable for diverse applications, from temperature monitoring to position feedback.

Specifically, this module excels with thermocouples featuring cold junction compensation. It also supports 3-wire PT100 RTDs with a 40 O balanced maximum. For thermocouples, it accommodates 100 O/leg standard, with options for 500 O and 1000 O. RTD configurations include 100 O/leg, 100 O/leg for low RTD, and 10 O/leg for Copper RTDs. Additionally, slidewire inputs support 100-6500 O with 10% total resistance per leg.

Detailed Electrical Specifications and Isolation

The Honeywell 900A01-0202 incorporates robust electrical characteristics to maintain signal integrity in noisy industrial settings. Its input impedance varies by type: 10 MΩ for T/C and mV inputs, greater than 1 MΩ for voltage inputs, and 250 Ω for mA inputs. These specifications ensure minimal signal loading for connected sensors.

Galvanic isolation is a key feature, providing 400 VDC point-to-point and 1 kVDC to logic. Note that RTDs are isolated in pairs, meaning an IRTD common connects to two inputs. This design prevents ground loops and protects the module from voltage transients.

To quantify its performance, review the following key electrical parameters:

Why Choose This Honeywell Module for Your System

Consequently, the 900A01-0202 ensures high accuracy by delivering excellent noise rejection. It achieves >60 dB for series mode noise and >130 dB for common mode noise at 120 VAC. Therefore, your system receives clean, reliable data even near heavy machinery.

In summary, this module provides a versatile and secure interface for critical process signals. Its configurable inputs and robust isolation make it a reliable choice for upgrading or maintaining your industrial automation infrastructure. You can find more details about compatible systems and this specific part on our product page.
