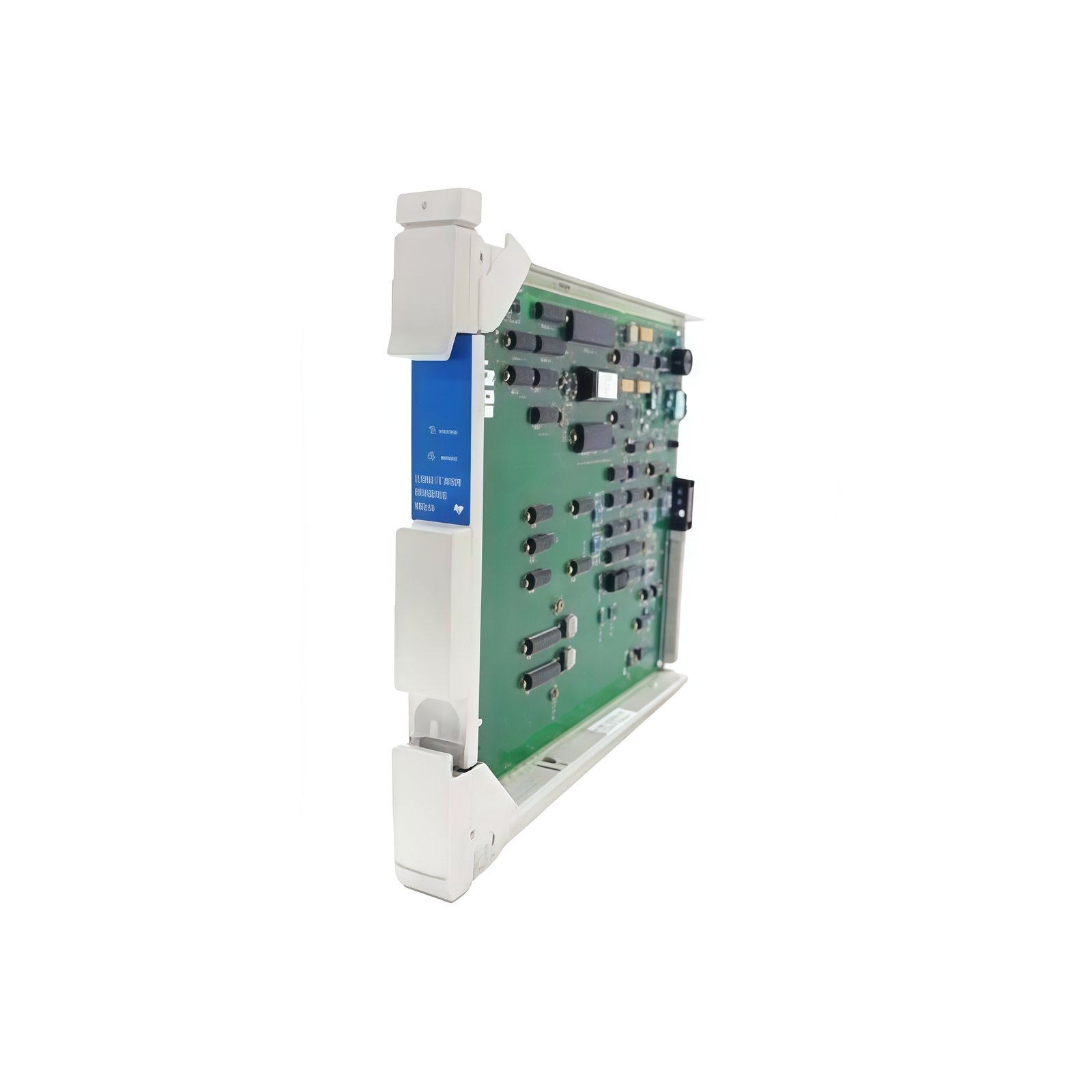

The Honeywell 8U-TAIXB1 module captures analog field signals with high accuracy. This input module belongs to the Honeywell series for industrial data acquisition. The unit converts sensor signals into digital values for the control processor. Each channel accepts standard current or voltage inputs. Therefore, this module suits diverse process monitoring applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 8U-TAIXB1 |
| Product Type | Analog Input Module |
| Input Channels | 8 differential analog inputs |
| Input Signal Types | 4-20 mA, 0-20 mA, 0-10 V, ±10 V |
| Resolution | 16 bits |
| Accuracy | ±0.05% of full scale |
| Sampling Rate | 100 Hz per channel |
| Input Impedance | 250 Ω (current mode), >1 MΩ (voltage mode) |
| Isolation | 1500 V channel-to-bus |
| Dimensions | 185 x 155 x 30 mm |
| Weight | 0.38 kg |
| Power Supply | 24 VDC ±20% |
| Power Consumption | 2.8 W typical |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Country of Origin | USA |
Input Configuration and Signal Conditioning
The 8U-TAIXB1 provides 8 differential analog inputs for noise rejection. Each channel configures independently for current or voltage signals. The module accepts 4-20 mA, 0-20 mA, 0-10 V, or ±10 V ranges. Input impedance measures 250 Ω in current mode. For voltage mode, the impedance exceeds 1 MΩ. Consequently, the module minimizes signal loading effects on field sensors.
Resolution, Accuracy, and Performance
This analog input module achieves 16-bit resolution for fine measurement detail. Accuracy reaches ±0.05% of full scale for precise process control. The sampling rate runs at 100 Hz per channel. Therefore, the Honeywell 8U-TAIXB1 captures fast-changing signals reliably. The 1500 V isolation protects the system bus from field wiring faults.
Power Requirements and Physical Dimensions
The 8U-TAIXB1 requires a 24 VDC power supply with ±20% tolerance. Typical power consumption stays at only 2.8 W for energy efficiency. The module measures 185 x 155 x 30 mm for compact cabinet mounting. Total weight reaches just 0.38 kg for easy installation. Honeywell manufactures this 8U-TAIXB1 module in the USA. Accordingly, the unit meets high quality standards for long-term industrial service.
Environmental Specifications
The analog input module operates reliably from -20°C to +65°C. Storage temperatures range safely from -40°C to +85°C. Humidity tolerance spans 5% to 95% RH without condensation. Consequently, the Honeywell 8U-TAIXB1 performs well in harsh factory environments.
