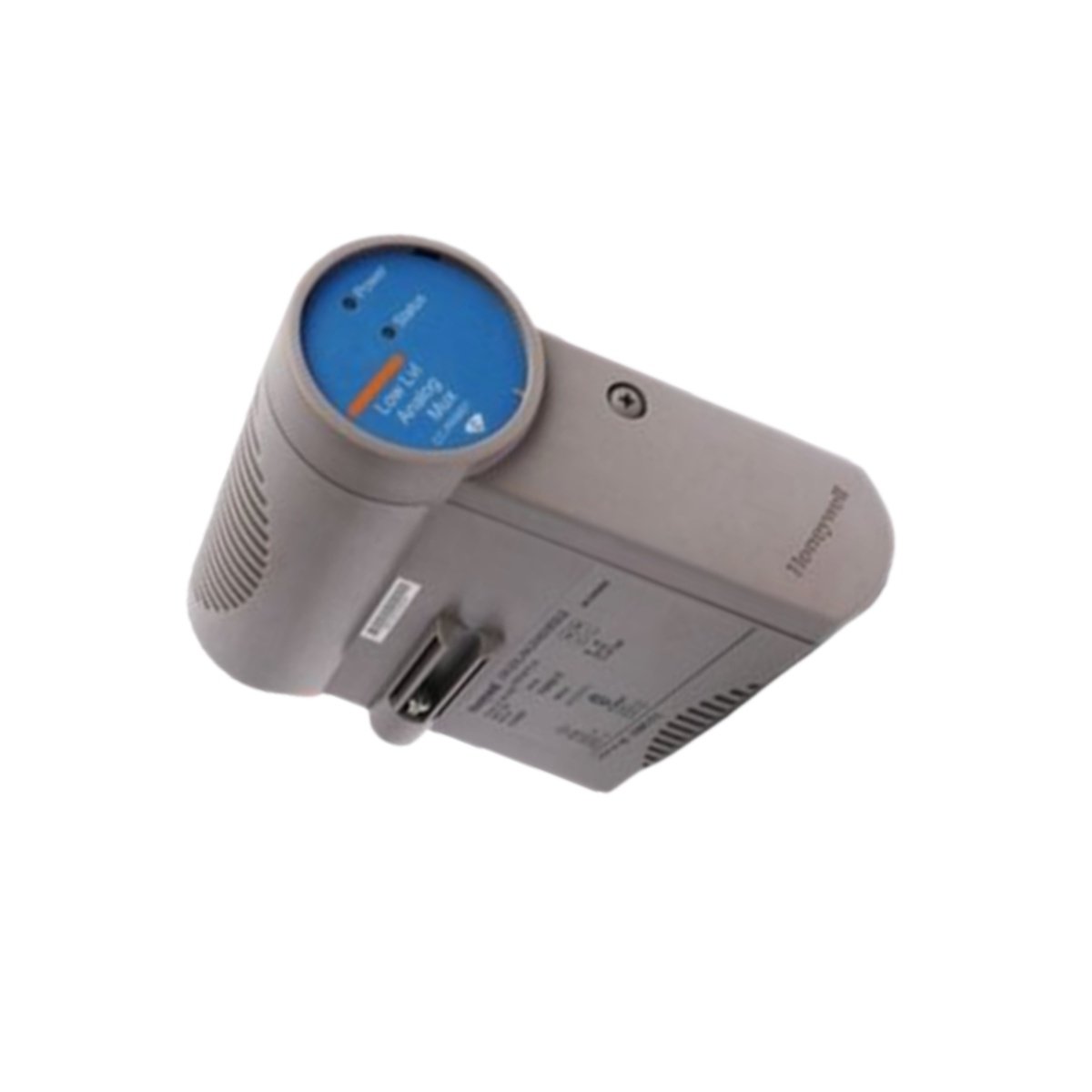

The Honeywell 8U-TAIXA1 is a high-density analog input module for the Experion LX system. This module converts critical sensor signals into precise digital data for process control. Furthermore, it integrates a HART interface for direct communication with smart field instruments.
Core Technical Specifications and Physical Design
Engineers select this module for its high channel count and versatile signal compatibility. It delivers excellent accuracy and stability for demanding industrial environments. Now, let’s review its detailed technical and physical parameters.
Detailed Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Honeywell |
| Product Model | 8U-TAIXA1 |
| Product Category | Process Control Analog Input Module |
| Input Channels | 16 channels (single-ended) |
| Supported Signal Types | 4-20 mA, 0-10 V, Thermocouple |
| A/D Converter Resolution | 16-bit |
| Input Scan Rate | 50 ms per channel |
| Base Accuracy | ±0.075% of full scale |
| Long-Term Stability | ±0.05% of full scale per year |
| Normal Mode Rejection | 19 dB @ 60 Hz |
| Integrated Communication | HART Protocol interface |
| Module Power Requirements | 24 VDC, 110 mA |
| Dimensions (H x W x D) | 3.0 cm x 31.3 cm x 27.8 cm |
| Weight | 1.62 lbs (0.73 kg) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
Application and System Integration
You install the 8U-TAIXA1 directly into a compatible Experion LX controller or I/O chassis. This module connects seamlessly with temperature, pressure, and flow transmitters across your plant. Consequently, it provides a reliable foundation for advanced regulatory control and monitoring loops.
Its built-in HART capability allows for device configuration and diagnostics without extra hardware. For complete wiring and configuration details, always consult the official manuals from Honeywell. This module is a key component for building a robust and accurate process automation layer.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
