Product Overview

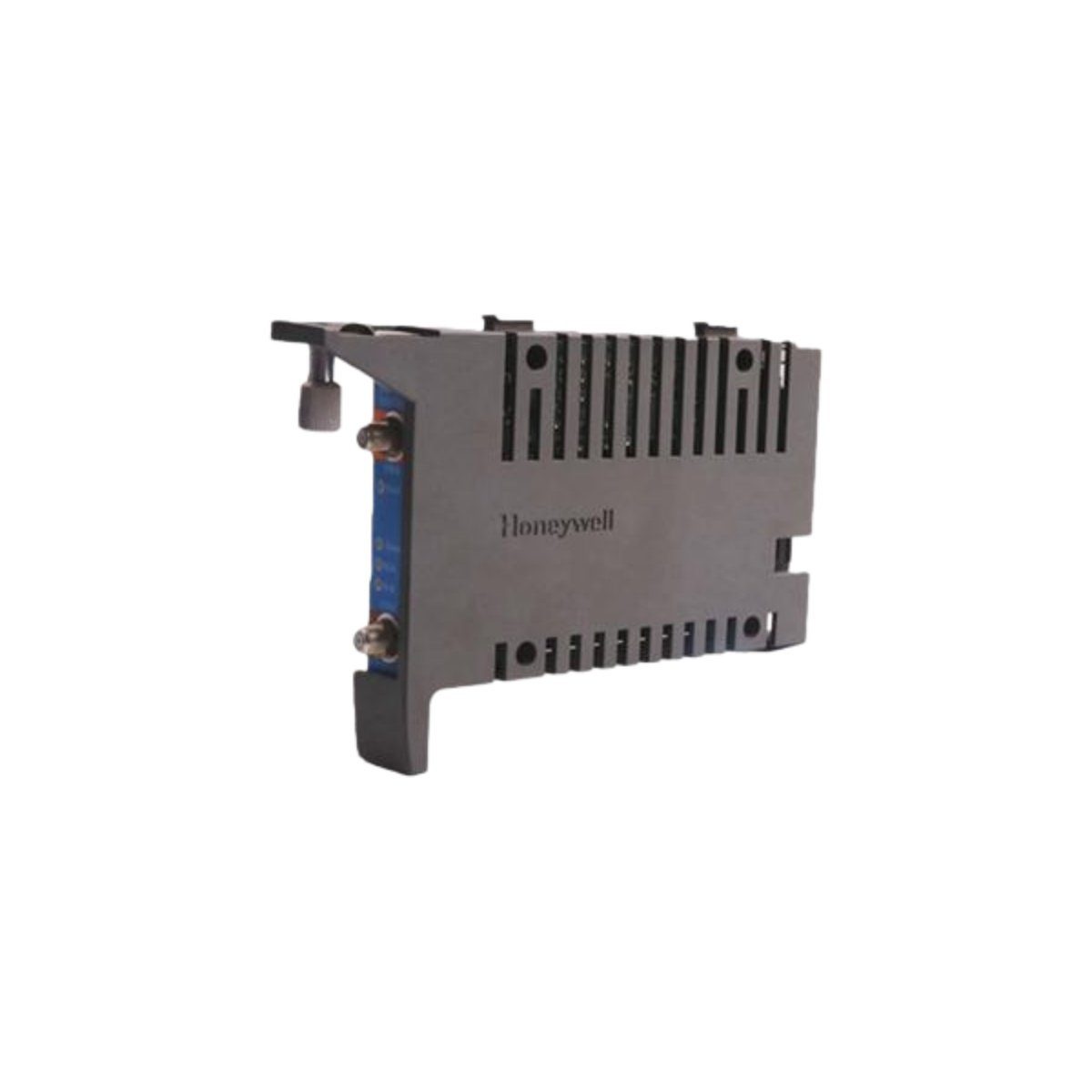

The Honeywell 8U-PWSP01-CN operates as a high-output 24VDC power supply module delivering 20 amps for industrial automation systems. This robust unit provides reliable power to PLCs, controllers, and field devices across demanding manufacturing environments. We engineered the 8U-PWSP01-CN to maintain stable DC output even with fluctuating AC line conditions and varying load demands.

Technical Specifications

Key Features and Benefits

• High Output Capacity for Demanding Loads: The 8U-PWSP01-CN delivers 20 amps continuously, powering multiple controllers and field devices from a single supply. This capacity reduces the need for multiple smaller supplies, simplifying panel layout and reducing installation costs.

• Wide-Range Universal Input: You can connect this module to any standard industrial AC source without manual switching. It automatically accepts 100-240VAC, 50/60Hz, making it suitable for global installations and facilities with mixed power systems.

• Exceptional Energy Efficiency: With >90% efficiency, this power supply generates less heat than conventional designs. Consequently, you can mount it in sealed enclosures without excessive thermal buildup, extending the life of nearby components.

• Comprehensive Protection Features: The module safeguards both itself and connected equipment against common electrical faults. Built-in overload, overvoltage, overtemperature, and short circuit protection ensure reliable operation under adverse conditions.

• Compact Space-Saving Design: Despite its 20A output capacity, the 8U-PWSP01-CN maintains a compact 125mm x 100mm x 75mm footprint. This small size allows dense packing in control cabinets where space comes at a premium.

Detailed Functional Description

The primary function of the Honeywell 8U-PWSP01-CN involves converting incoming AC mains power into stable, regulated 24VDC for industrial control systems. Specifically, it employs switch-mode technology with power factor correction to achieve high efficiency while minimizing harmonic distortion on the AC line. The module maintains output voltage within ±2% across all line and load conditions, ensuring sensitive electronics receive clean, consistent power. Furthermore, the built-in hold-up time provides >20 ms of ride-through capability during brief AC power interruptions, preventing nuisance system resets.

Output Characteristics and Performance

We designed the 8U-PWSP01-CN to deliver clean DC power suitable for all types of industrial loads. The output exhibits less than 100 mVp-p ripple and noise, meeting the requirements of analog circuits and communication interfaces. For motor starting and other high-inrush applications, the module handles momentary overloads up to 150% for several seconds without shutdown. Additionally, the green LED indicator provides immediate visual confirmation of normal operation, while a red LED signals overload conditions for quick troubleshooting.

Protection and Safety Features

The 8U-PWSP01-CN incorporates multiple protection mechanisms to ensure system integrity:

• Overload Protection: Automatic current limiting with hiccup mode recovery protects against excessive loads

• Overvoltage Protection: Crowbar circuit activates at 28-32VDC, requiring a power cycle to reset

• Overtemperature Protection: Thermal shutdown with automatic recovery when temperature normalizes

• Short Circuit Protection: Continuous protection with no damage to the module under any output short condition

• Input Transient Protection: Internal varistors and filters suppress line surges and spikes

Mechanical and Installation Details

The Honeywell 8U-PWSP01-CN features a rugged metal housing designed for industrial environments. Its DIN rail mounting clip allows tool-less installation on standard TS35 rails, significantly reducing mounting time compared to panel-mount supplies. The front-facing terminals accept wires from 12 to 22 AWG, with clear labeling for input, output, and ground connections. A protective cover over the terminals prevents accidental contact with live connections, enhancing safety during maintenance.

Integration with Control Systems

You can integrate the 8U-PWSP01-CN seamlessly into any 24VDC control system architecture. Its regulated output directly powers Honeywell controllers, I/O modules, and field devices without additional conditioning. The module’s DC OK relay contact provides a remote status signal to monitoring systems, enabling automated alerts for power supply faults. For redundant power configurations, you can connect two 8U-PWSP01-CN units in parallel using external decoupling diodes, creating a fault-tolerant power architecture.

Common Industrial Applications

The Honeywell 8U-PWSP01-CN serves as the primary power source for diverse industrial applications:

Why Choose This Power Supply?

Selecting the Honeywell 8U-PWSP01-CN means choosing reliable, efficient power delivery for your critical control systems. Its 20A capacity handles substantial loads while maintaining tight voltage regulation, ensuring consistent operation of all connected devices. The >90% efficiency reduces energy costs and heat generation, allowing higher density panel layouts without thermal concerns. Comprehensive protection features safeguard your investment against common electrical faults, while the compact DIN rail format simplifies installation. For applications requiring robust, industrial-grade 24VDC power, the 8U-PWSP01-CN provides the performance and reliability you expect from Honeywell.
