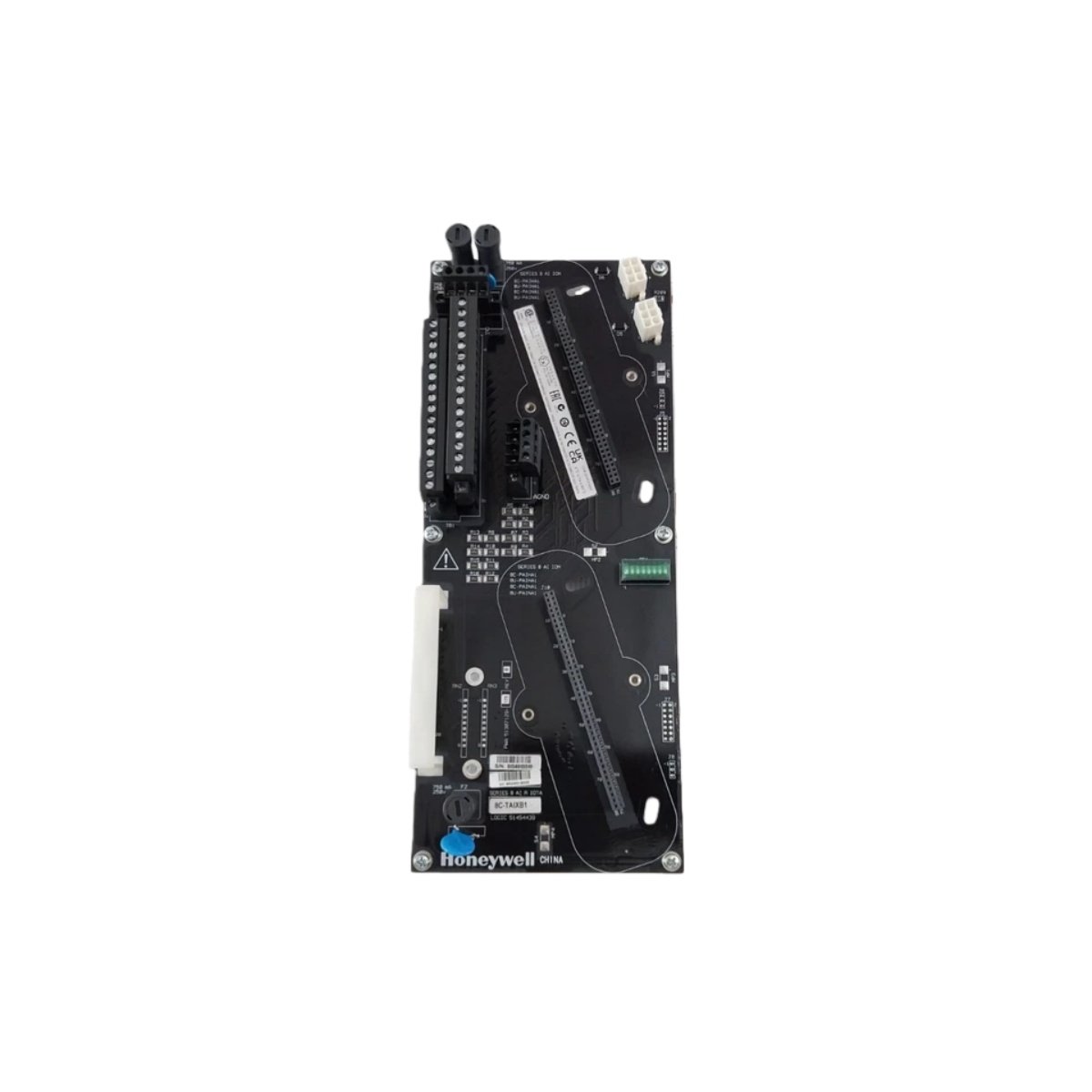

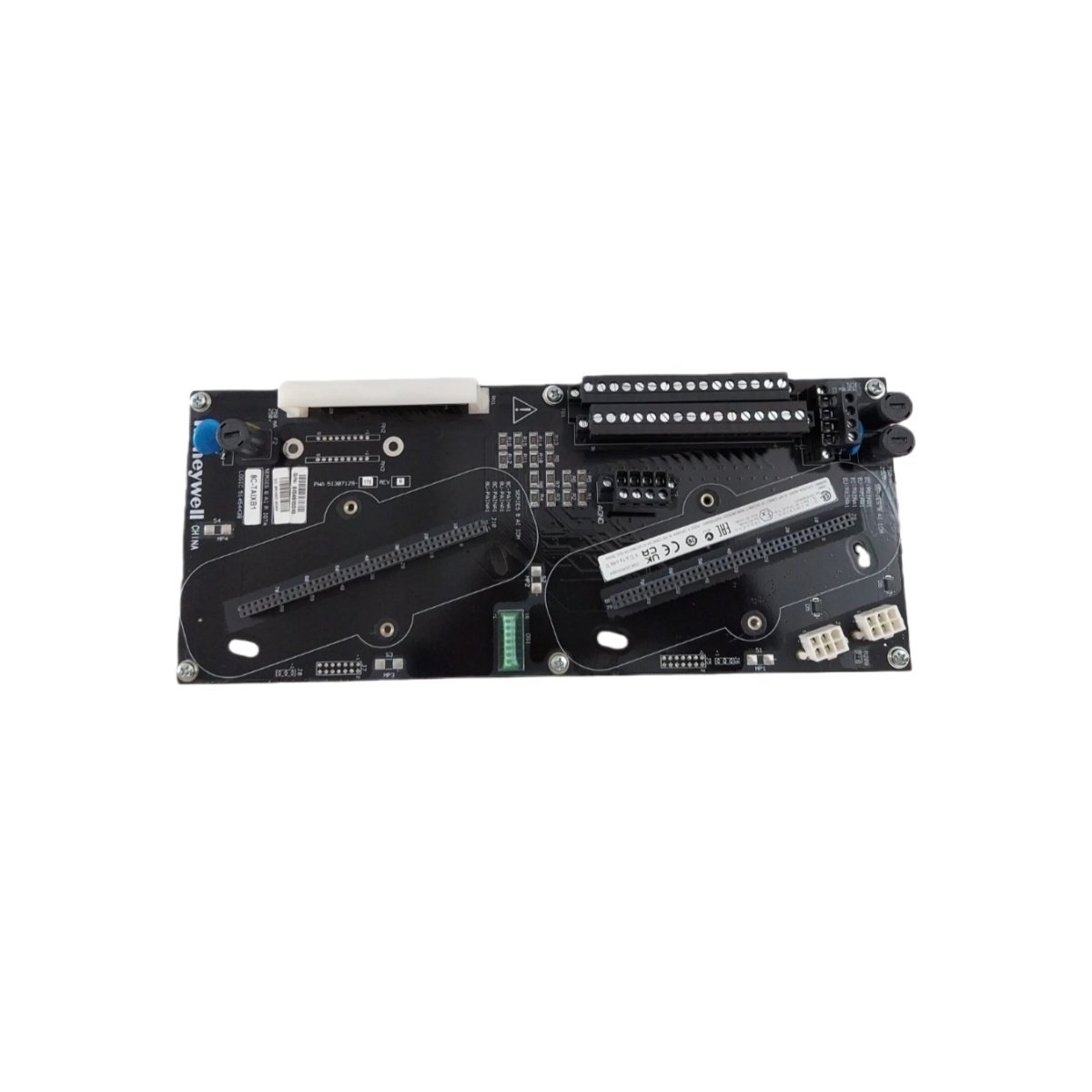

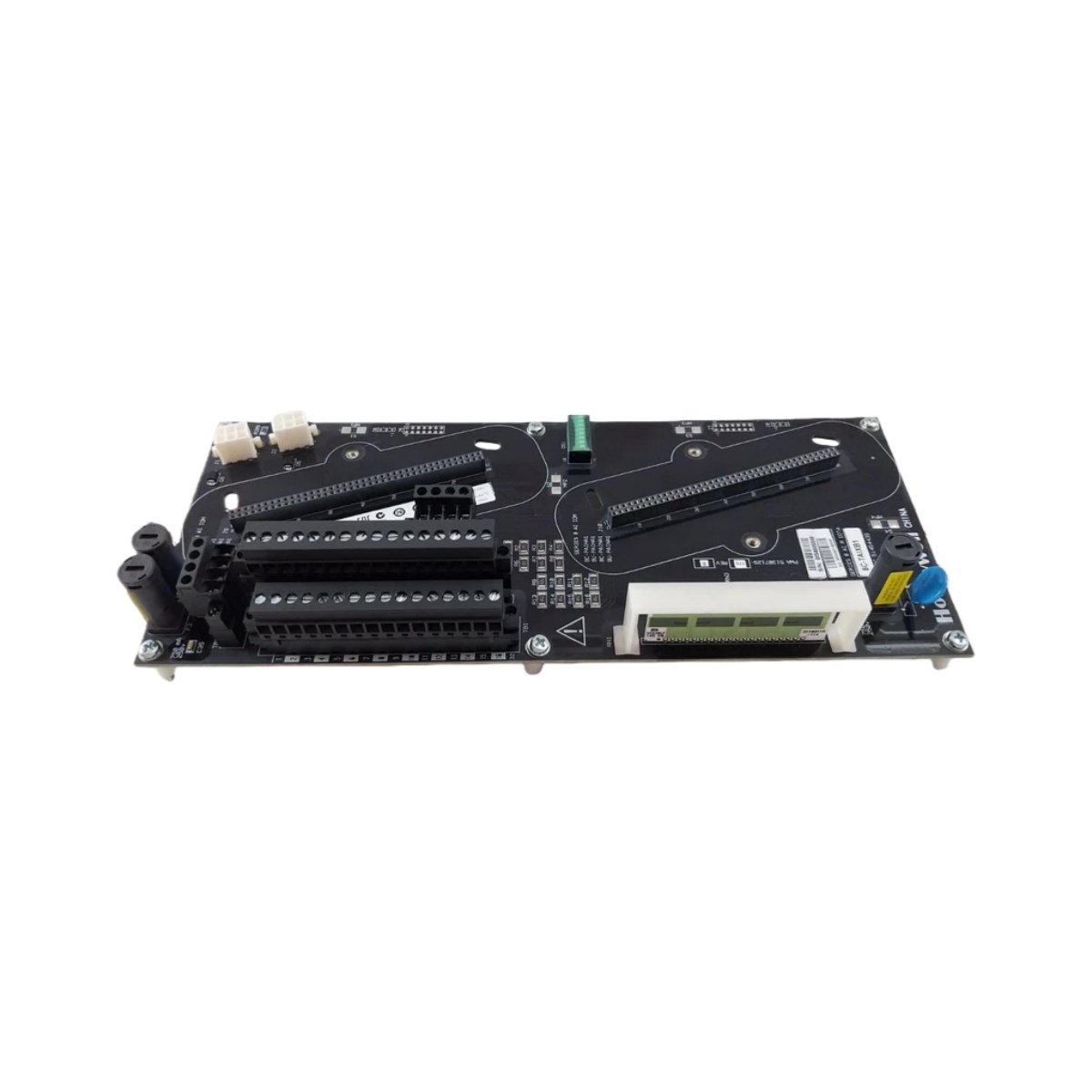

The Honeywell 8U-PAINA1 functions as a high-performance analog input module designed for accurate signal acquisition in industrial control systems. This module interfaces seamlessly with various field instruments, including transmitters and sensors, to deliver reliable process data to the controller. Its robust construction ensures consistent operation in demanding environments while maintaining signal integrity.

Technical Specifications and Performance Characteristics

We engineered the Honeywell 8U-PAINA1 to provide exceptional accuracy and reliability for mission-critical applications. The following specifications detail its operational capabilities:

Advanced Signal Conditioning for Accurate Measurements

The 8U-PAINA1 incorporates per-channel 16-bit ADCs to ensure precise digitization of analog signals. This architecture minimizes conversion errors and maintains signal fidelity throughout the measurement chain. Additionally, you can configure each channel independently for current, voltage, or temperature inputs, providing exceptional flexibility for diverse field instrumentation.

This analog input module achieves an impressive Accuracy of ±0.05% of full scale, making it suitable for applications requiring precise measurements. The high Common Mode Rejection Ratio exceeding 120 dB effectively eliminates noise from AC power lines, ensuring clean signals even in electrically noisy industrial environments. Furthermore, the module supports thermocouple and RTD inputs with built-in cold junction compensation for temperature measurement applications.

Robust Isolation and Protection Features

We equipped the Honeywell 8U-PAINA1 with comprehensive isolation to protect both the module and the control system from electrical hazards. The 1500 V rms isolation between channels and the backplane prevents ground loop currents from compromising measurement accuracy or damaging sensitive electronics. This channel-to-channel isolation also allows the module to accept signals from different reference potentials without interference.

The input circuitry includes overvoltage protection up to 30 V continuous on all channels. Consequently, accidental wiring errors or transient events will not immediately damage the module, reducing downtime and maintenance costs. For similar high-quality industrial automation components, you might also examine the specifications of the RMS TSG TZ C Static Trip unit available through industrial equipment suppliers.

Flexible Configuration and Seamless Integration

You can easily configure the 8U-PAINA1 through the host control system’s engineering software. The module automatically calibrates itself at startup and compensates for temperature drift, ensuring long-term stability without manual intervention. Its removable terminal blocks simplify field wiring and module replacement, as you can disconnect wiring without removing individual conductors.

The module draws only 3.5 W from the backplane, minimizing power supply loading in dense system configurations. With its compact Dimensions of 130 mm x 45 mm x 120 mm, the Honeywell 8U-PAINA1 occupies minimal panel space while delivering eight channels of high-accuracy analog input capability. This space-efficient design proves particularly valuable in retrofit applications where cabinet space comes at a premium.

Environmental Durability for Industrial Applications

Engineers specify the Honeywell 8U-PAINA1 for installations where environmental conditions challenge lesser components. The module operates reliably across the full -40°C to +70°C temperature range, accommodating applications from Arctic monitoring stations to desert processing facilities. Its conformal-coated circuit boards resist humidity, vibration, and corrosive atmospheres common in chemical and petrochemical plants.

The module stores safely in temperatures from -40°C to +85°C, allowing for extended inventory periods without degradation. This environmental resilience, combined with precise analog measurement capabilities, makes the 8U-PAINA1 a trusted choice for continuous process control, batch processing, and safety system applications where data accuracy directly impacts product quality and operational safety.
