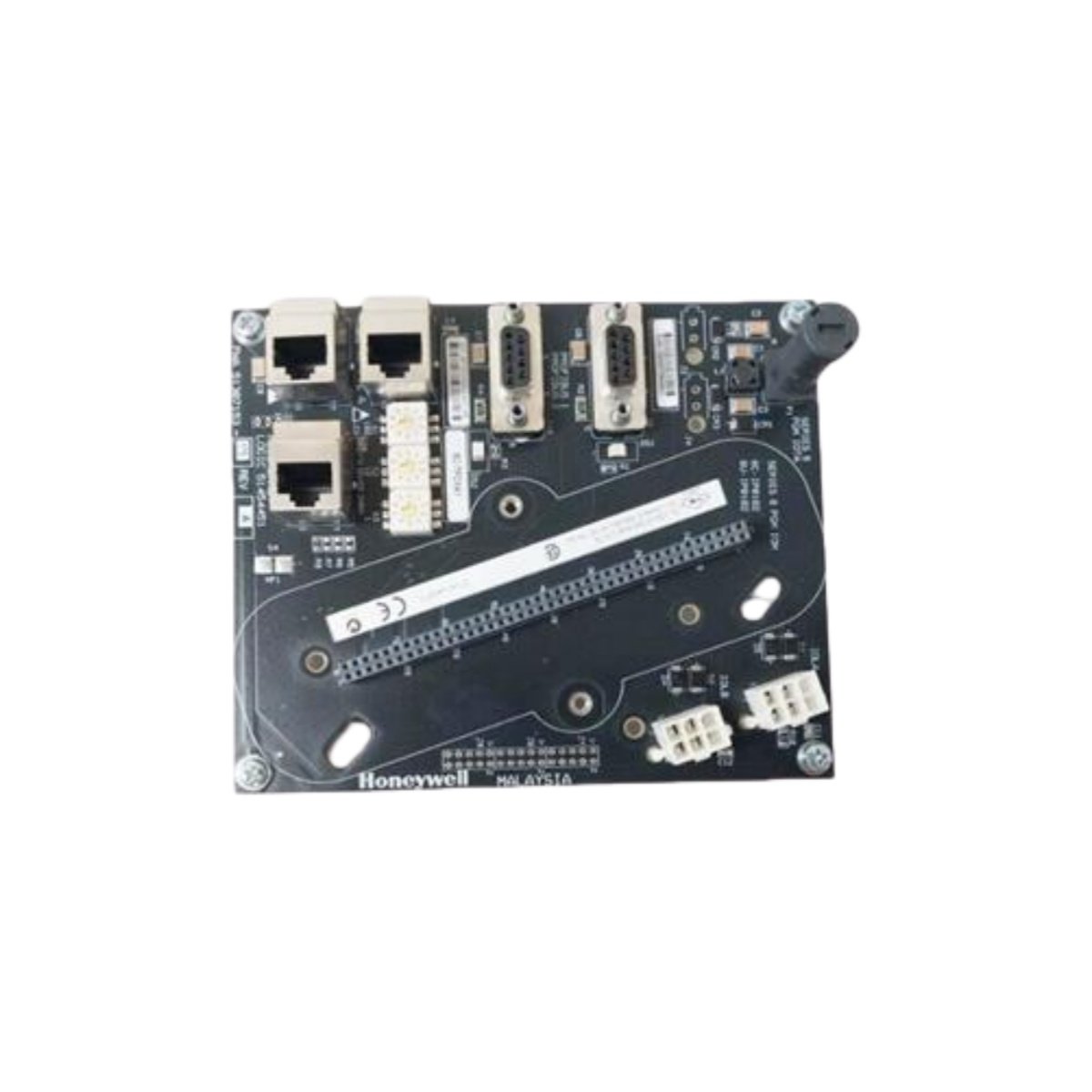

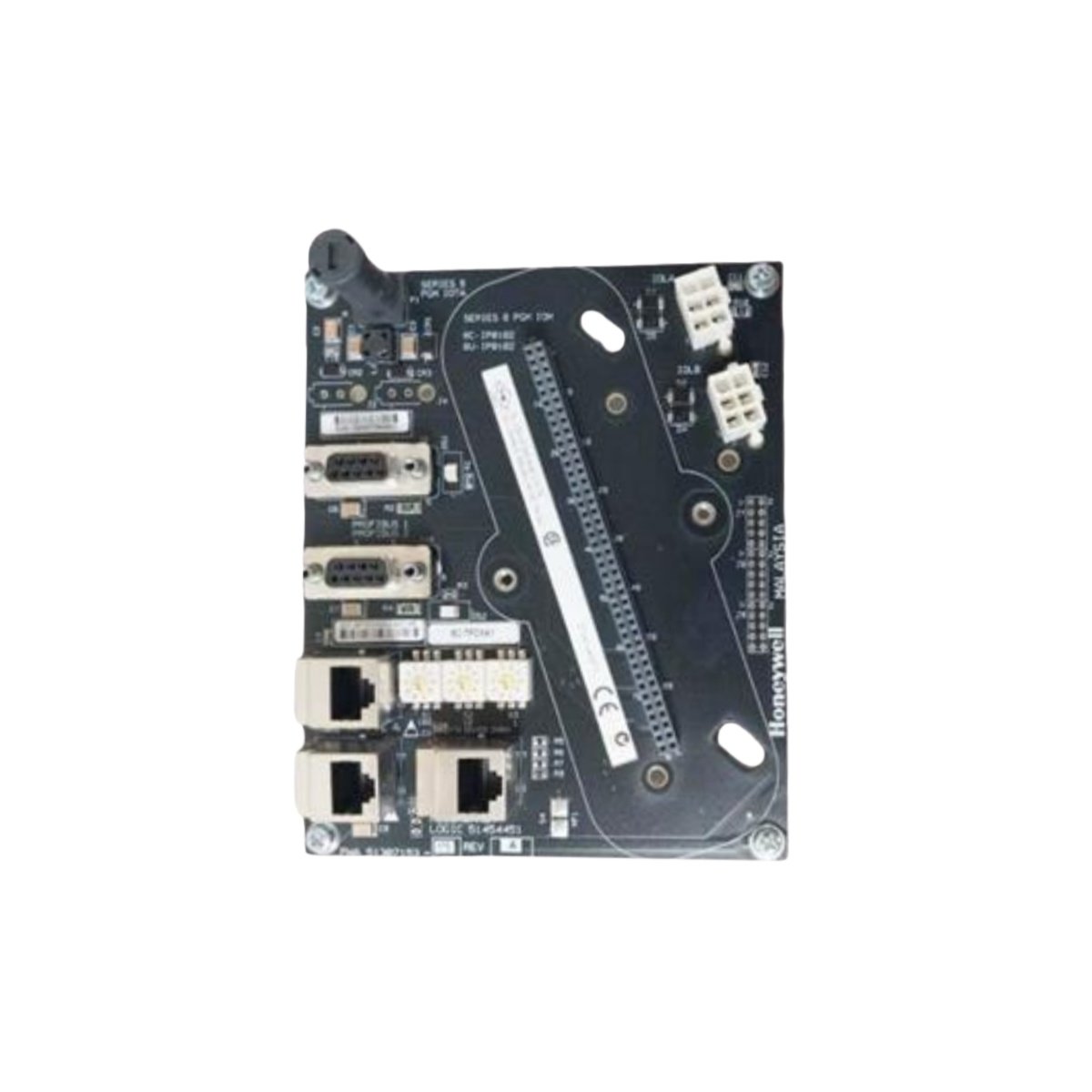

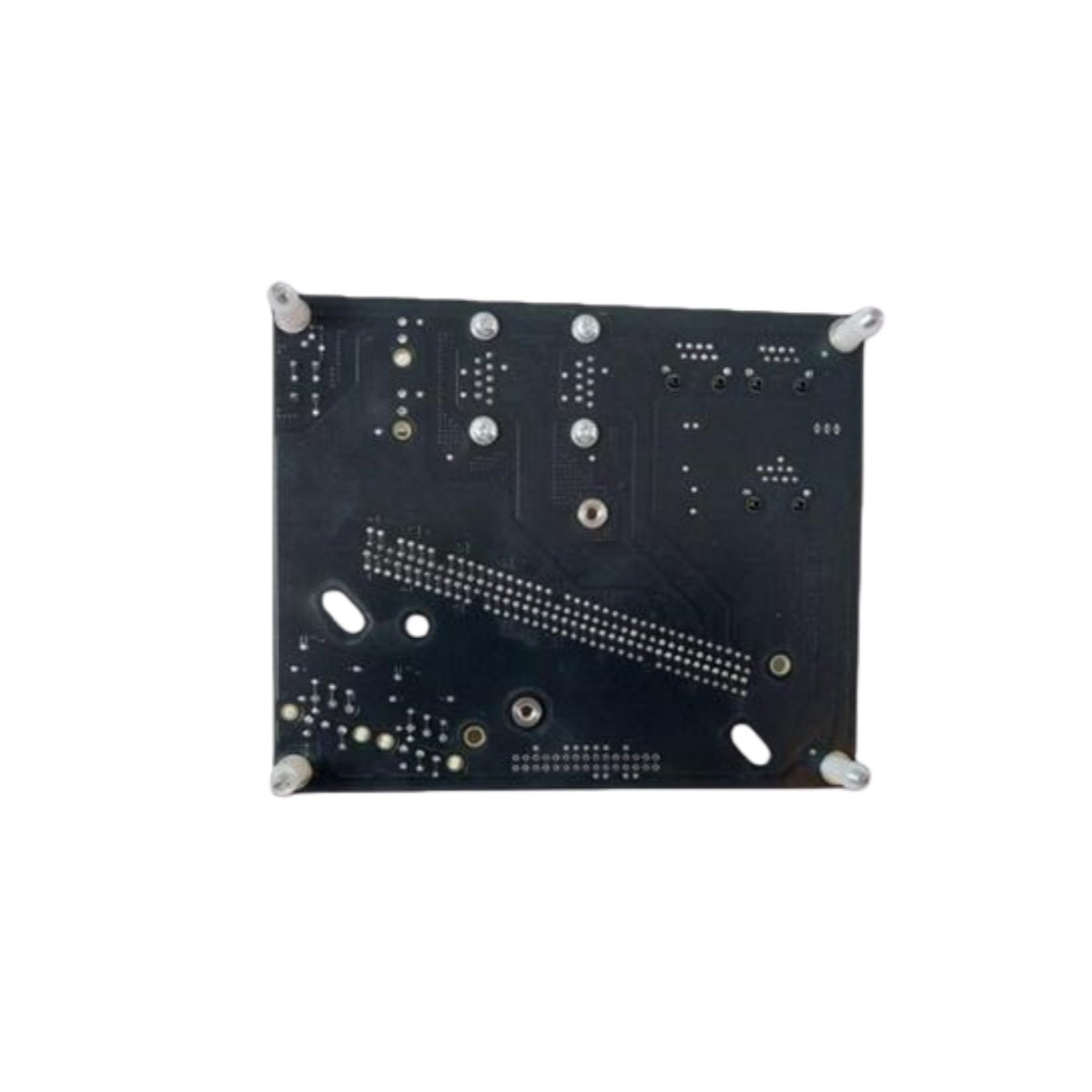

The Honeywell 8C-TPOXA1 enables seamless integration between Honeywell control systems and PROFIBUS DP networks. This dedicated gateway module actively translates and manages data exchange between disparate industrial protocols. Consequently, it bridges the gap between central controllers and distributed field devices efficiently.
Core Functionality and Communication Role
This module acts as a robust protocol converter and network gateway. Moreover, it provides a high-speed communication path with a data rate up to 12 Mbps. Therefore, system integrators can connect PLCs, drives, and I/O blocks from various manufacturers. This capability is essential for building unified and interoperable automation architectures.
Detailed Technical Specifications
The table below consolidates the key performance and environmental parameters for the 8C-TPOXA1.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 8C-TPOXA1 |
| Module Type | PROFIBUS DP Gateway / Communication Interface |
| Primary Protocol | PROFIBUS DP (Decentralized Periphery) |
| Max Data Transfer Rate | Up to 12 Mbps |
| Number of PROFIBUS Channels | 1 |
| Total I/O Points Managed | 64 points (Digital/Analog, configurable) |
| Power Supply Requirement | 24 V DC |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Typical Power Consumption | < 5 W (Estimate) |
| Isolation | Galvanic isolation between system and field bus |
| Mounting Style | DIN Rail Mount |
| Module Dimensions (Est.) | ~ 150 mm H x 80 mm W x 60 mm D |
| Module Weight | Approx. 0.4 kg |
| Connectors | Screw terminals for power, PROFIBUS DP (D-Sub 9) |
Application Benefits and Integration Notes
Deploying this gateway significantly simplifies multi-vendor system integration. Specifically, it allows a Honeywell controller to directly command and monitor standard PROFIBUS devices. Furthermore, it supports cyclic and acyclic data exchange for real-time control and parameterization. This module is ideal for plant modernization where new PROFIBUS segments must connect to legacy Honeywell systems. For comprehensive protection, ensure network design considers devices like the RMS-TSG-TZ-C Static Trip.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 30 × 313 × 278 mm |
