Overview

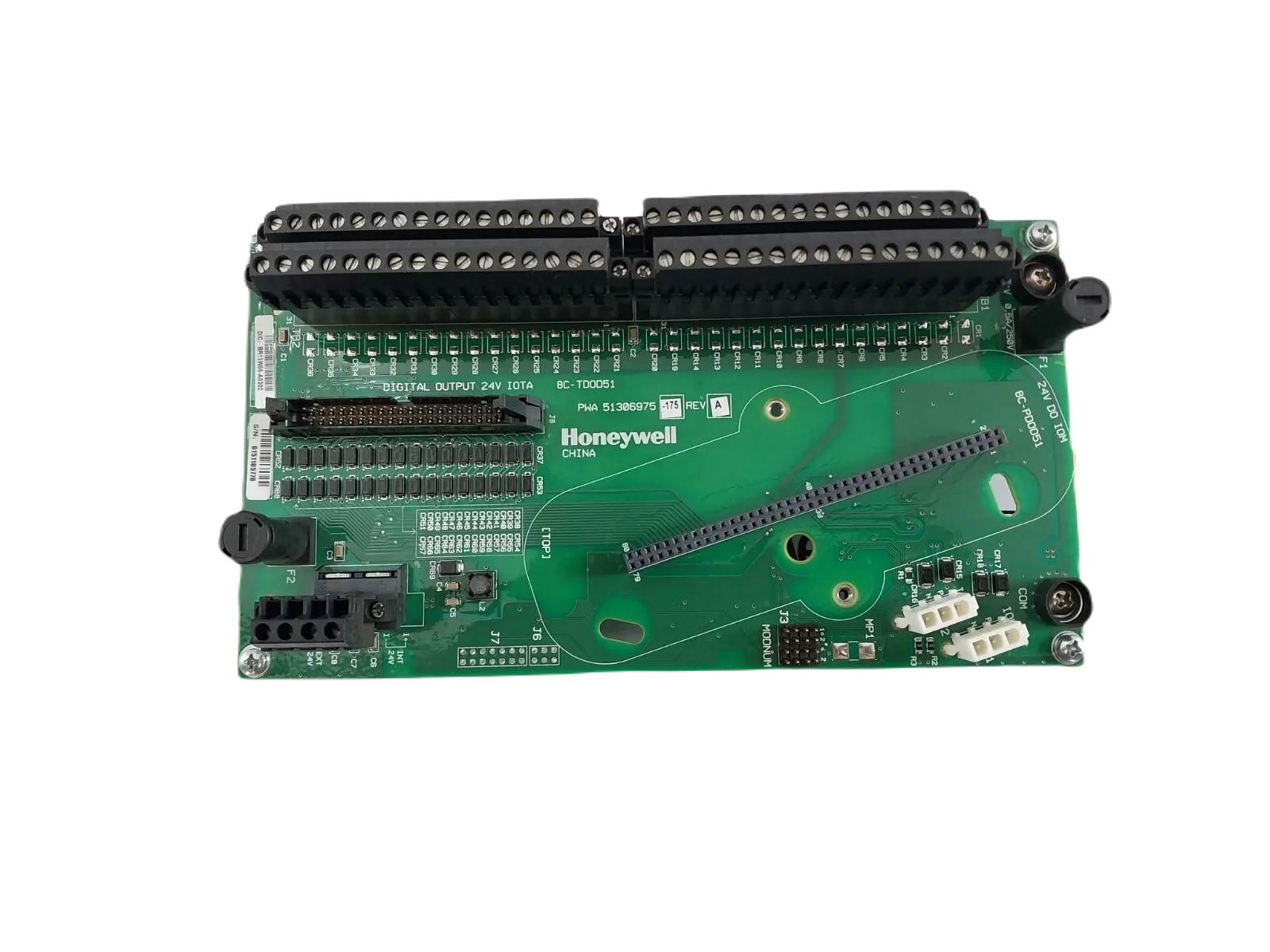

The Honeywell 8C-TDOD51 51306975-175 Digital Output Module delivers reliable 24VDC digital signals for controlling industrial equipment. It is suitable for solenoid valves, relays, and other automation devices. Moreover, its robust design ensures continuous operation in demanding environments.
Key Functional Highlights
- Extensive diagnostics verify data integrity and system reliability.
- Redundancy support increases uptime during critical operations.
- Fail-safe behavior ensures safe-state operations in power or signal interruptions.
- Flexible output modes: latched, pulsed, or pulse-width modulated per channel.
- Galvanic isolation between system and field protects sensitive electronics.
Technical Data
| Parameter | Specification |
|---|---|
| Model Number | 8C-TDOD51 – Digital Output, Field Isolated, Bussed Output |
| IOTA Model Number | 8C-TDOD51 Non-Redundant, Coated, 9” |
| Output Channels | 32 |
| Output Type | SINK |
| Load Voltage Max | 30 VDC |
| Load Current | 0.1 A per channel (Max) |
| Short Circuit Protection | Series FUSEs (1 per 8 channels; 4 total) |
| Galvanic Isolation | 1000 VAC RMS, system-to-field (user-supplied field power only) |
| On-State Voltage Max | 1 VDC (with load current at 0.1A max) |
| Off-State Voltage | 24 V (typical) |
| Off-State Leak Current | 100 µA (max) |
| Turn-On/Turn-Off Time | 10 ms (max) |
| Gap on Switchover | None (0 ms; redundancy only) |
| PWA Number | 51306975-175 |
| Revision Level | A |
Typical Applications
This module integrates seamlessly into industrial automation systems. For instance, it controls solenoid valves in fluid handling systems and drives interposing relays in safety circuits. In addition, its 32-channel output simplifies wiring and reduces system complexity.
FAQ
Q1: Is this Honeywell module brand new and original?
A1: Yes, the 8C-TDOD51 51306975-175 is fully new, original, and factory-certified.
Q2: How quickly can it be shipped?
A2: Stock is available for immediate dispatch. Orders typically ship in 3 days to 2 weeks depending on quantity, using DHL and other logistics.
Q3: What warranty or return support is provided?
A3: We support returns for quality issues within 30 days of delivery.
Details
| Weight | 0.35 kg |
|---|
