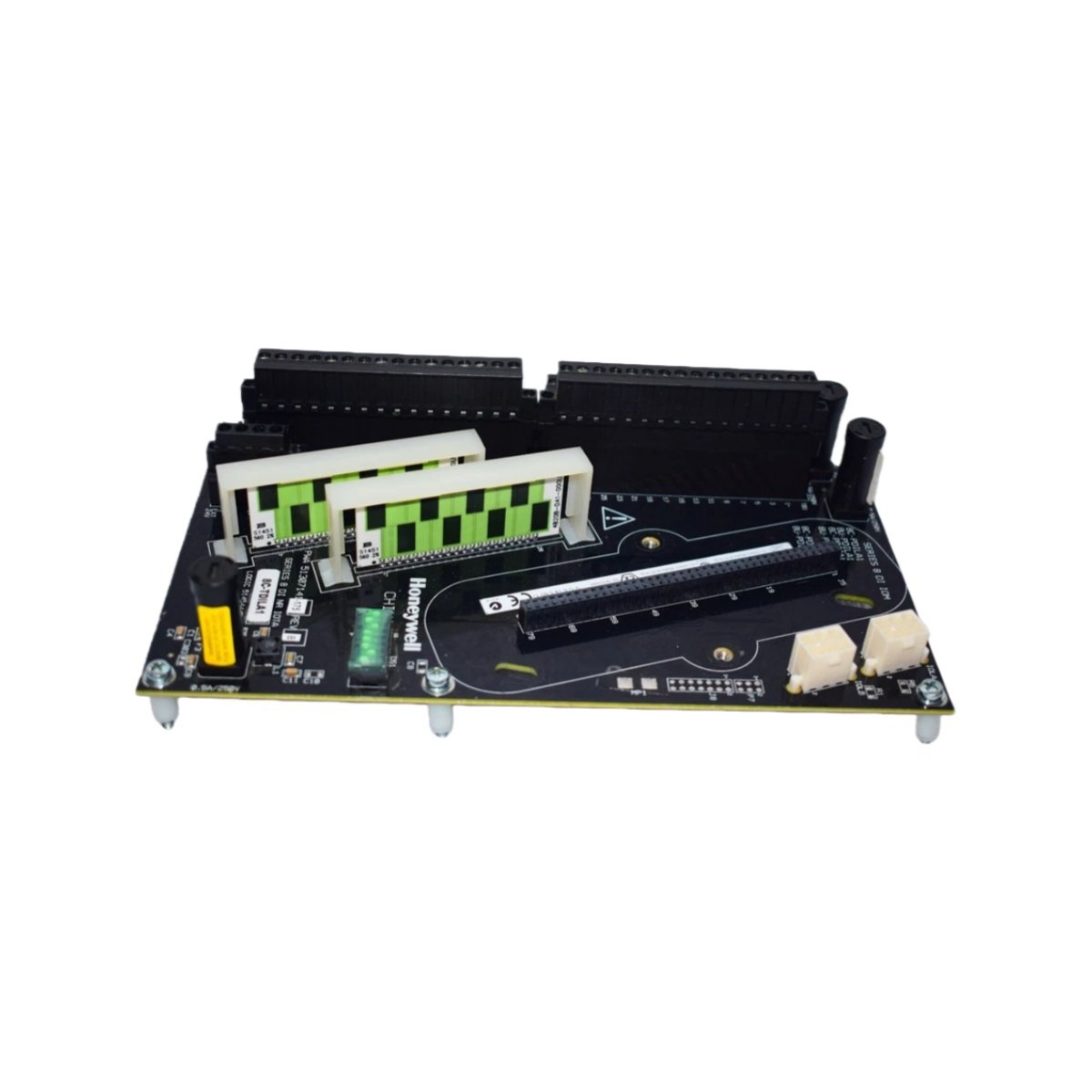

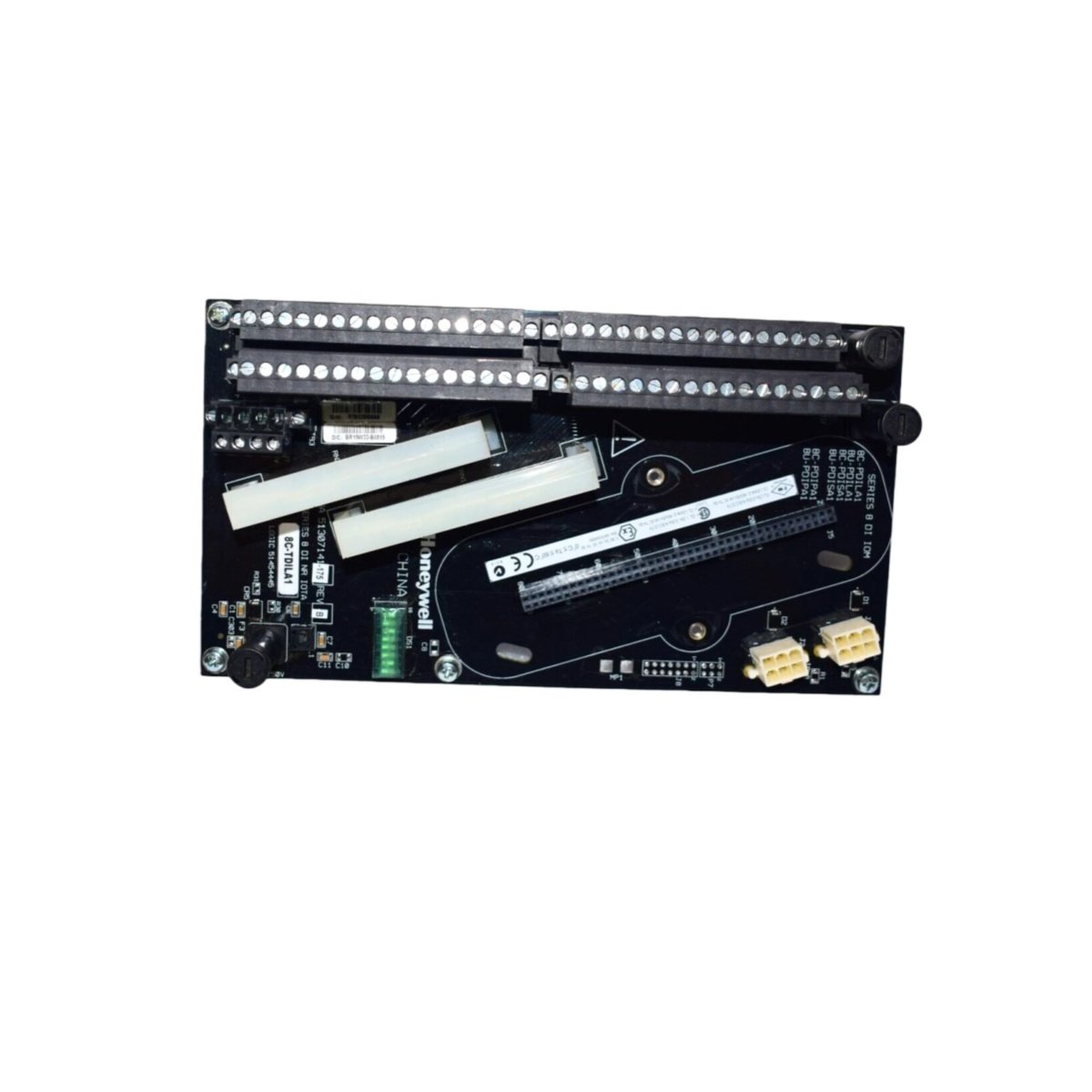

The Honeywell 8C-TDILA1 counts and accumulates high-speed digital pulses with precision. As a member of the Series 8 PLC family, it reliably handles tasks like speed and position measurement. This module turns sensor pulses into actionable data for control logic.
Key Capabilities for Measurement and Monitoring
This module captures pulse rates of up to 100 kHz for fast-moving events. Its high input impedance easily interfaces with dry contacts and optical encoders. Furthermore, you can parallel two 8C-TDILA1 modules to double your input channel capacity.
Detailed Technical Specifications
The following table presents the core performance and operational parameters of the Honeywell.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Honeywell 8C-TDILA1 |
| Product Type | Digital Input Pulse Accumulation Module |
| System Family | Honeywell Series 8 PLC |
| Input Electrical | 24 VDC Range, 10 MΩ Impedance |
| Pulse Counting | Up to 100 kHz Frequency |
| Conversion Performance | 12-bit Resolution, ±0.1% FS Accuracy |
| Conversion Speed | 1 ms Conversion Time |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to +85°C |
| Key Features | Parallel Connection Capability, Comprehensive Diagnostics |
Engineered for Reliable Diagnostics and Versatile Use
Integrated diagnostics actively check for wiring faults and sensor issues. This proactive monitoring helps prevent unexpected machine downtime. Consequently, the 8C-TDILA1 is ideal for counting events and monitoring complex machine status.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
