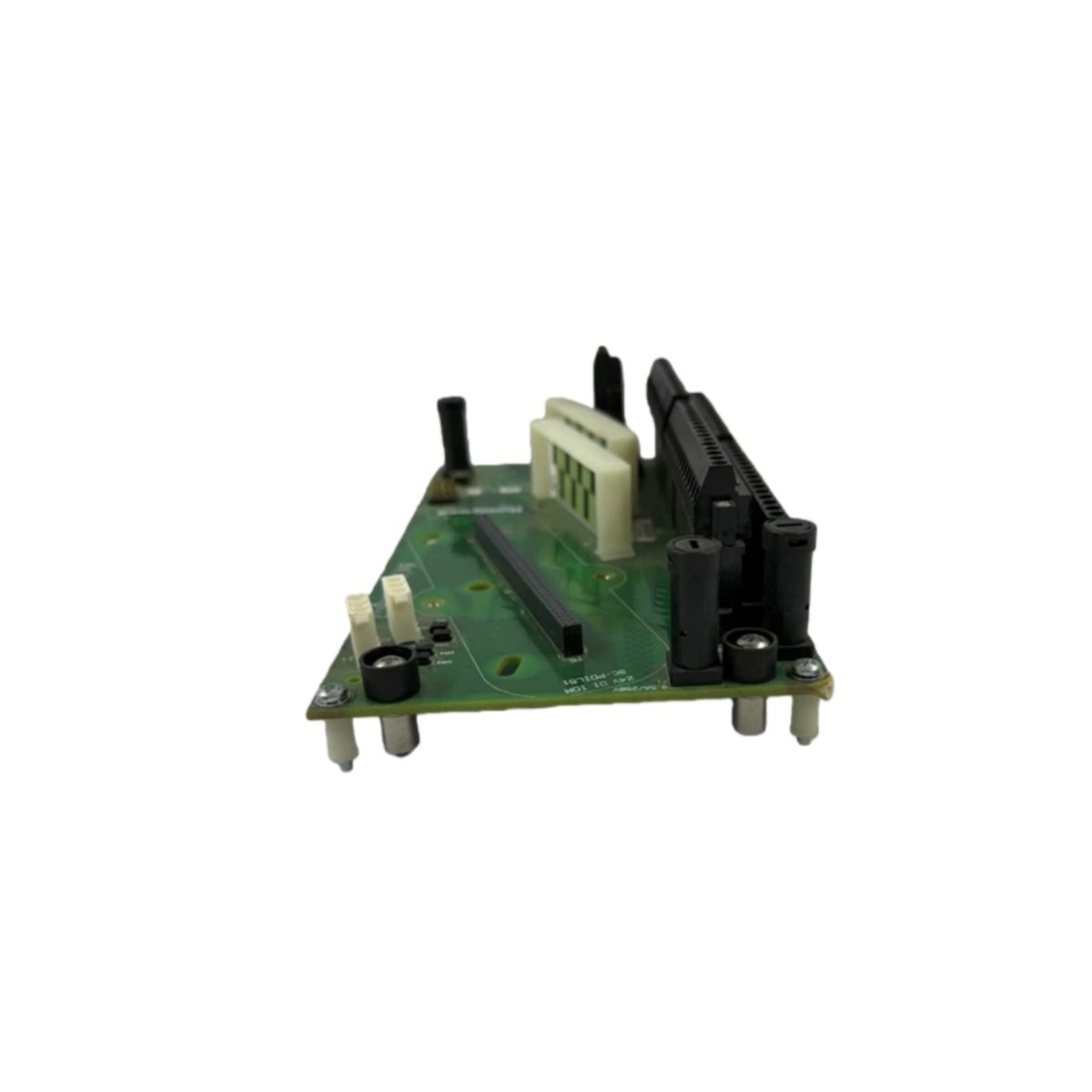

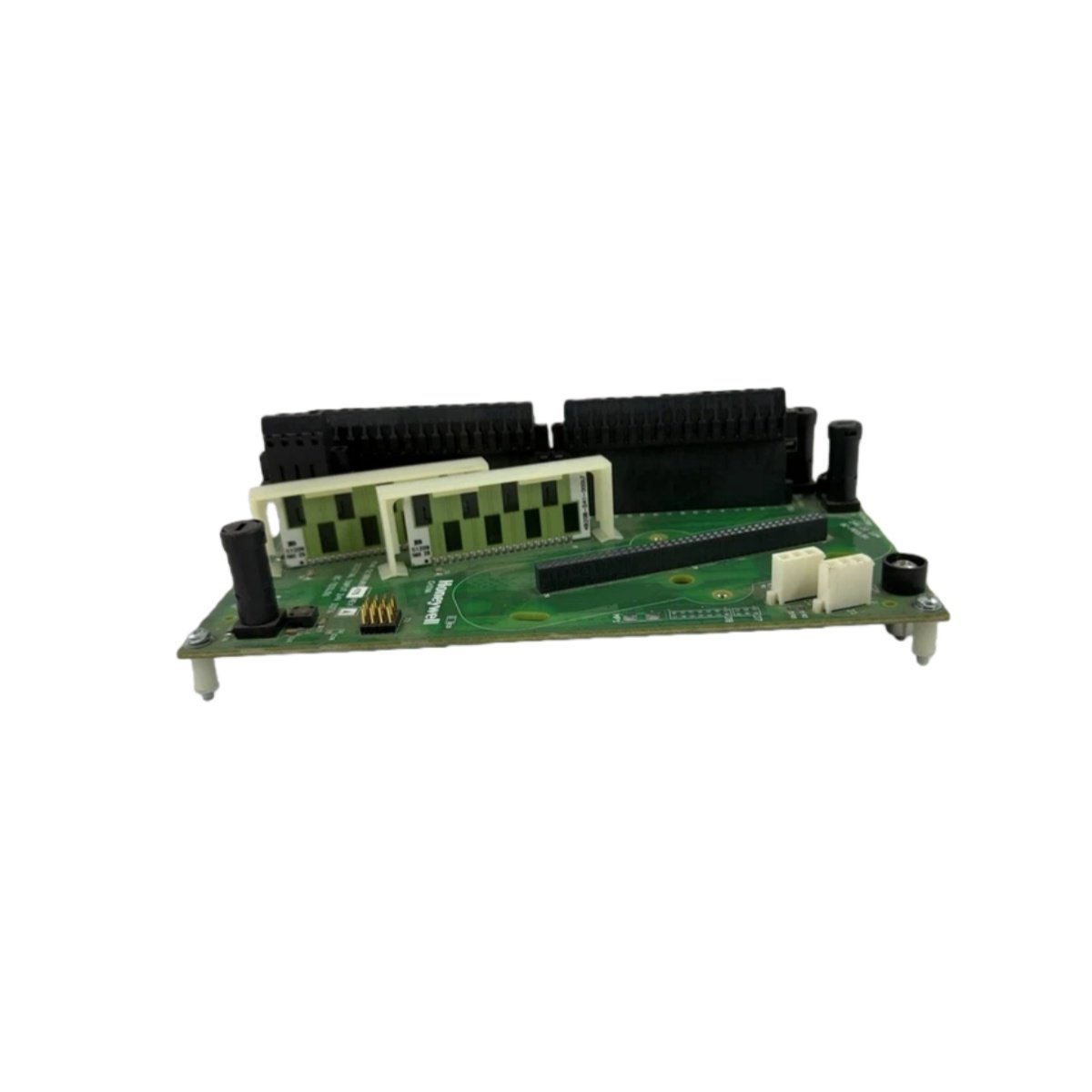

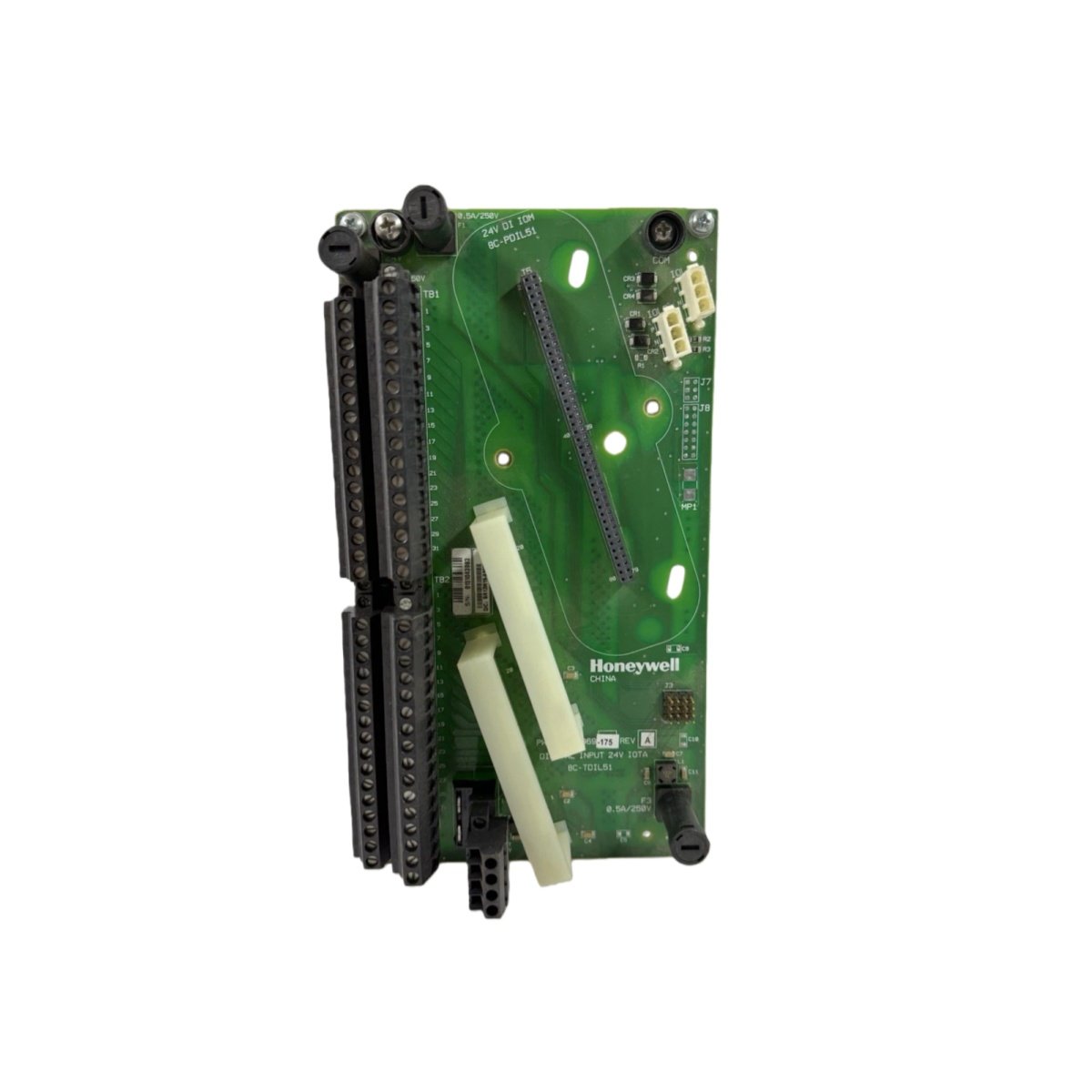

The Honeywell 8C-TDIL61 51306967-175 functions as a robust digital input module, designed specifically for seamless integration into Honeywell’s Series 8 control systems. This module provides a reliable interface for connecting field contacts and monitoring discrete signals within industrial processes. Engineers seeking high-density input capabilities will find this unit essential for modern distributed control architectures.

Module Design and Physical Specifications

Honeywell engineered the 8C-TDIL61 51306967-175 with a compact form factor to optimize cabinet space without compromising performance. The module features a sturdy construction that withstands harsh industrial environments while maintaining signal integrity. Its precise dimensions allow for straightforward installation into standard mounting racks.

Specifically, this module occupies a single slot position within the Series 8 I/O chassis. The unit includes front-panel LED indicators that provide immediate visual confirmation of channel status and diagnostic information. This design enables operators to quickly identify signal states without additional equipment.

Input Channels and Electrical Characteristics

The Honeywell 8C-TDIL61 51306967-175 accommodates twenty-four digital input channels, each accepting 24 VDC signals. Every channel operates independently to monitor dry contacts or solid-state devices. Consequently, this configuration suits applications requiring multiple discrete point monitoring.

Each input channel includes optical isolation to protect internal circuitry from field-side transients. This isolation prevents ground loops and enhances system reliability in electrically noisy environments. The module also incorporates built-in filtering to reject spurious signals and contact bounce.

Operational Parameters and Performance

For accurate signal detection, the 8C-TDIL61 51306967-175 defines specific voltage thresholds. The module recognizes an ON state for input voltages between 15 VDC and 30 VDC. Conversely, it registers an OFF state for voltages below 5 VDC. These well-defined thresholds ensure consistent operation across varying field conditions.

The module provides a nominal input current of approximately 6 mA per channel at 24 VDC. This low current draw minimizes power consumption while maintaining reliable field device sensing. Furthermore, the module includes channel-to-channel isolation to prevent fault propagation.

Installation and System Integration

Integrating the Honeywell 8C-TDIL61 51306967-175 into your control system requires minimal configuration effort. The module communicates with the controller via the Series 8 backplane, supporting high-speed data exchange. Technicians can install or replace the module without disturbing field wiring.

Field wiring connects through detachable terminal blocks, simplifying maintenance and replacement procedures. The terminal blocks accommodate standard industrial wire gauges, ensuring secure connections. Additionally, the module supports hot-swapping, allowing replacement without powering down the system.

Technical Specifications Overview

The following table summarizes the key technical parameters for this digital input module:

Why Choose This Honeywell Input Module

Therefore, the 8C-TDIL61 51306967-175 delivers exceptional value for applications requiring multiple discrete inputs. Its high channel count reduces the total number of modules needed for large systems. This efficiency translates to lower spare parts inventory and reduced cabinet space requirements.

Honeywell’s reputation for quality ensures this module provides long-term reliability in continuous operation. The robust design withstands temperature variations, vibration, and electrical noise common in industrial settings. Ultimately, this module represents a sound investment for maintaining or expanding your Honeywell control infrastructure. You can explore compatible components and system details through our product listings.
