Product Description:

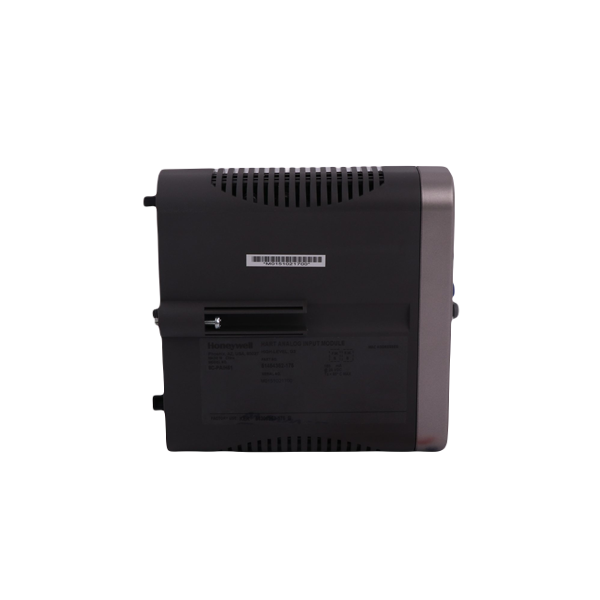

The Honeywell 8C-TDIL51 51306969-175 is a robust Digital Input Module designed for industrial control systems. It processes 24VDC digital signals and ensures reliable communication between field devices and the system. This module is equipped with advanced diagnostic features, including Open Wire Detection (OWD), to guarantee data integrity.
Key Features:
- Comprehensive Diagnostics: Ensures high data integrity with advanced internal diagnostics and Open Wire Detection (OWD).
- Redundancy Option: Supports optional redundancy for critical systems.
- Field Power Selection: Offers flexibility with internal or external power configuration.
- Non-Incendive Power Supply: Supplies non-incendive field power for internal power applications.
- Galvanic Isolation: Provides optical isolation between the system and the field for protection against electrical faults.
Specifications:
| Parameter | Specification |
|---|---|
| Input/Output Model | 8C-PDIL51 – 24V Digital Input, Coated |
| IOTA Model | 8C-TDIL51 Non-Redundant, Coated 9” |
| Input Channels | 32 |
| Galvanic Isolation | 1000 VAC RMS (System-to-Field) with user-supplied power |
| Isolation Technique | Optical (in IOM) |
| DI Power Voltage Range | 18 to 30 VDC (for user-supplied field power) |
| ON Sense Voltage/Current | ≥ 13 VDC or ≥ 3 mA |
| OFF Sense Voltage/Current | ≤ 5 VDC or ≤ 1.2 mA |
| Input Impedance | 4.2 KΩ |
| Absolute Delay | 5 ms ± 20% |
Applications:
The 8C-TDIL51 Digital Input Module is ideal for a wide range of industrial control and automation systems, including:
- Process Automation: Facilitates signal input for monitoring and control.
- Power Plants: Supports integration with safety and control systems.
- Legacy System Upgrades: Provides compatibility with existing systems requiring 24VDC input.
FAQ
- What is the input voltage range for the Honeywell 8C-TDIL51 module?
The 8C-TDIL51 supports a voltage range of 18 to 30 VDC for field power, offering flexible installation options. - How does the 8C-TDIL51 module ensure data integrity?
The module features advanced diagnostics, including Open Wire Detection (OWD), to ensure high data integrity and system reliability. - Can I use the 8C-TDIL51 module in redundant applications?
Yes, the 8C-TDIL51 module supports redundancy for critical industrial applications, ensuring system reliability. - What is the isolation rating of the 8C-TDIL51 module?
The module provides 1000 VAC RMS galvanic isolation between the system and field, with optical isolation in the IOM.
