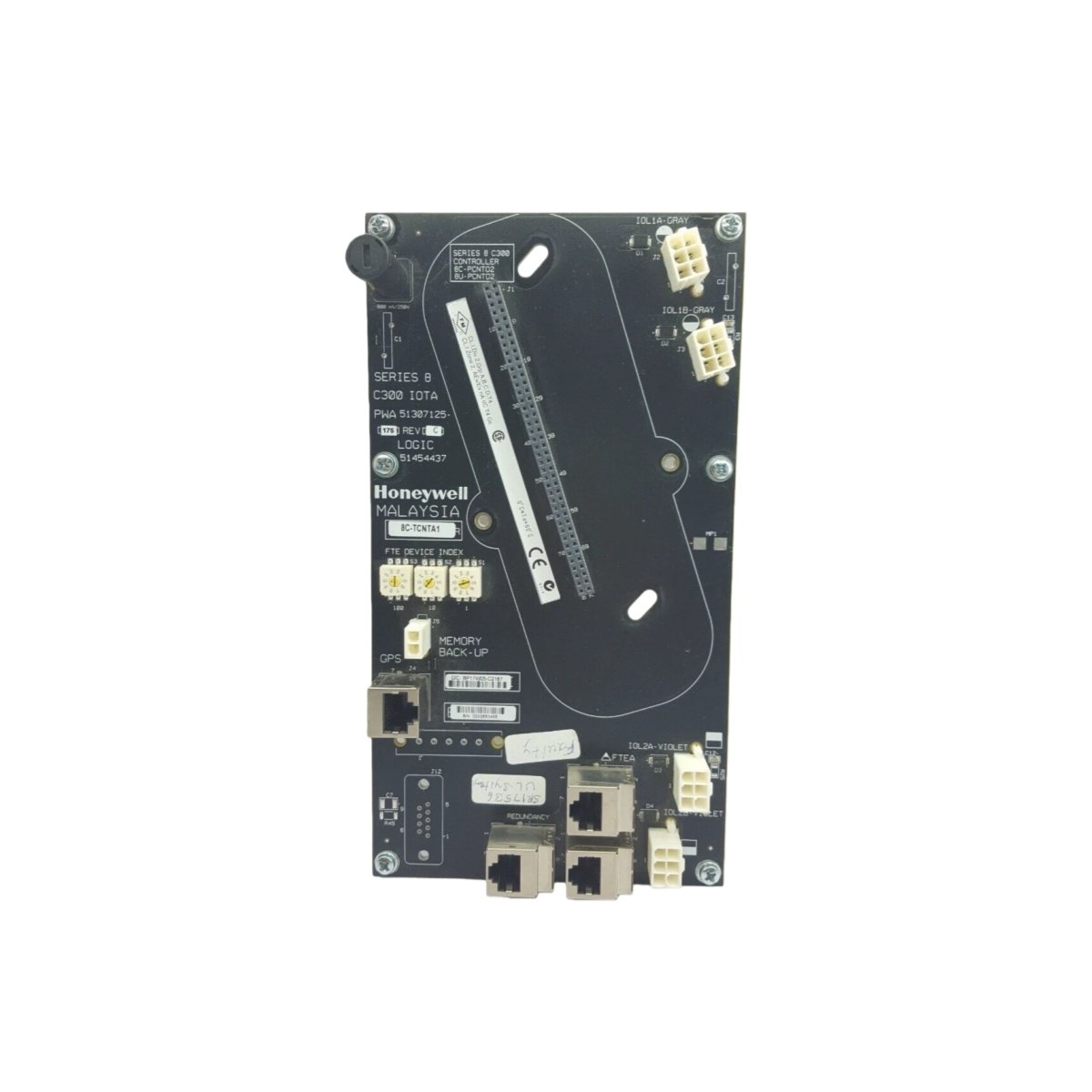

Distributed control systems require reliable termination points for connecting field wiring to controller I/O modules. The Honeywell 8C-TCNTA1 serves as a passive I/O Termination Assembly (IOTA) specifically engineered for Honeywell’s Series 8 C300 controller platform. This termination assembly therefore provides organized and protected connections for up to 32 I/O points.

Comprehensive I/O Support for Digital and Analog Signals

Modern process control applications require interface capabilities for diverse signal types and field devices. The 8C-TCNTA1 accommodates both digital and analog I/O signals at 24 VDC levels for maximum flexibility. You can consequently connect sensors, actuators, and transmitters directly through this single termination assembly.

Built-in Data Retention for Process Integrity

Process control systems must maintain critical data through momentary power interruptions for safe operation. The Honeywell 8C-TCNTA1 includes an onboard battery that preserves RAM data during power loss events. This feature ensures your controller retains configuration and process values without corruption or manual reloading.

Precision Addressing with FTE Switches

Proper I/O module identification requires accurate addressing within the control network configuration. The 8C-TCNTA1 incorporates FTE address switches that enable precise assignment for each connected module. You can therefore establish clear communication paths between the controller and individual I/O points.

Electronic Short-Circuit Protection for Field Circuits

Field wiring faults can damage sensitive control electronics if adequate protection measures are absent. The Honeywell 8C-TCNTA1 features electronic short-circuit protection for all connected I/O circuits. This protection automatically limits fault currents to prevent damage while maintaining system availability.

Extreme Environmental Tolerance for Global Deployment

Process facilities operate in diverse climates from arctic regions to desert locations. The 8C-TCNTA1 functions reliably across an operating temperature range of -40 to 85°C. You can consequently deploy this IOTA in outdoor installations, unheated enclosures, or temperature-controlled control rooms with equal confidence.

Robust Mechanical Construction for Industrial Vibration

Rotating equipment and nearby machinery generate vibration that can compromise electronic connections. The 8C-TCNTA1 withstands 5 g RMS vibration from 10 to 500 Hz without performance degradation. This ruggedness ensures reliable operation in compressor stations, pump houses, and other vibration-prone environments.

Conformal Coating for Environmental Protection

Harsh industrial atmospheres contain corrosive gases, humidity, and particulate contaminants. The Honeywell 8C-TCNTA1 includes conformal coating that shields circuit boards from environmental damage. This protective layer extends service life in chemical plants, refineries, and offshore installations.
