Product Overview

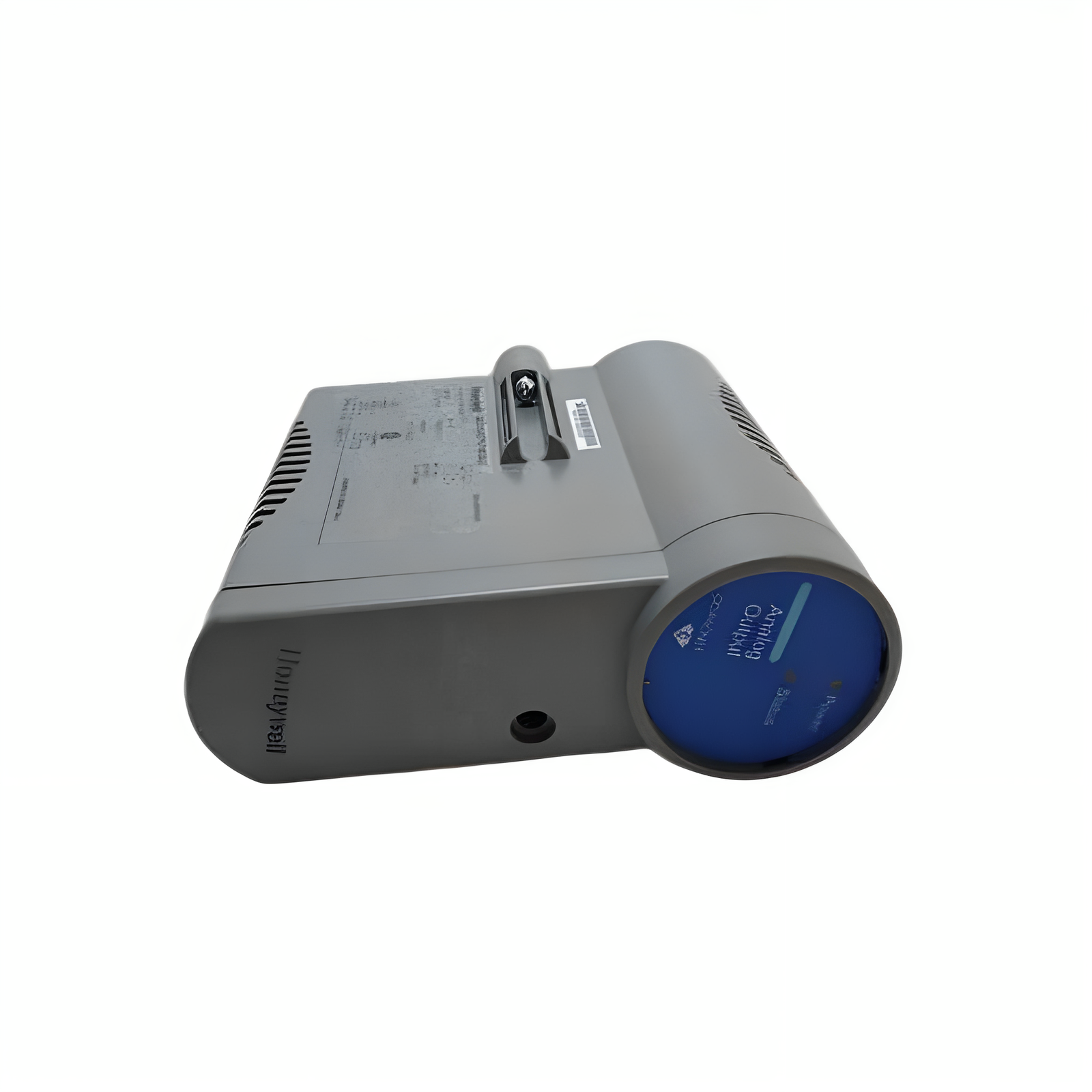

The Honeywell 8C-PAON01 (Part No. 51454357-175) is a high-level analog output module designed for accurate signal control in process automation. It provides 16 output channels, each delivering 4–20 mA current for actuators, recorders, or indicators.
Moreover, it integrates extensive self-diagnostics, open-wire detection, and output readback to ensure high system reliability. The module supports redundant configurations for uninterrupted operation and allows FAILOPT safe-state setup per channel.
Functional Highlights
- Comprehensive Diagnostics: Constant monitoring identifies wiring issues and ensures stable analog output.
- Configurable Safe-State Options: Choose between Hold Last Value or Shed to Safe Value on failure.
- Redundancy Ready: Works with redundant IOTA (CC-TAON11) to maintain continuous output.
- High Accuracy: ±0.35% full-scale calibrated accuracy at 25 °C ensures dependable performance.
- Fast Response: Settles within 80 ms to maintain precise real-time control.
In addition, the module’s design meets demanding automation standards, providing robust output stability even under fluctuating load conditions.
Technical Specifications
| Category | Specification |
|---|---|
| Model | 8C-PAON01 |
| Part Number | 51454357-175 |
| Output Type | 4–20 mA |
| Channels | 16 |
| IOTA Options | CC-TAON01 (Non-redundant, 6 in); CC-TAON11 (Redundant, 12 in) |
| Output Ripple | < 100 mV p-p (250 Ω load) |
| Temperature Drift | 0.005% FS/°C |
| Linearity | ±0.05% FS |
| Calibrated Accuracy | ±0.35% FS @ 25 °C |
| Response Time | ≤ 80 ms (to 1% of final value) |
| Redundancy Switchover | ≤ 10 ms |
| Load Resistance | Up to 800 Ω |
| Supply Voltage | 22–28 V DC |
| Max Output Voltage | 16 V |
| Open Circuit Voltage | 22 V |
| Output Readback Accuracy | ±4% FS |
These precise specifications make the module ideal for critical analog output control in modern process systems.
Application Integration
The 8C-PAON01 module is designed for Honeywell Experion and C300 control environments, ensuring seamless integration into distributed control architectures.
It is widely used in oil and gas, power generation, and chemical process plants where analog precision and redundancy are crucial. Furthermore, its diagnostics simplify maintenance and reduce system downtime during critical operations.
