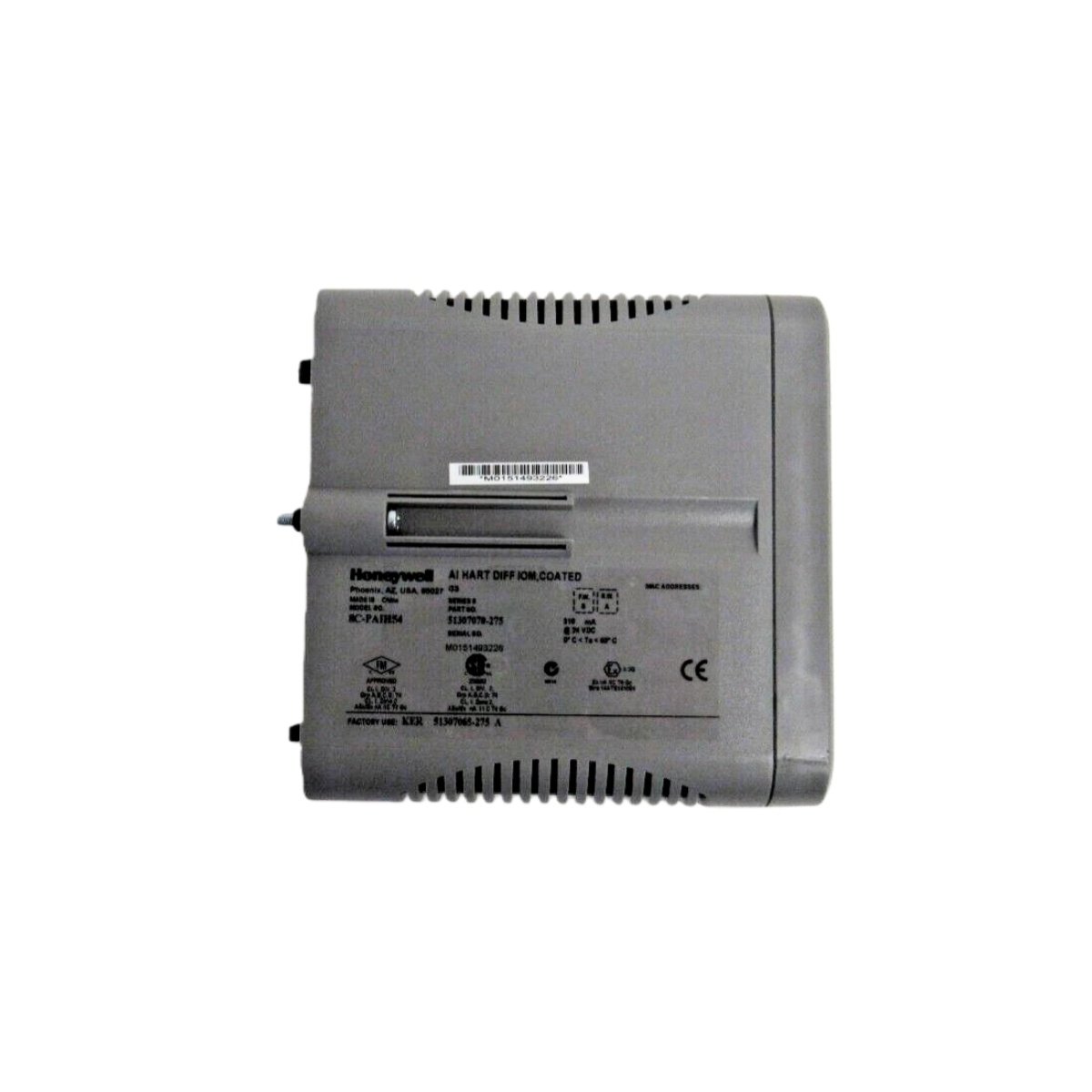

The 8C-PAIH54 51307070-275 from Honeywell functions as a high-performance analog input module for industrial distributed control systems. This unit acquires and converts analog signals from field instruments into precise digital values for processing and control. Its multi-channel design accommodates various signal types including current, voltage, and temperature inputs. Consequently, process facilities achieve accurate monitoring of critical parameters such as pressure, flow, level, and temperature.
Weighing approximately 1.32 lbs (0.60 kg), the 8C-PAIH54 51307070-275 features a rugged industrial enclosure suitable for mounting in Honeywell control system racks. The module accepts multiple analog input channels with high-resolution analog-to-digital conversion for precision measurement applications. It provides comprehensive signal conditioning for each channel, including filtering, linearization, and scaling to engineering units. Additionally, the unit incorporates channel-to-channel isolation to prevent ground loops and interference between field signals.
Comprehensive Analog Input Capabilities
The 8C-PAIH54 51307070-275 supports various analog signal types including 4-20 mA current loops, 0-10 VDC voltage signals, and direct thermocouple or RTD temperature inputs. Each channel includes programmable input ranges and filtering options to optimize performance for specific field instruments. The module performs automatic linearization for thermocouple types and RTD curves, delivering direct temperature readings to the control system. These features significantly simplify integration while reducing engineering effort during system configuration and commissioning.
Advanced Diagnostic and Monitoring Features
This analog input module incorporates continuous self-diagnostics that verify channel integrity and detect open-wire conditions on field connections. LED indicators provide immediate visual confirmation of module status, communication activity, and channel-specific fault conditions during normal operation. The module reports detailed diagnostic information to the control system, enabling predictive maintenance and rapid troubleshooting. These diagnostic features improve system reliability while reducing mean time to repair for field instrument issues.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Product Type | Analog Input Module |
| Product Line | Series |
| Part Number | 8C-PAIH54 51307070-275 |
| Weight | 1.32 lbs (0.60 kg) approximately |
| Input Types | 4-20 mA, 0-10 VDC, Thermocouple, RTD |
| Channel Configuration | Multiple analog inputs |
| Resolution | High-resolution A/D conversion |
| Signal Conditioning | Filtering, Linearization, Scaling |
| Isolation | Channel-to-channel isolation |
| Temperature Linearization | Automatic for thermocouples and RTDs |
| Diagnostics | Continuous self-diagnostics, Open-wire detection |
| Mounting Type | Honeywell control system rack |
| Status Indicators | LED per channel and module |
| Applications | Pressure, Flow, Level, Temperature monitoring |
| Operating Temperature | Industrial range |
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
