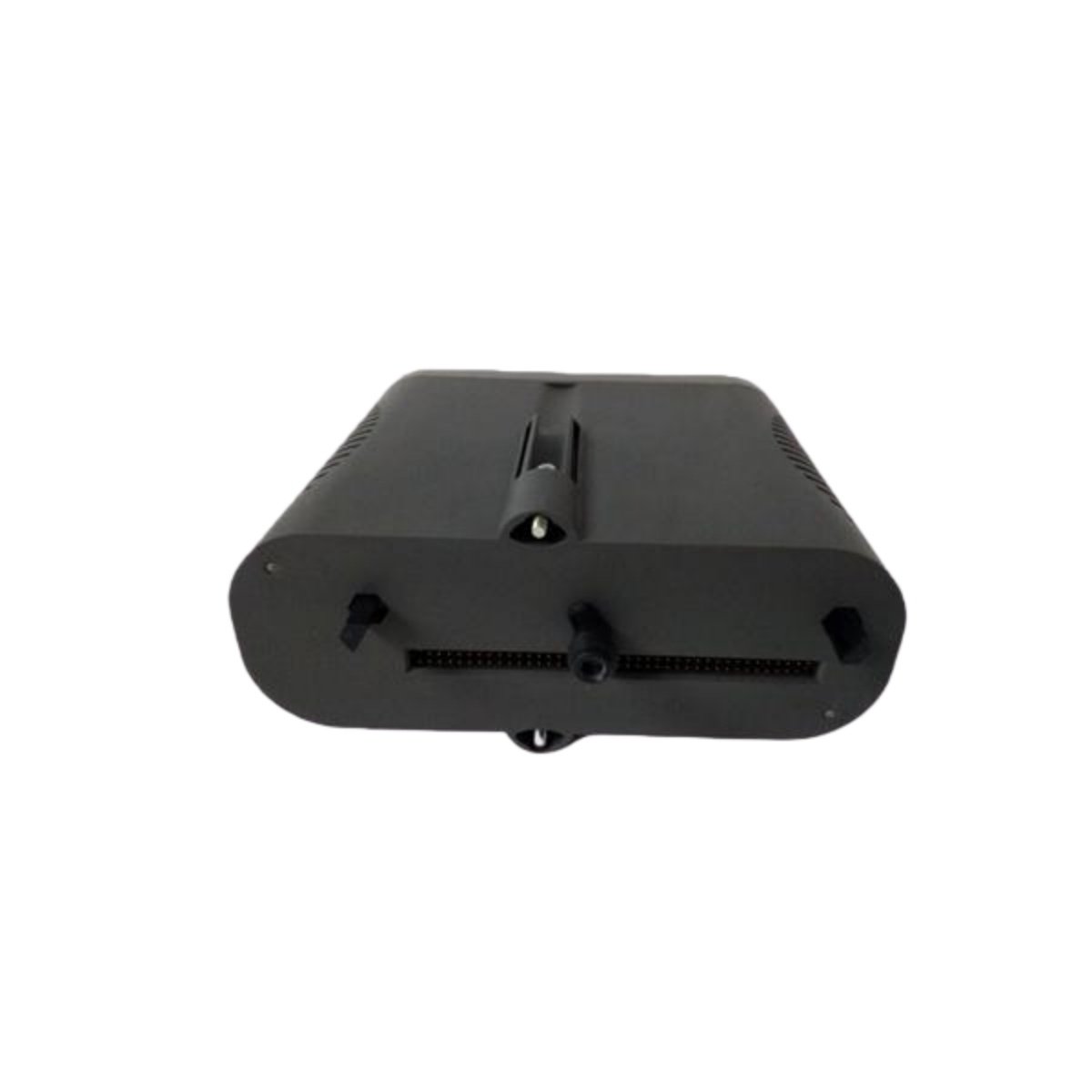

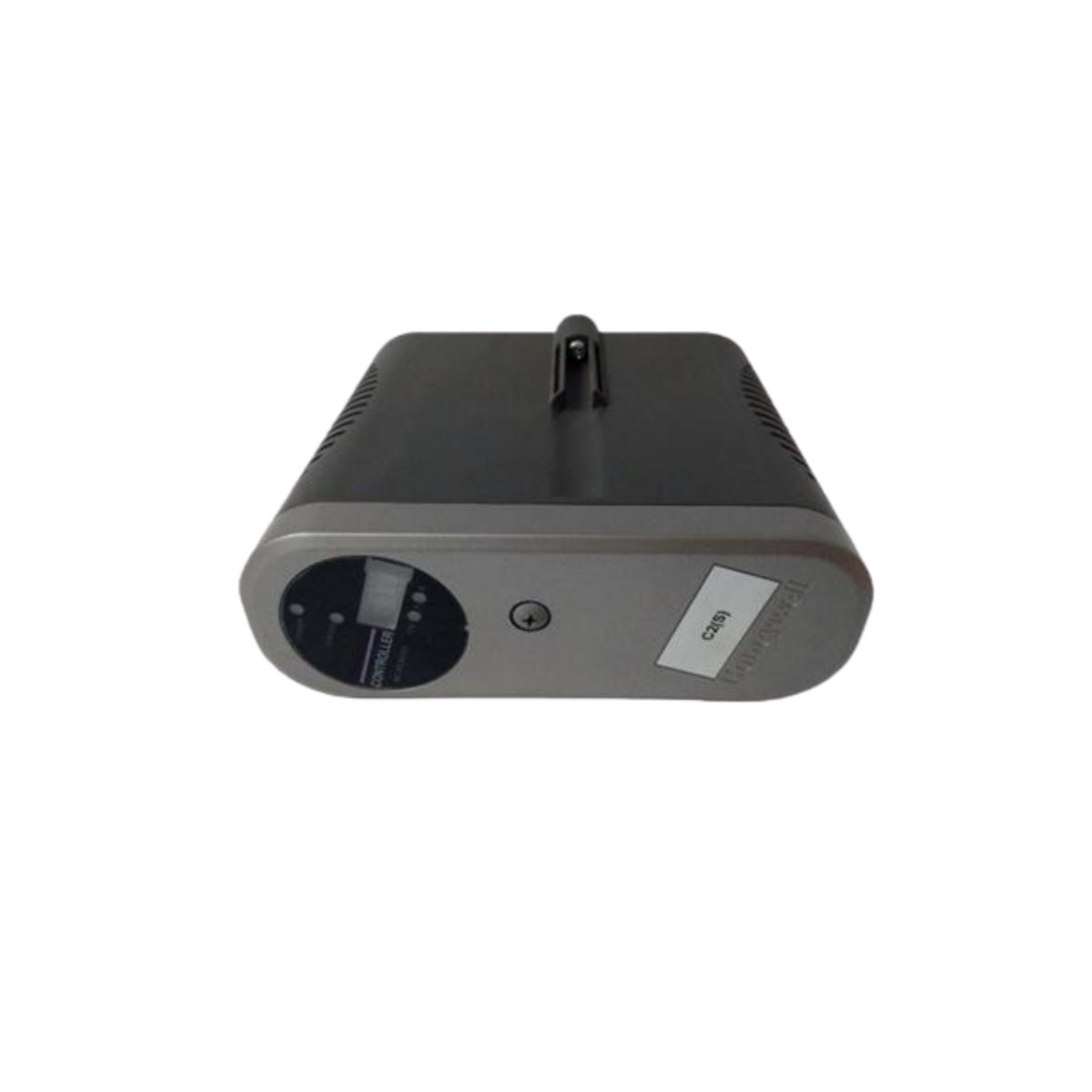

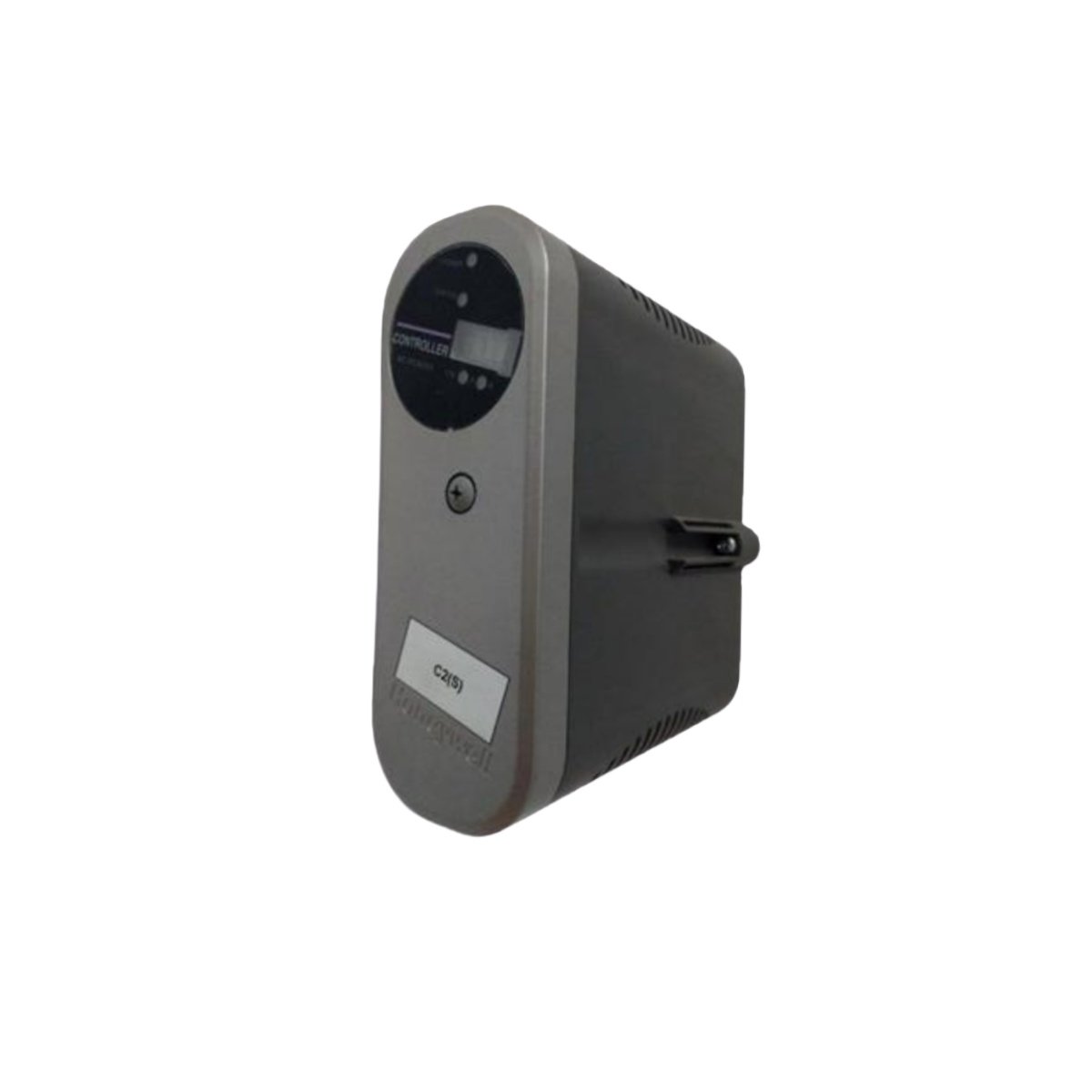

The Honeywell 8C-IP0102 is a dedicated PROFIBUS gateway module for industrial networks. This assembly enables seamless communication between Honeywell’s control systems and PROFIBUS DP/PA field devices. Consequently, it integrates a wide range of third-party sensors and actuators into Honeywell automation architectures.
This module mounts directly onto a standard Series 8 I/O assembly within a cabinet. Furthermore, its design supports asset management and network diagnostics for connected devices. System integrators use this gateway to expand system capabilities without replacing core controllers.
Technical Specifications & Ratings
The Honeywell 8C-IP0102 operates within specific electrical and environmental parameters. The following table outlines its core technical data.
| Parameter | Specification |
|---|---|
| Module Type | PROFIBUS Gateway Assembly |
| Available Finishes | Coated (8C-IP0102) or Uncoated (8U-IP0102) |
| Compatible I/O Assembly | IOTA (64pt) PWA with 8C/8U-TPOXA1 Terminals |
| Supervisory Network | Series 8 FTE (Field Termination Equipment) Node |
| Voltage Rating | 24 VDC |
| Module Current Rating | 438 mA |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting & Power | Requires Standard Series 8 Assembly & Power System |
Communication & Safety Features
This gateway supports comprehensive PROFIBUS DP and PA network functionalities. It acts as a Class-2 Master for asset management via Honeywell’s FDM software. Additionally, the module facilitates HART-over-PROFIBUS communication with compatible slave devices.
The 8C-IP0102 is certified for use in hazardous locations, including Class I Division 2 and Zone 2 areas. Its design allows for module removal and insertion under power for maintenance. However, it requires third-party link modules for implementing DP network media redundancy.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 176 × 35.2 × 212 mm |
