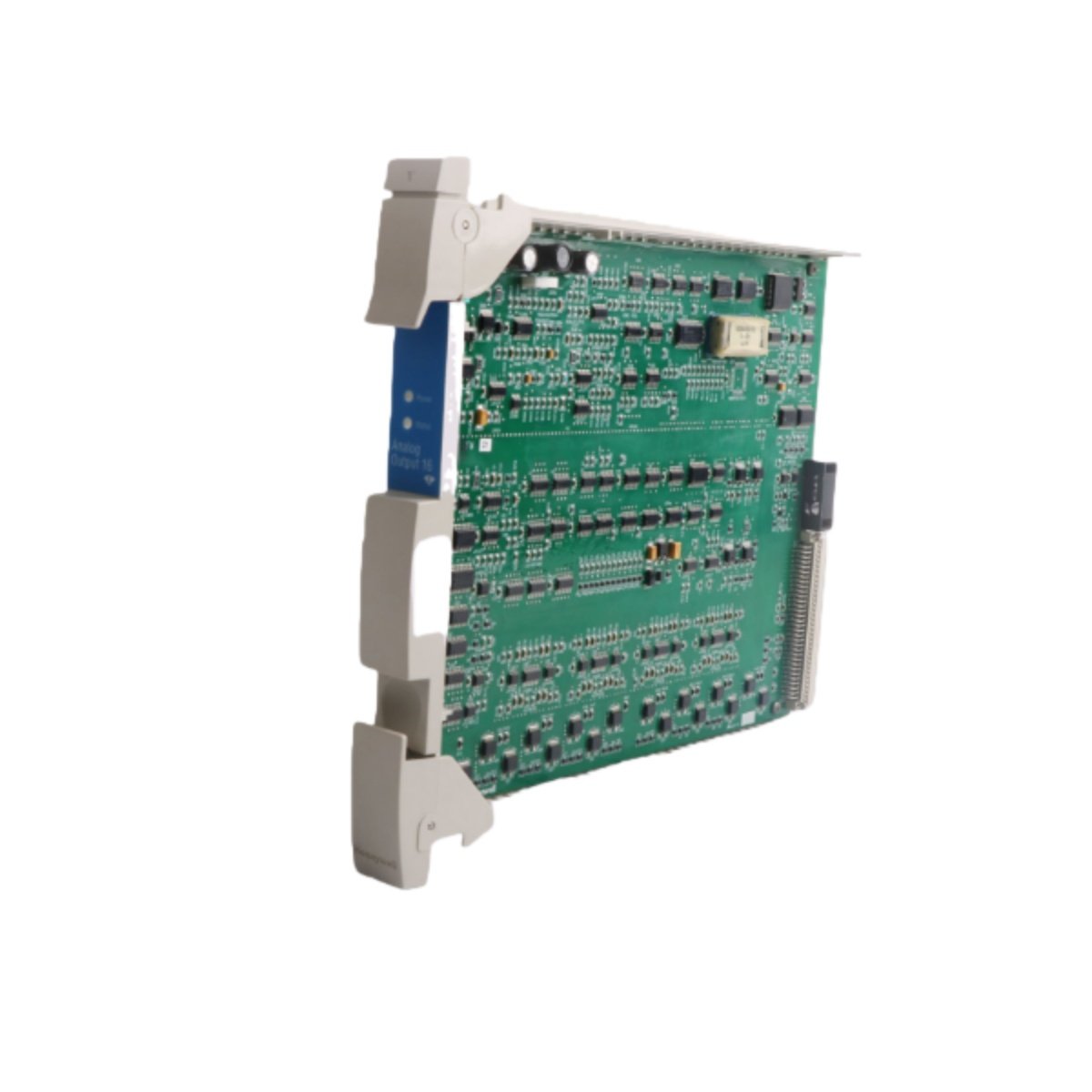

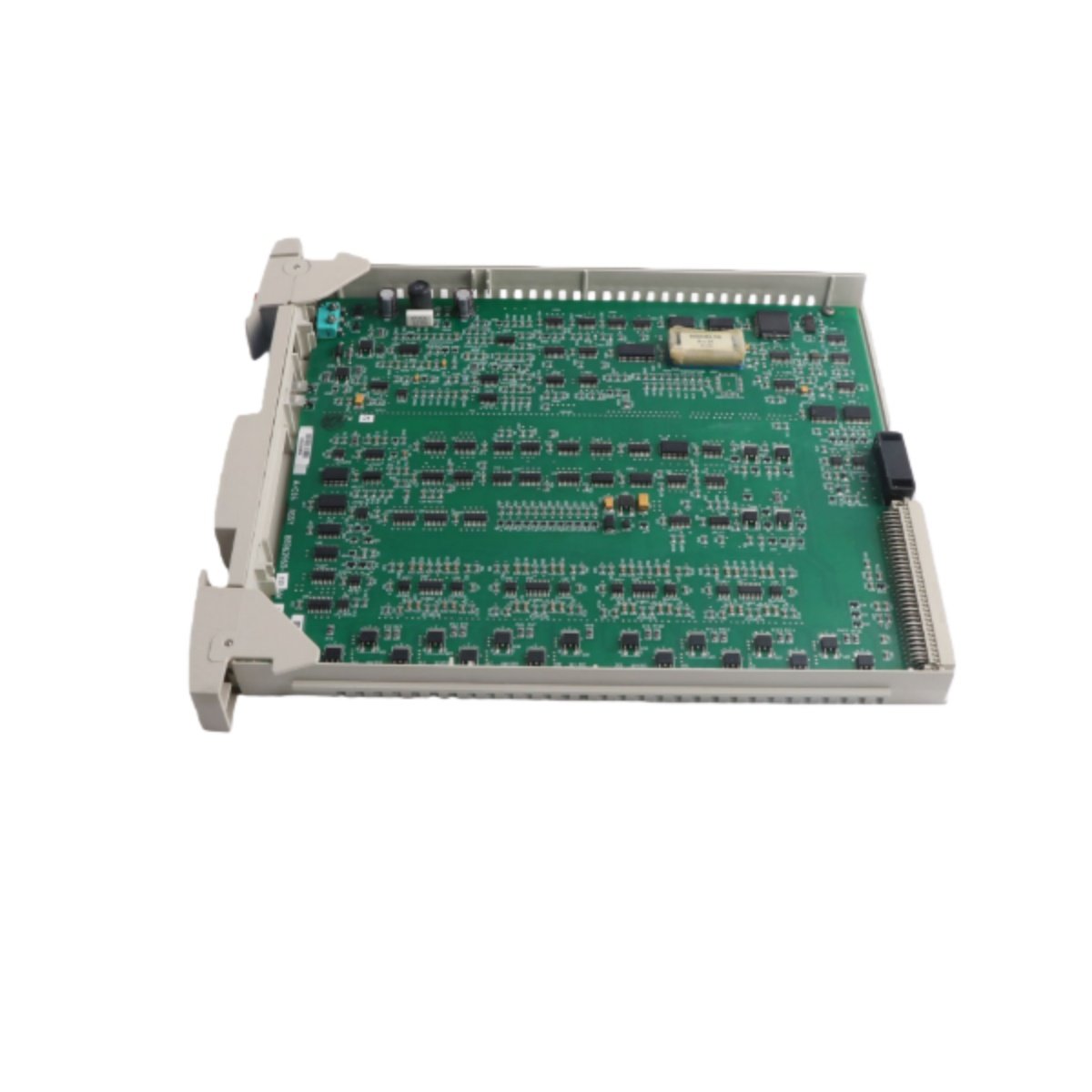

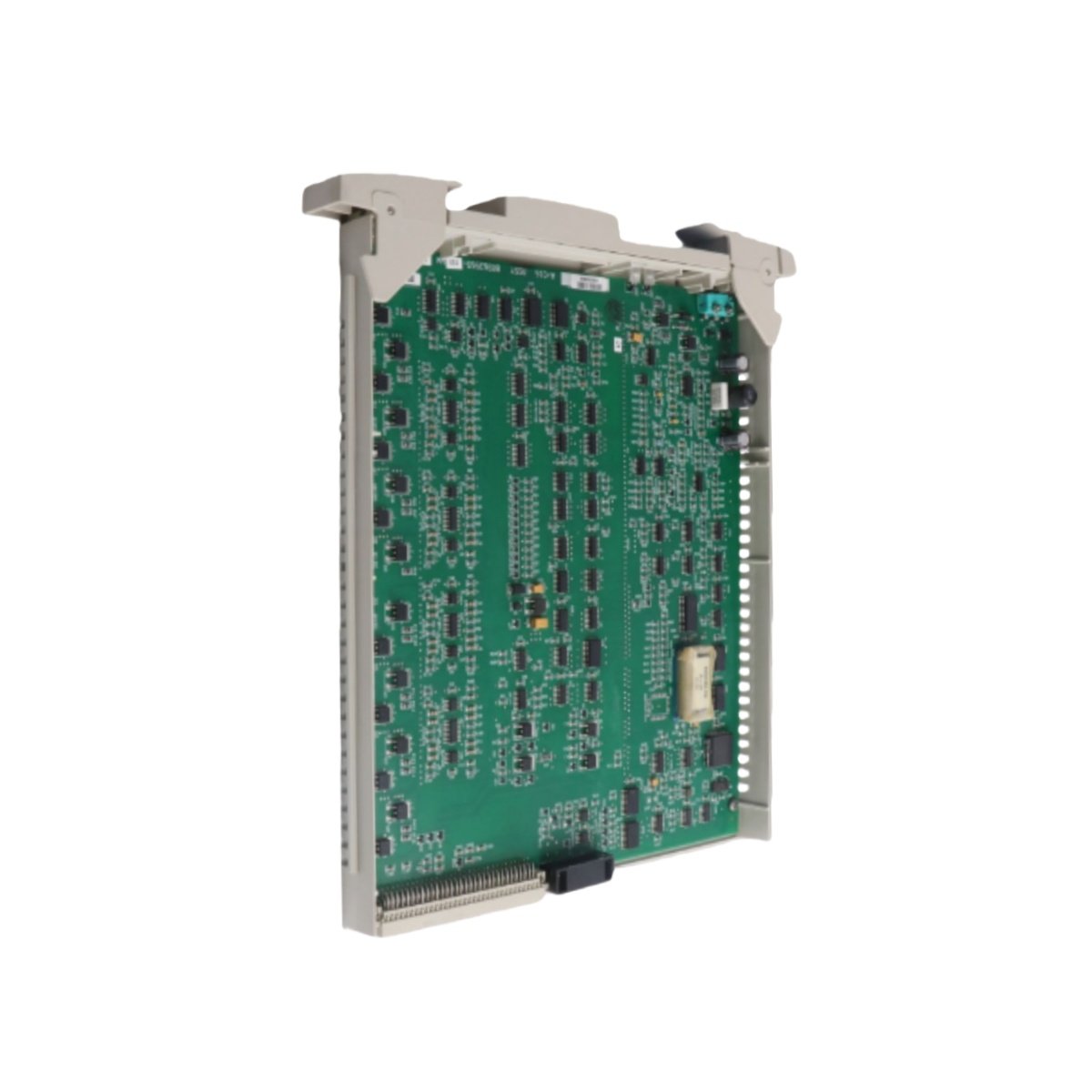

The Honeywell 80363969-150 delivers precision analog control signals for demanding industrial automation applications. This coated module provides reliable communication between the control processor and field devices. It belongs to Honeywell’s family of high-performance analog output solutions for process control. You can depend on its robust construction for consistent signal transmission in harsh environments.
Key Technical Specifications
We engineered the Honeywell 80363969-150 with conformal coating for enhanced protection against environmental contaminants. Its 16-channel design enables efficient control of multiple field devices from a single module. The following table details the precise technical parameters of this analog output processor.
| Specification | Detail |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 80363969-150 |
| Product Type | Analog Output Module |
| Output Channels | 16 Channels |
| Signal Type | Analog Output |
| Processor Type | Analog Output 16 Processor |
| Coating | Conformal Coated for Environmental Protection |
| Output Range | 4-20 mA (Typical) |
| Resolution | High-Precision DAC |
| Isolation | Channel-to-Channel Isolation |
| Operating Temp. | -40°C to +70°C |
| Dimensions | Standard Honeywell Form Factor |
| Mounting | Rack or Panel Mount |
Detailed Functional Overview
The Honeywell 80363969-150 features 16 independent analog output channels for precise field device control. Each channel delivers standard 4-20 mA signals to actuators, positioners, and other analog equipment. Consequently, this module enables fine-tuned process control across multiple loops simultaneously. Its high-resolution digital-to-analog converters ensure accurate signal reproduction without degradation.
Conformal Coating for Harsh Environments
This specific model includes conformal coating protection against moisture, dust, and corrosive contaminants. The protective layer significantly extends module lifespan in challenging industrial settings. Therefore, the 80363969-150 performs reliably in paper mills, chemical plants, and offshore installations. You can install it with confidence in environments where standard modules might fail prematurely.
Integration and Compatibility
As an Analog Output 16 Processor, this module integrates seamlessly with Honeywell distributed control systems. It communicates directly with the main controller to execute complex control strategies. For additional system protection components, you might also evaluate the RMS TSG TZ C Static Trip device for your application. The Honeywell 80363969-150 represents a reliable choice for precision analog control requirements.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
