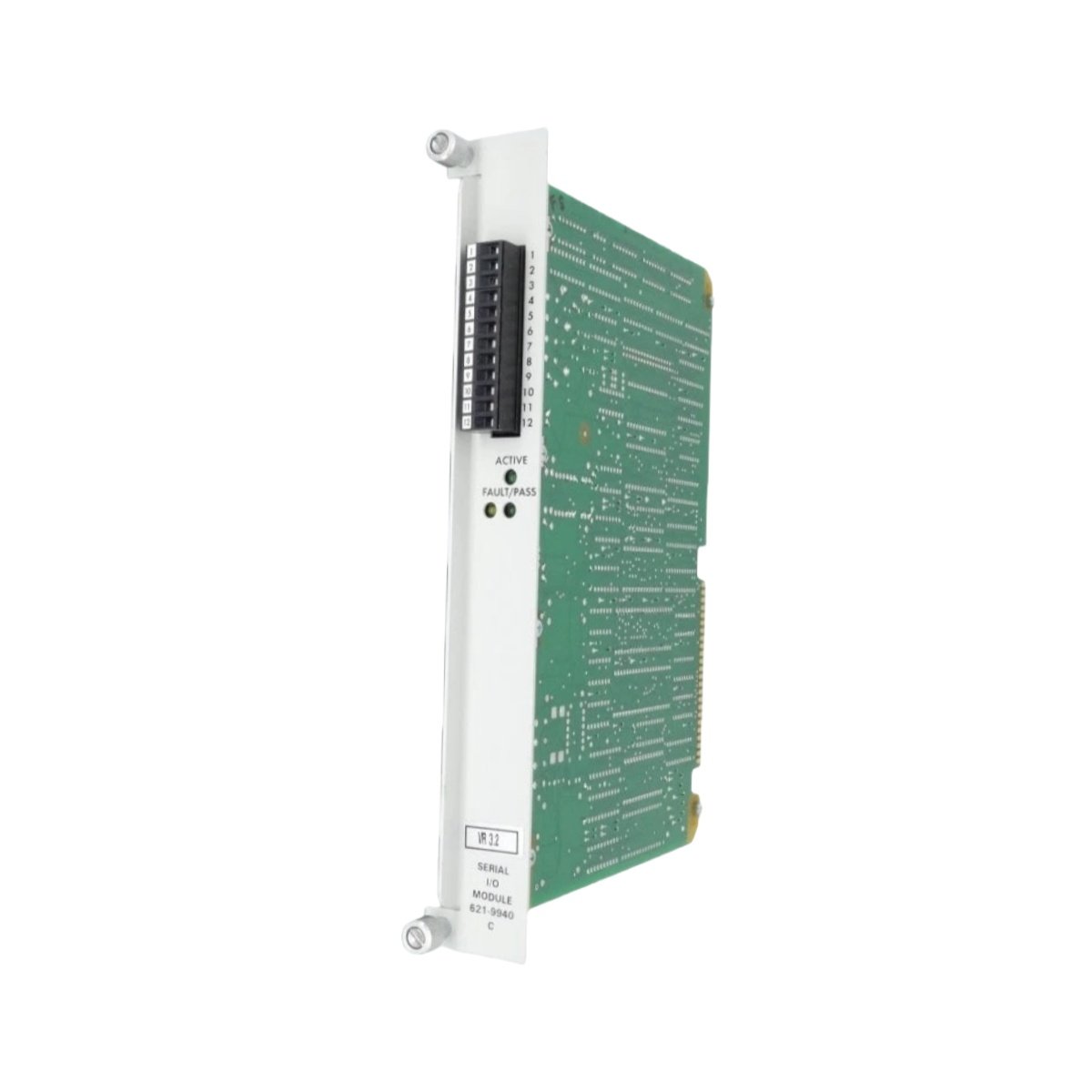

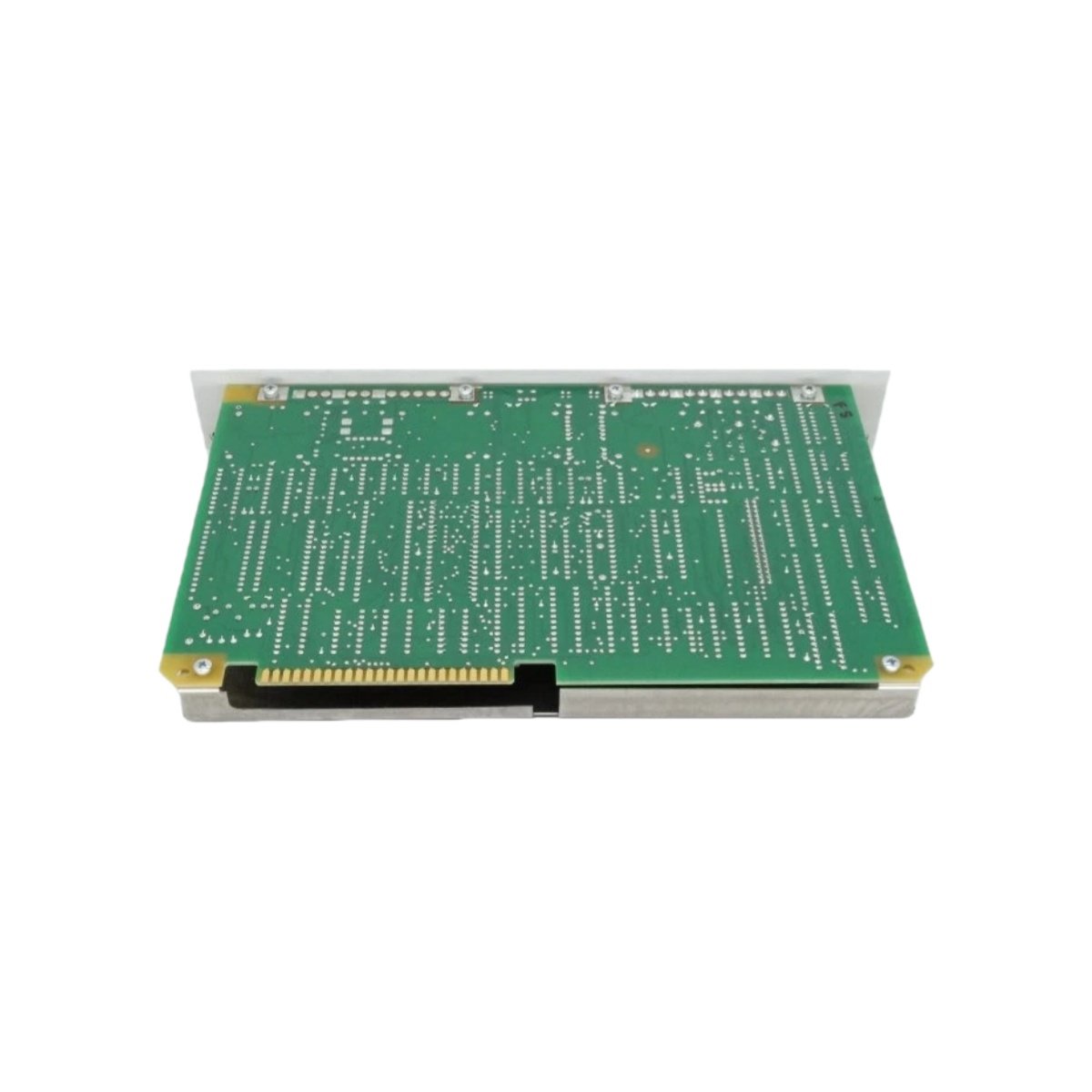

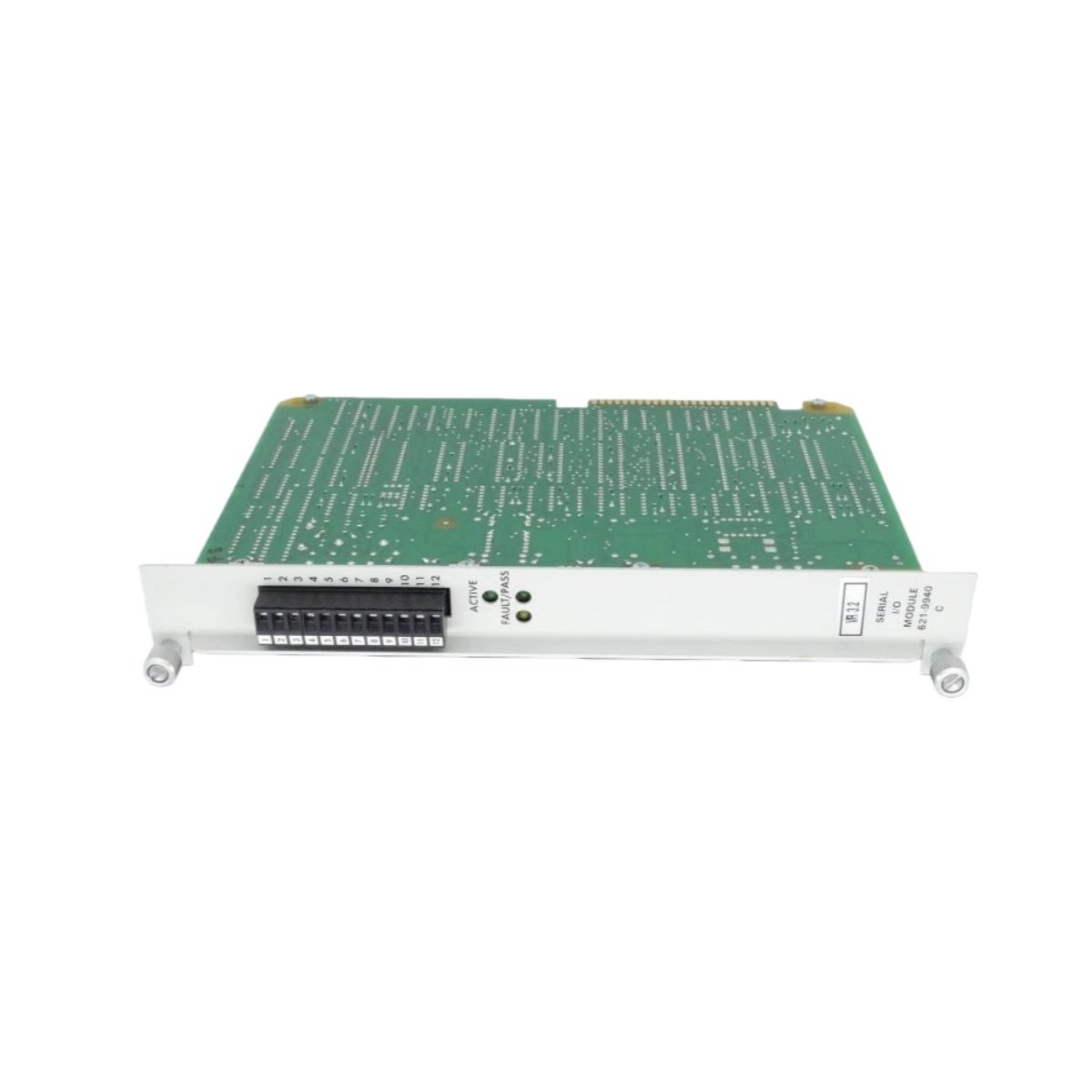

The Honeywell 621-9940C functions as a high-density serial input/output module for programmable logic controller systems. We engineer this communication interface to expand your PLC’s connectivity with up to twelve independent serial ports. This module enables seamless data exchange between the controller and various field devices, instruments, and peripherals. Its robust design ensures reliable performance in continuous industrial automation applications.

Key Features and Operational Benefits

This serial I/O module delivers exceptional value through its multi-port architecture and flexible configuration options. The Honeywell 621-9940C supports simultaneous communication with multiple serial devices through its twelve integrated ports. Consequently, system integrators can connect barcode scanners, printers, weigh scales, and other peripherals without additional expansion hardware. Furthermore, the module’s hot-swappable design allows for replacement without shutting down the entire control system.

Detailed Technical Specifications

Manufacturers construct the Honeywell 621-9940C using industrial-grade components for maximum reliability in harsh environments. The module measures approximately 200 millimeters in height, 100 millimeters in width, and 50 millimeters in depth. Its compact form factor requires minimal panel space while delivering twelve ports of serial connectivity. Additionally, the unit weighs less than 500 grams, making it suitable for vibration-prone industrial installations.

Port Configuration and Connectivity Options

The 621-9940C offers exceptional flexibility through its individually configurable serial ports. You can set each of the twelve ports independently for either RS-232 or RS-485 communication protocols. This configurability allows the module to interface with diverse device types using a single hardware platform. Moreover, software-selectable termination resistors simplify network setup for RS-485 multi-drop applications.

Seamless Integration with Honeywell PLC Systems

Engineers designed the Honeywell 621-9940C for direct integration with Honeywell programmable logic controller families. The module plugs directly into the PLC backplane, communicating through the standard I/O bus architecture. Consequently, programming the serial ports requires only simple ladder logic or function block instructions. This tight integration eliminates the need for separate protocol converters or external communication processors.

Industrial Applications and Use Cases

Process manufacturing facilities rely on the Honeywell 621-9940C for connecting critical serial devices to their control systems. For example, chemical plants use this module to interface tank gauging systems and analytical instruments with the main PLC. Similarly, packaging lines connect barcode scanners and label printers through the twelve available ports. Therefore, this module serves as a central communication hub for diverse automation peripherals.

Data Handling and Memory Management

The 621-9940C incorporates dedicated memory buffers for efficient data handling across all twelve ports. Each port features independent transmit and receive FIFO buffers to prevent data loss during high-speed communication. Additionally, the module supports both polled and interrupt-driven data transfer modes for application flexibility. This intelligent memory management ensures reliable data exchange even during peak communication loads.

Installation and Configuration Guidelines

Proper installation of the Honeywell 621-9940C ensures optimal performance and long-term reliability. First, verify that your PLC backplane has an available slot matching the module’s form factor. Next, configure each port’s protocol and communication parameters using the Honeywell programming software. Finally, connect your serial devices using appropriate cables while observing proper grounding practices for industrial environments.

Maintain System Performance with Genuine Honeywell Modules

Choosing the genuine Honeywell 621-9940C guarantees compatibility and reliability for your automation system. Aftermarket modules may lack the precise timing characteristics required for coordinated multi-port operation. Therefore, always source this serial I/O module from authorized Honeywell distributors and partners. For additional automation components, explore our selection of Honeywell controllers and I/O modules similar to the RMS-TSG-TZ-C Static Trip Unit.
