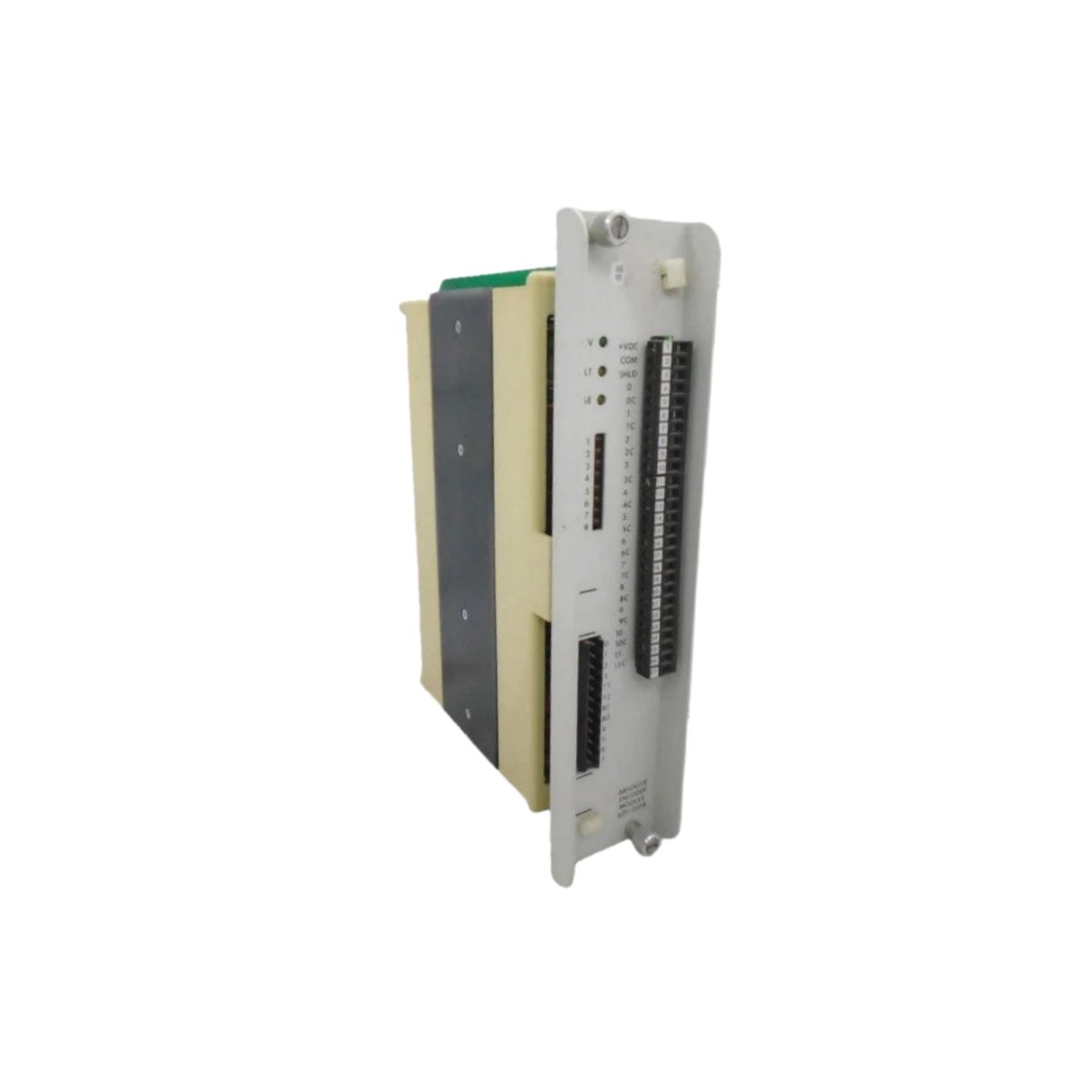

Precision motion control requires accurate absolute position feedback. The Honeywell 621-0018 delivers reliable interface for absolute encoders. This module functions as a position feedback unit from Honeywell. It reads parallel or serial encoder data for industrial automation.
Technical Specifications & Dimensions
This module accepts absolute encoder signals for precise position tracking. The table below outlines its core technical parameters.
| Parameter | Specification |
|---|---|
| Encoder Types Supported | Absolute (parallel, SSI, or Gray code) |
| Input Voltage | 24V DC ±20% |
| Resolution | Up to 25 bits |
| Update Rate | 1 ms typical |
| Number of Channels | 1 encoder channel |
| Input Current | 50 mA typical |
| Output to Controller | Parallel digital or serial |
| Isolation Voltage | 1500V AC (field to logic) |
| Unit Weight | 0.28 kg (0.62 lbs) |
| Dimensions (WxHxD) | 40 x 110 x 75 mm |
| Number of Components | 1 main PCB + terminal blocks |
Construction and Interface Layout
This module features a rugged plastic housing with shielded connectors. Such a design protects encoder signals from electrical noise interference. Furthermore, the Honeywell 621-0018 provides a front-accessible terminal block for field wiring. You will find 12 screw terminals on this interface. Each terminal accepts wire sizes from 0.2 to 1.5 mm². LED indicators show power, data valid, and error status clearly.
Energy Storage and Signal Processing
Unlike simple counter cards, this module includes a dedicated decoder IC. The board uses small capacitors for power filtering and noise suppression. Consequently, the Honeywell 621-0018 reads absolute encoder positions without drift. An internal opto-isolated interface protects the controller from field wiring faults. This isolation prevents ground loops and voltage spikes from damaging the processor. The module does not require any batteries for position retention.
Installation and Mounting Requirements
Installing the Honeywell 621-0018 takes only a few minutes of work. The unit snaps directly onto a standard DIN rail. It also supports screw mounting using the four corner holes. Always disconnect 24V power before wiring or servicing this module. The unit uses passive cooling through natural convection. This design eliminates fan noise and moving parts. The module occupies a compact footprint in the control cabinet.
Integration with Honeywell Control Systems
This encoder module works perfectly with Honeywell PLC and DCS systems. It reads position data from rotary or linear absolute encoders. Operators can use this feedback for motor control and positioning tasks. The Honeywell 621-0018 supports both single-turn and multi-turn encoder types. Consequently, this module remains an excellent choice for precision feedback applications. The unit delivers consistent performance across a 0°C to 55°C temperature range.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
