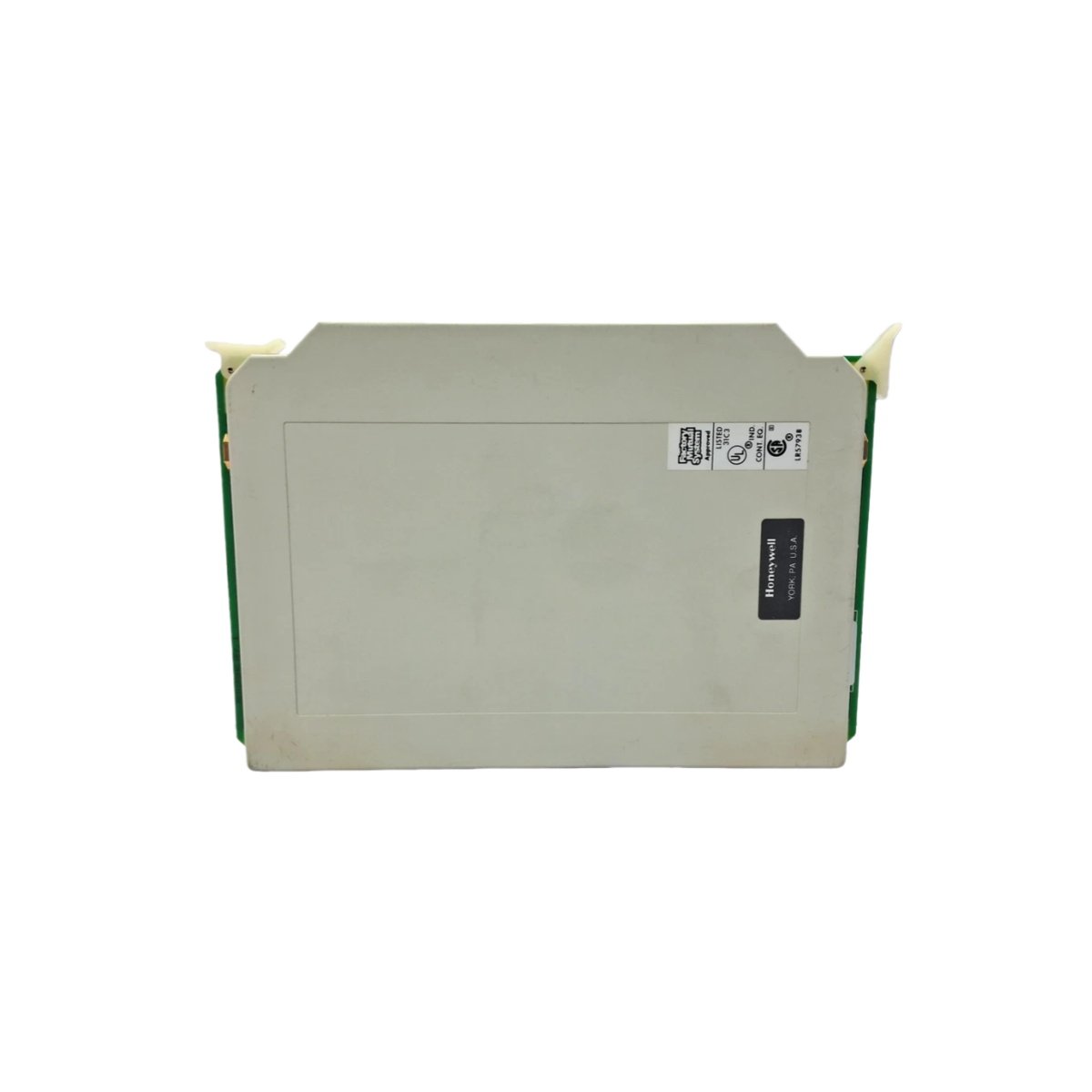

Industrial control applications require flexible I/O handling capabilities. The Honeywell 620-0058 delivers reliable signal interfacing for field devices. This module functions as an I/O control unit from Honeywell. It supports various automation and process control systems.
Technical Specifications & Dimensions
This module handles both input and output signals for flexible configuration. The table below outlines its core technical parameters.
| Parameter | Specification |
|---|---|
| Discrete Inputs | 8 points, 24V DC |
| Discrete Outputs | 8 points, transistor 0.5A |
| Analog Inputs | 2 channels (optional) |
| Analog Outputs | 1 channel (optional) |
| Input Voltage Range | 20.4 to 28.8V DC |
| Output Current per Point | 0.5 A maximum |
| Power Consumption | 4.5 W typical |
| Isolation Voltage | 1500V AC (field to logic) |
| Unit Weight | 0.38 kg (0.84 lbs) |
| Dimensions (WxHxD) | 45 x 110 x 75 mm |
| Number of Components | 1 main PCB + terminal blocks |
Construction and Interface Layout
This module features a rugged plastic housing with removable connectors. Such a design simplifies wiring and future replacement tasks. Furthermore, the Honeywell 620-0058 provides separate terminal blocks for inputs and outputs. You will find screw-type connectors on the front panel. Each terminal accepts wire sizes from 0.2 to 1.5 mm². LED indicators show the status for every I/O channel clearly.
Energy Storage and Signal Processing
Unlike complex controllers, this module uses simple opto-isolation for each channel. The board includes small capacitors for basic signal filtering and debouncing. Consequently, the Honeywell 620-0058 handles noisy industrial field signals reliably. A dedicated power supply regulator provides stable voltage to internal circuits. This regulator requires no external heat sink for normal operation. The module does not require any batteries for configuration storage.
Installation and Mounting Requirements
Installing the Honeywell 620-0058 takes only a few minutes of work. The unit snaps directly onto a standard DIN rail. It also supports screw mounting using the four corner holes. Always disconnect 24V power before wiring or servicing this module. The unit uses passive cooling through natural convection. This design eliminates fan noise and moving parts. The module occupies a compact footprint in the control cabinet.
Integration with Honeywell Control Systems
This I/O module works perfectly with Honeywell PLCs and DCS systems. It interfaces with sensors, switches, solenoids, and indicator lamps. Operators can monitor and control field points through the main controller. The Honeywell 620-0058 also supports both local and remote mounting configurations. Consequently, this module remains a reliable choice for I/O expansion tasks. The unit delivers consistent performance across a 0°C to 55°C temperature range.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
