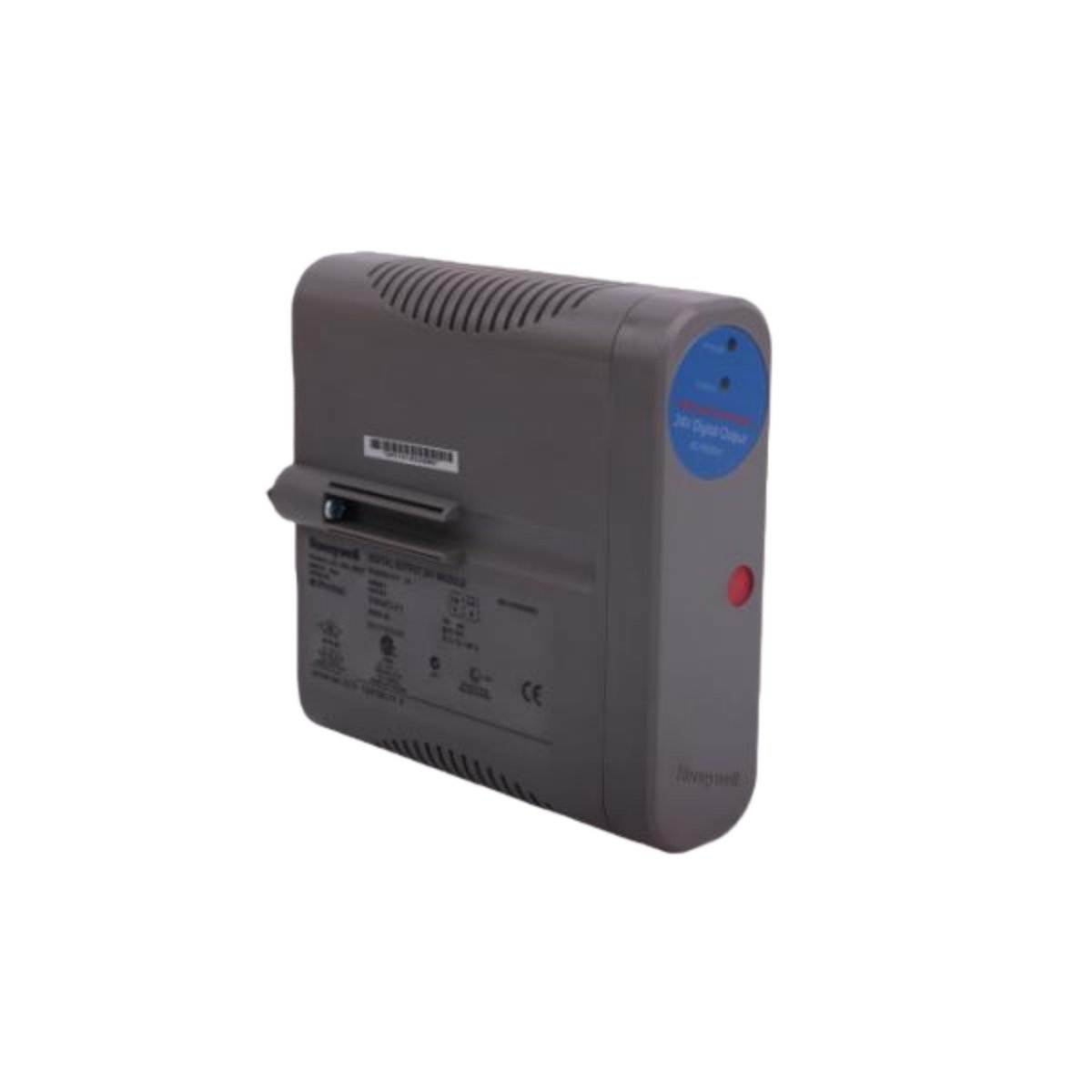

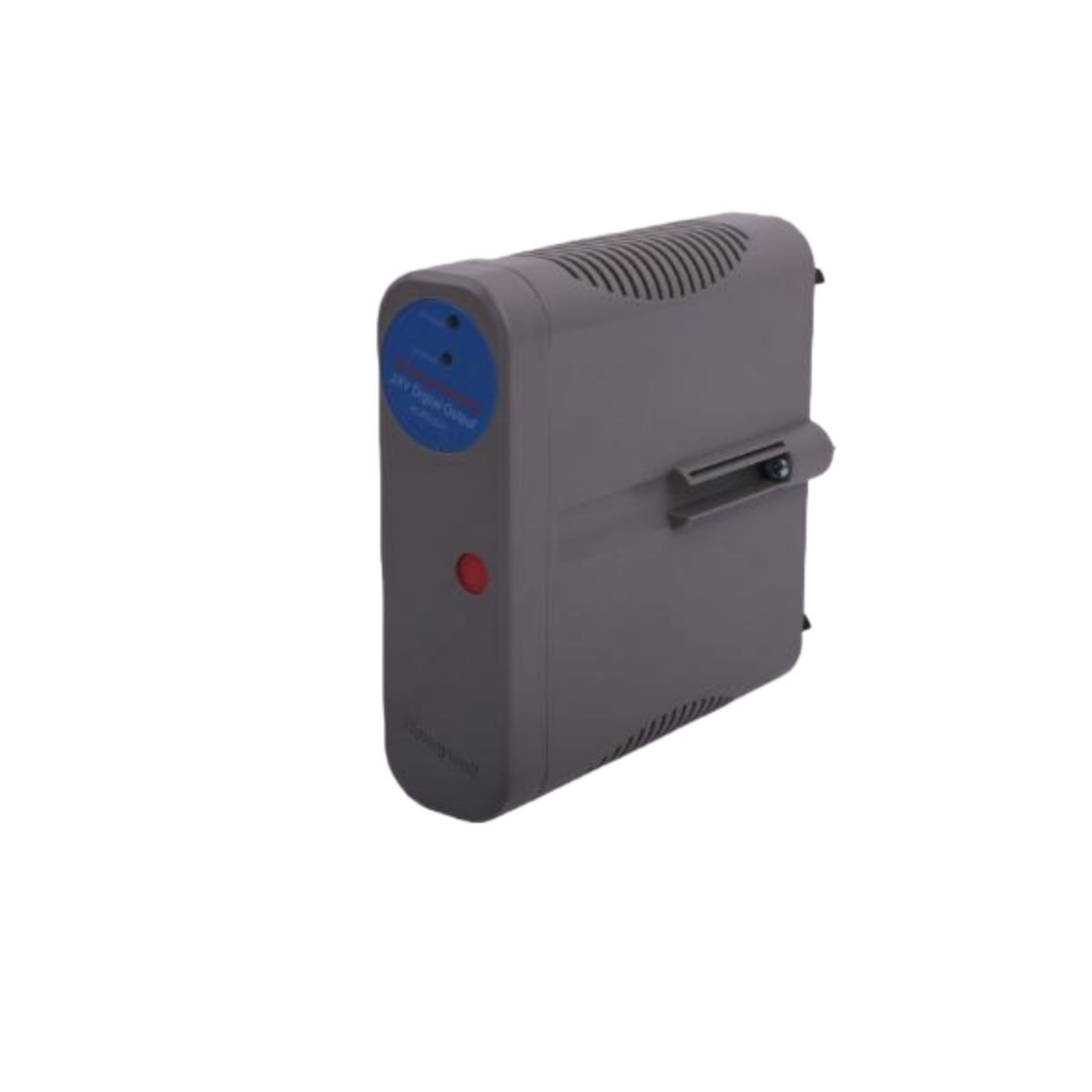

The Honeywell 51454472-175 functions as a high-performance digital output module for demanding industrial automation systems. This unit delivers precise and reliable control of eight independent output channels. Consequently, it ensures smooth operation for applications ranging from discrete manufacturing to process control.

Core Technical Specifications

We engineered the Honeywell 51454472-175 for seamless integration into Honeywell control systems, providing robust signal switching. The table below details its essential physical and electronic parameters:

High-Current Output Capability

This module features eight independent outputs, each capable of switching up to 2 Amps continuously. You can directly control solenoids, contactors, motor starters, and indicator lights without external relays. Therefore, the Honeywell 51454472-175 simplifies cabinet wiring and reduces component count.

Fast Response for Time-Critical Applications

The 51454472-175 delivers exceptionally fast response times with an output delay of just 0.5 milliseconds. Its update rate of 2 milliseconds ensures rapid system reaction to control commands. As a result, this module suits high-speed sorting, packaging, or any application requiring precise timing.

Wide Operating Range for Extreme Environments

Honeywell designed this digital output module to function reliably in harsh conditions, from -40°C to +70°C. It also withstands storage temperatures from -40°C to +85°C, making it suitable for global deployment. Its rugged construction ensures dependable performance in both freezing and high-heat industrial settings.

Comprehensive Protection and Diagnostics

Each output channel includes built-in short circuit protection, safeguarding the module and field wiring from faults. Green LED indicators for every channel provide immediate visual confirmation of output states. Consequently, technicians can quickly diagnose issues without needing a meter, reducing downtime.

Galvanic Isolation for System Integrity

The module provides 500 V rms of isolation between the field-side outputs and the logic-side circuitry. This isolation protects the main controller from voltage spikes or ground loops originating in the field. Hence, the Honeywell 51454472-175 enhances overall system reliability and uptime.
